GRIZZLY M550m

GRIZZLY M550m

PTO driven forestry mulcher for tractors between 100-250 HP.

Working width

Working width

up to 95 in
up to 2,410 mm
Power

Power

100-250 HP
74-184 kW
Weight

Weight

up to 4,850 lbs
up to 2,200 kg

Your Benefits

Strong performance

Strong performance

With the spring tension, the drive belts are in an optimum tension ratio and transmit the forces in the best possible way.

Efficient & powerful

Efficient & powerful

The counter blade concept prevents large pieces of wood from being drawn into the housing, blocking the rotor, improving power demand and shredding quality.

Flexible mounting & performance

Flexible mounting & performance

The close center of gravity improves handling, as fewer counterweights are needed on the tractor. The three-point attachment frame allows flexible mounting.

Forestry Mulcher

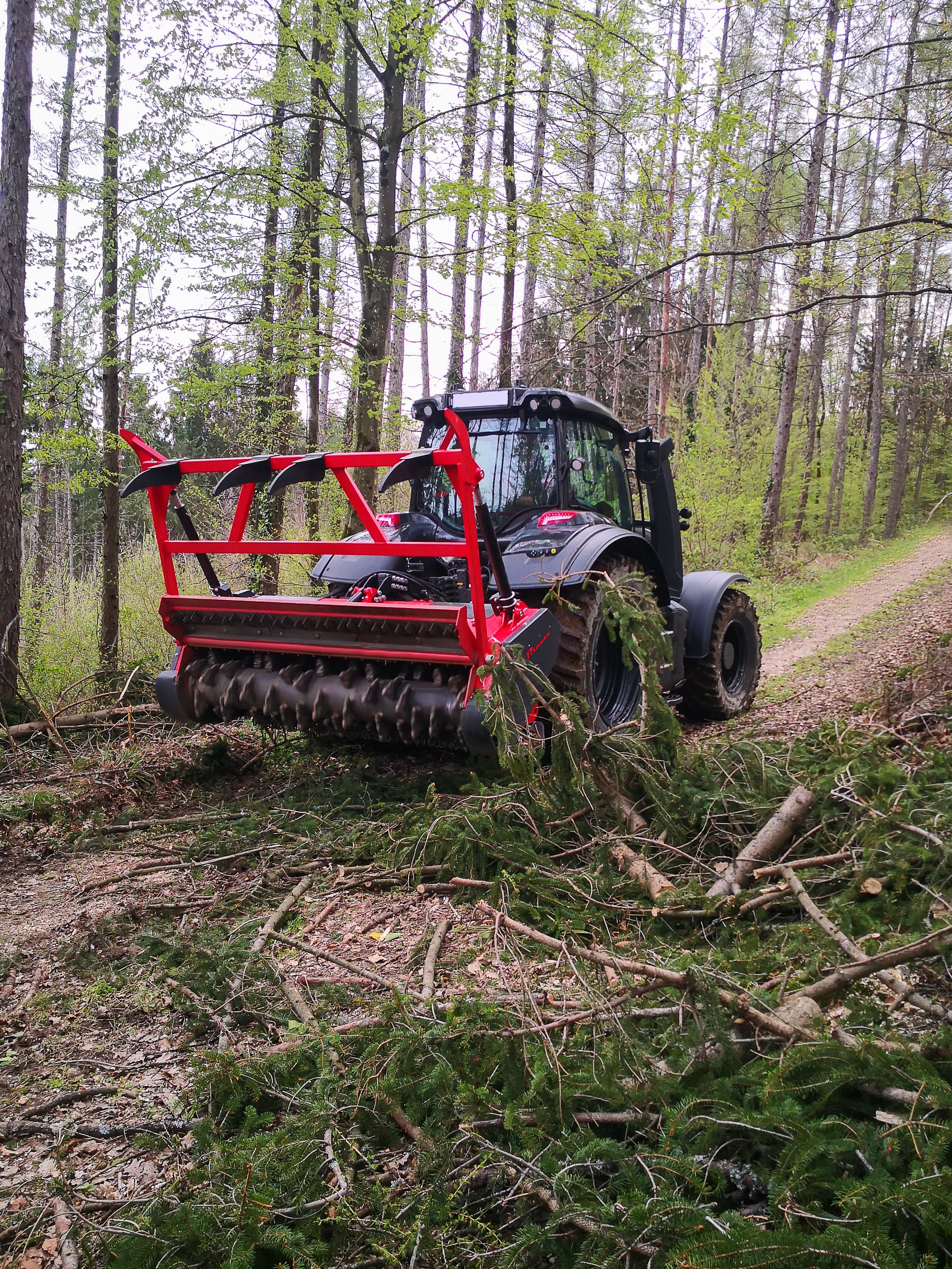

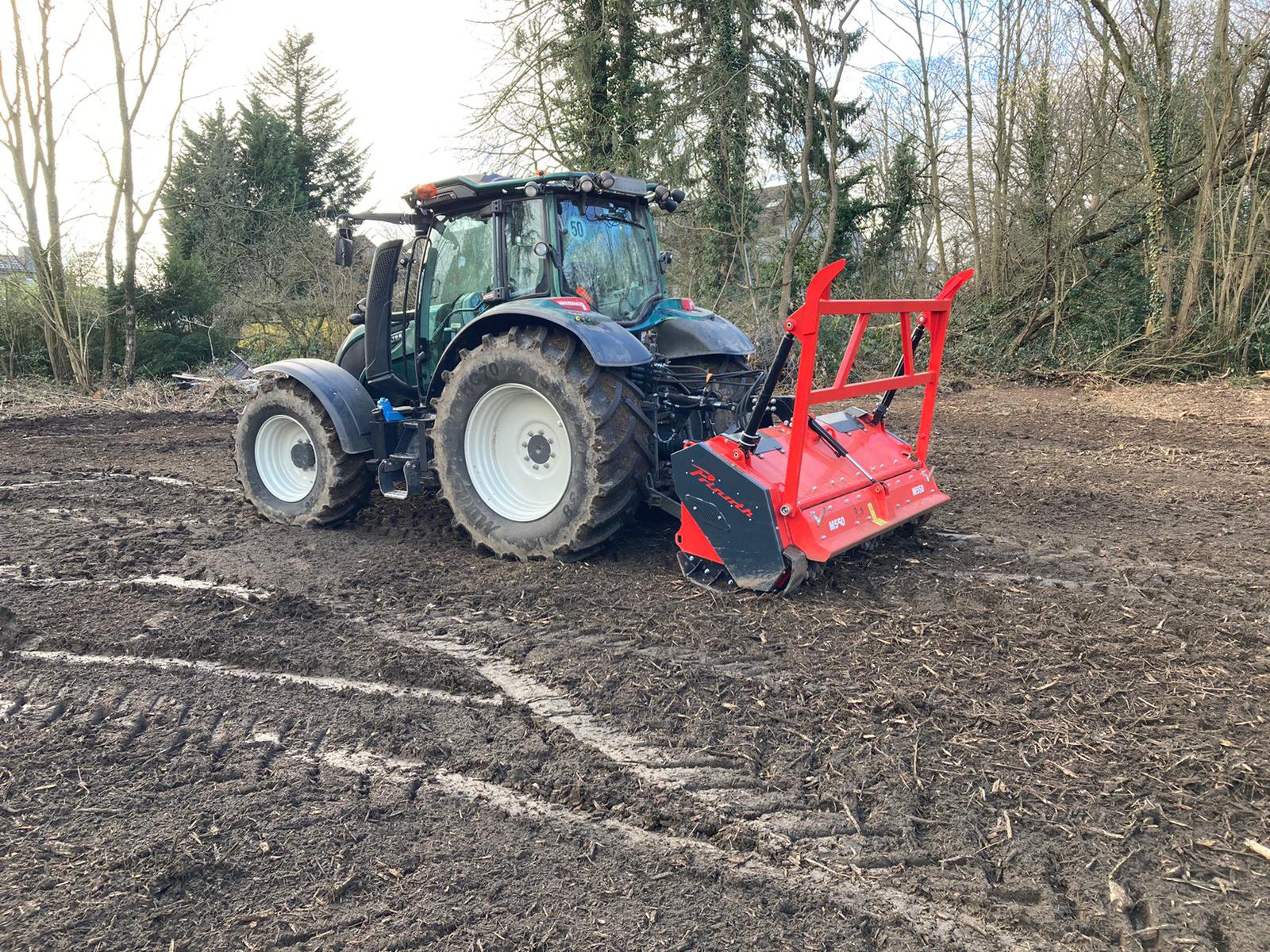

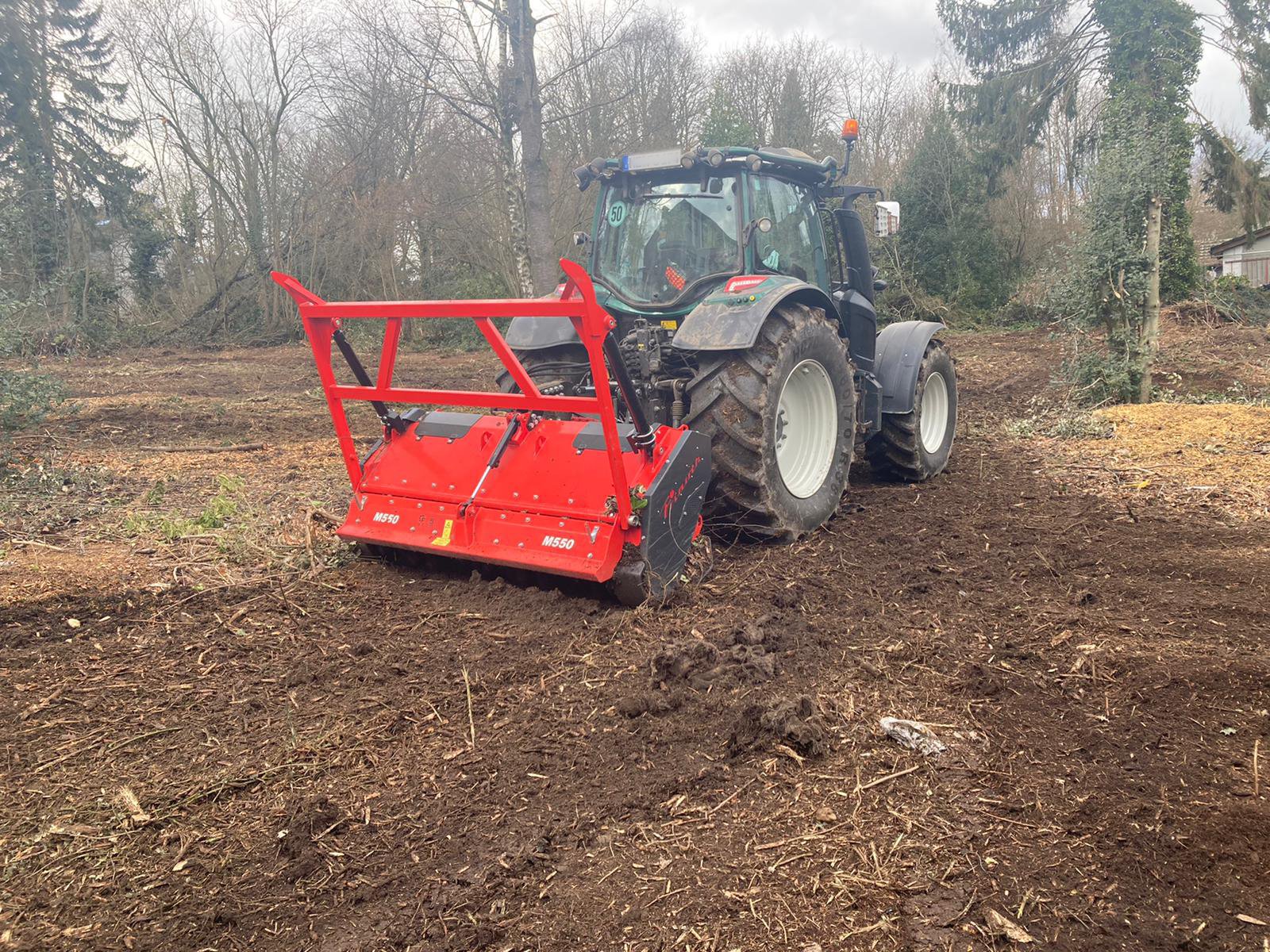

The Grizzly M550m is a PTO driven forestry mulcher and is excellent for tractors for the power class of 100 - 250 HP. This Mulcher is ideal for shredding branches and trees with a maximum diameter up to 30 cm (12 in).

Forestry Mulcher

Ideal for forestry work

The mulcher can be used universally and is ideal for mulching branches and trees up to 30 cm.

Features

The two-stage counter blades, made of highly wear resistant steel reduce wear and tear on the housing. The housing has bolted liners inside with counter blades in a systematic order, all made of highly wear resistant steel. Furthermore, there are additional counter blades in a horizontal row right underneath the flap where the material leaves.

The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.

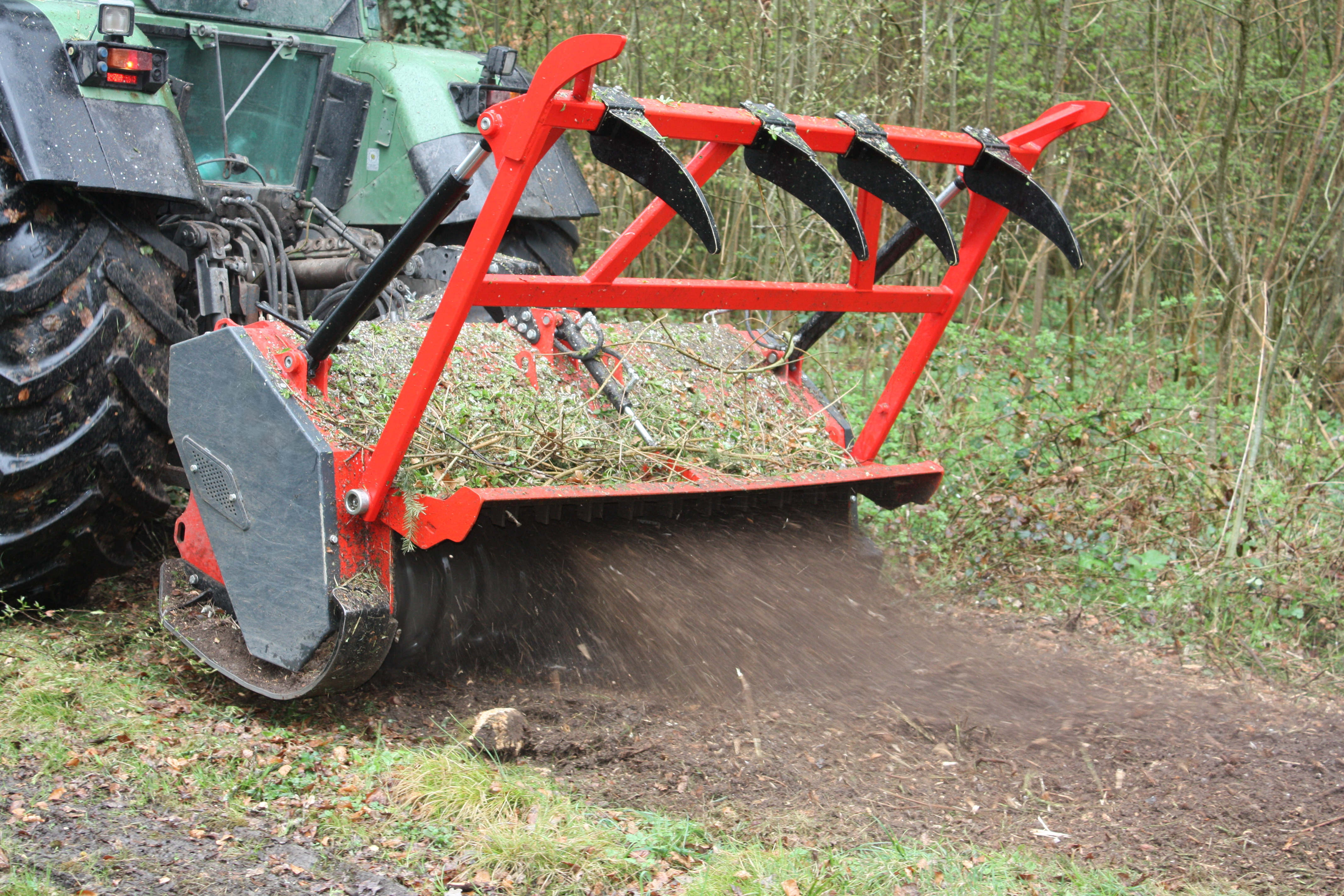

The push bar with four optional teeth guides taller material into the rotor in a targeted and safe manner. A fixed or a hydraulic push bar are available.

Proven rotor technology with various BCS- or UPTs possible for excellent shredding quality and best mulching results.

A powerful two sided drive (up to 250 HP) is available to bring the power to the rotor.

Due to the relatively vertical position, the center of gravity of the mulcher is very close to the tractor.

For different applications there are standard or deep milling skids available.

The hydraulic flap is optional equipped with counter blades for additional shredding and perfect mulching results and provides extra protection while mulching.

The patented W-Kinematic keeps the angles equal to prevent damage to the PTO shaft and supports an ideal adaptation to the conditions of the ground for an optimal lifting height and keeps the cardan-shaft in horizontal position.

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

For more safety the mulcher can be equipped with friction clutches in the side drive shaft.

The chain curtain provides extra protection while mulching.

Customized interfaces for simple mounting / demounting on various carriers with different options available.

Supporting legs are available for a stable and safe stand on the ground and during transport.

Technical data

Download (PDF)
  • Working width

    up to 95 in
    up to 2,410 mm
  • Power

    100-250 HP
    74-184 kW
  • Weight

    up to 4,850 lbs
    up to 2,200 kg
  • Rotor diameter

    21.6 in
    550 mm
  • Tools

    52 x UPTs / 56 x BCS / 60 x BCS / 64 x BCS
    52 x UPTs / 56 x BCS / 60 x BCS / 64 x BCS
