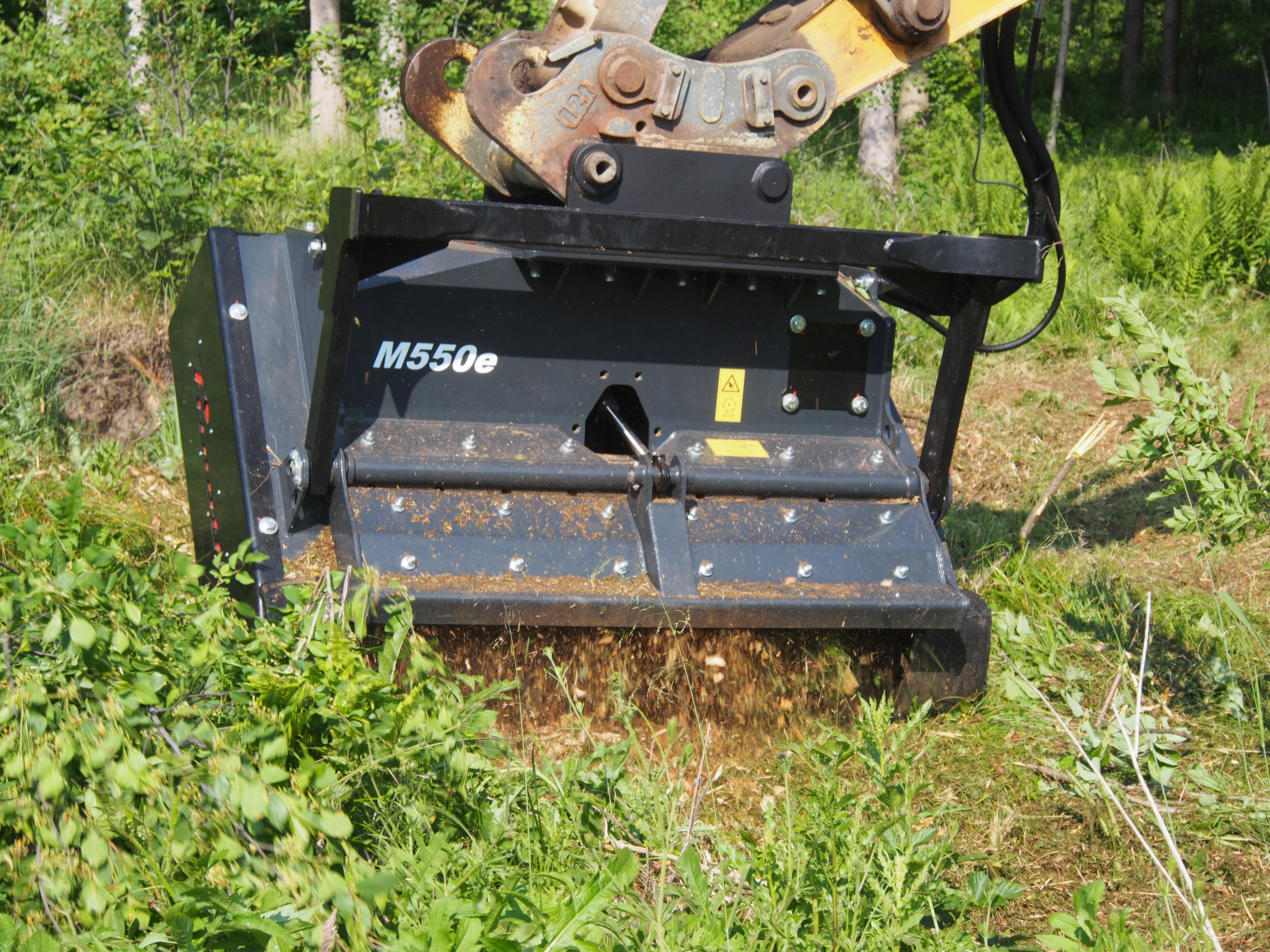

GRIZZLY M550e-1300
Forestry mulcher for excavators from 21 to 32 t.
Working width
Total width
Weight
Perfect for forestry applications

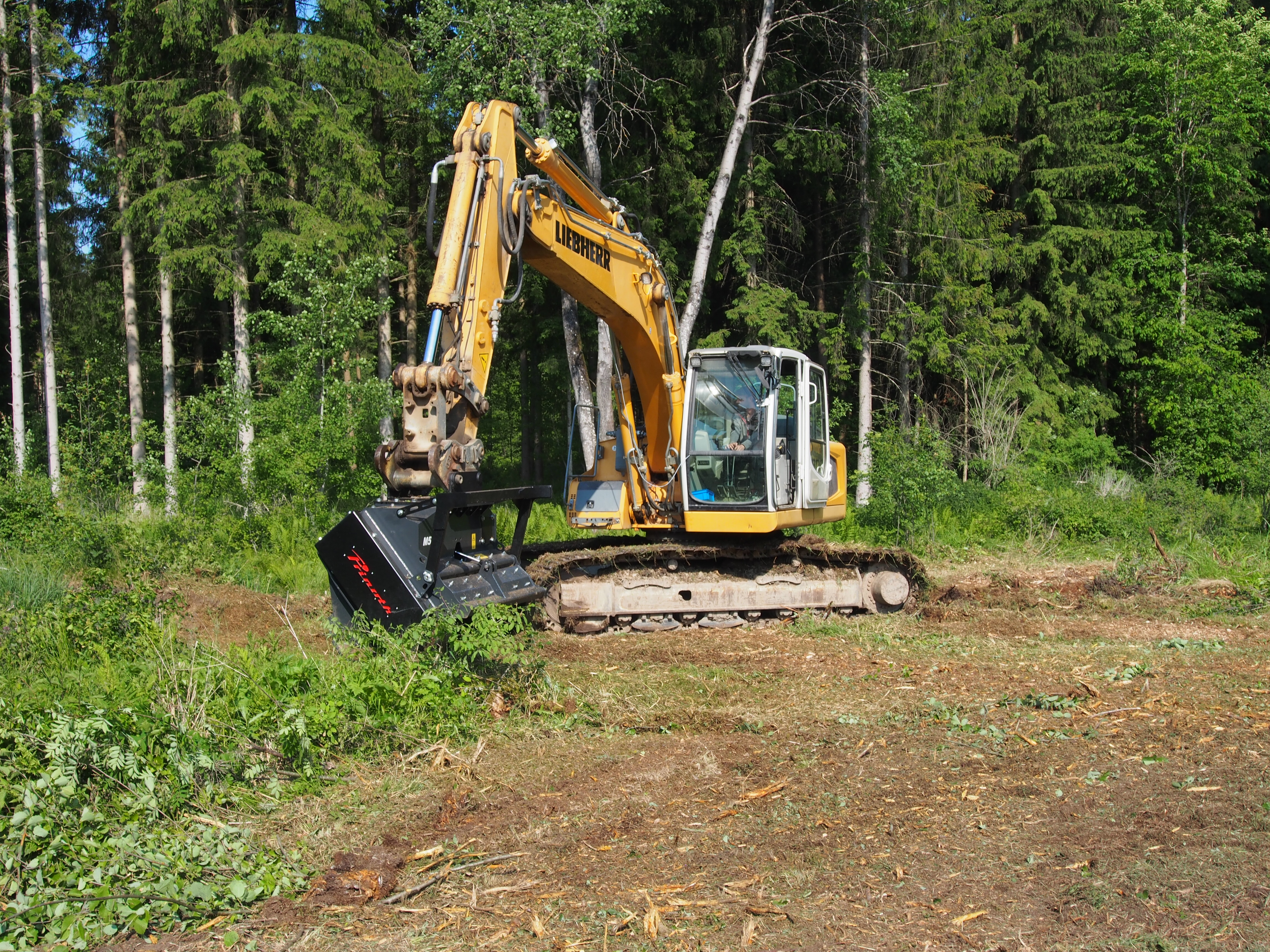

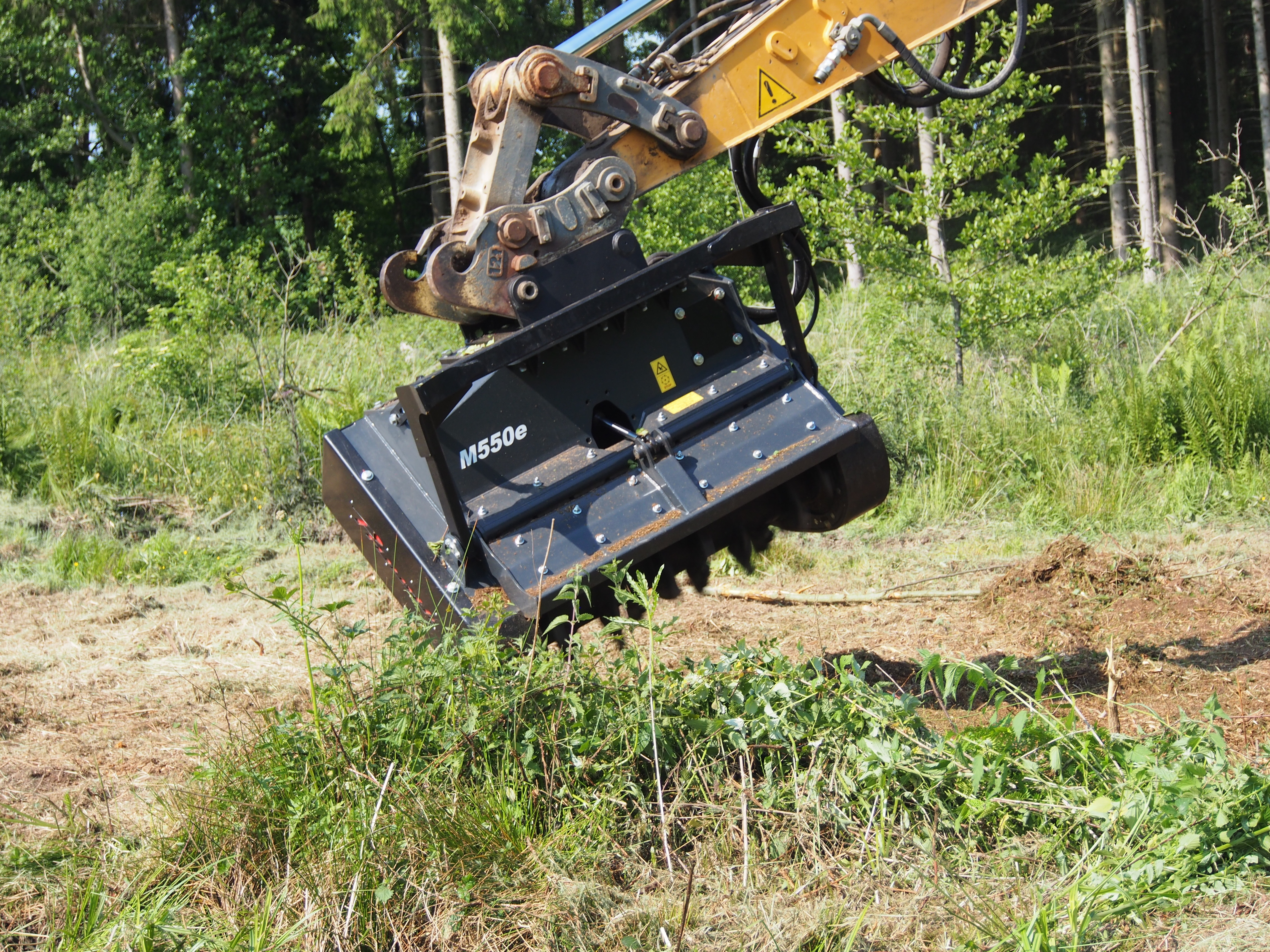

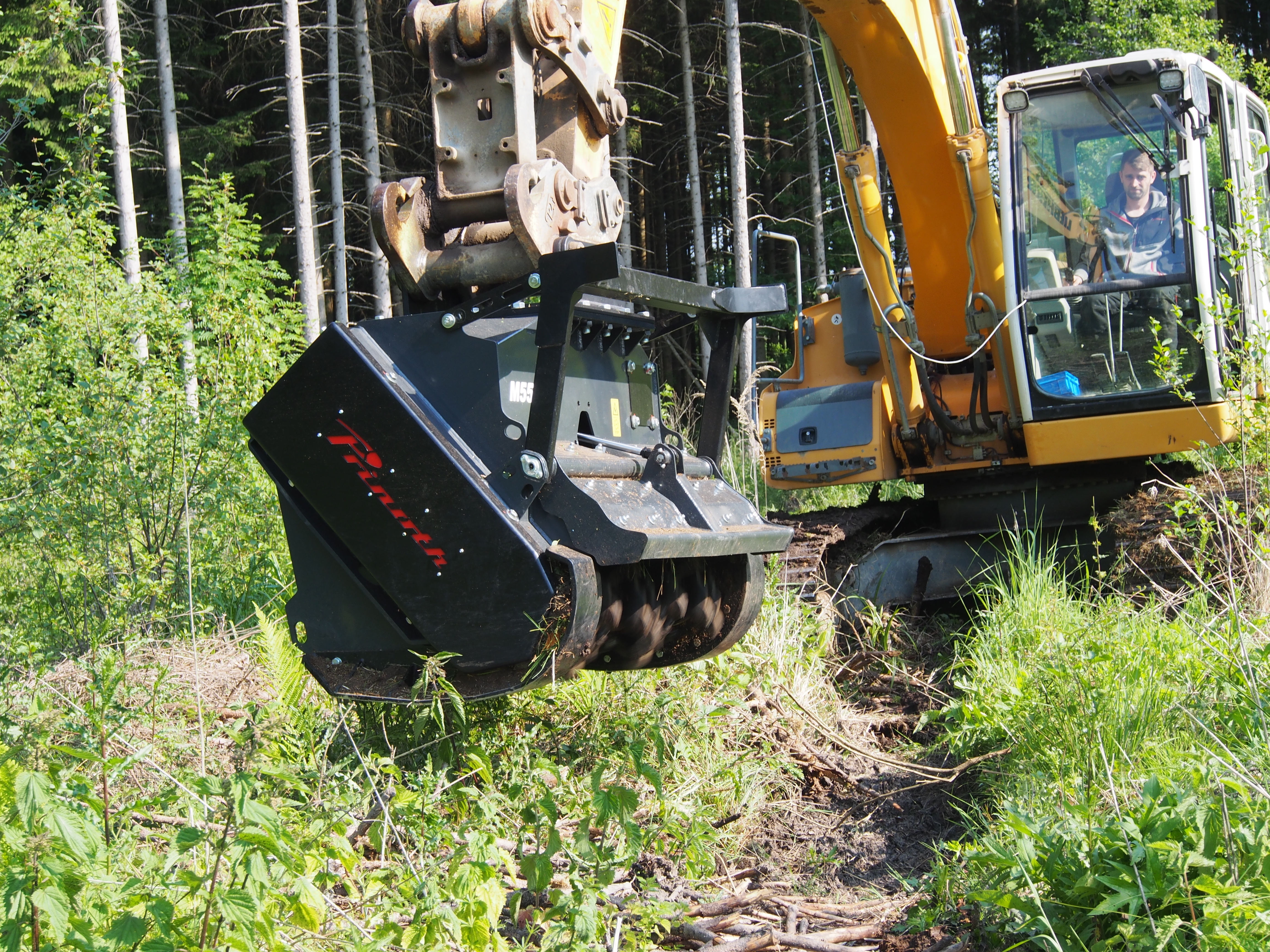

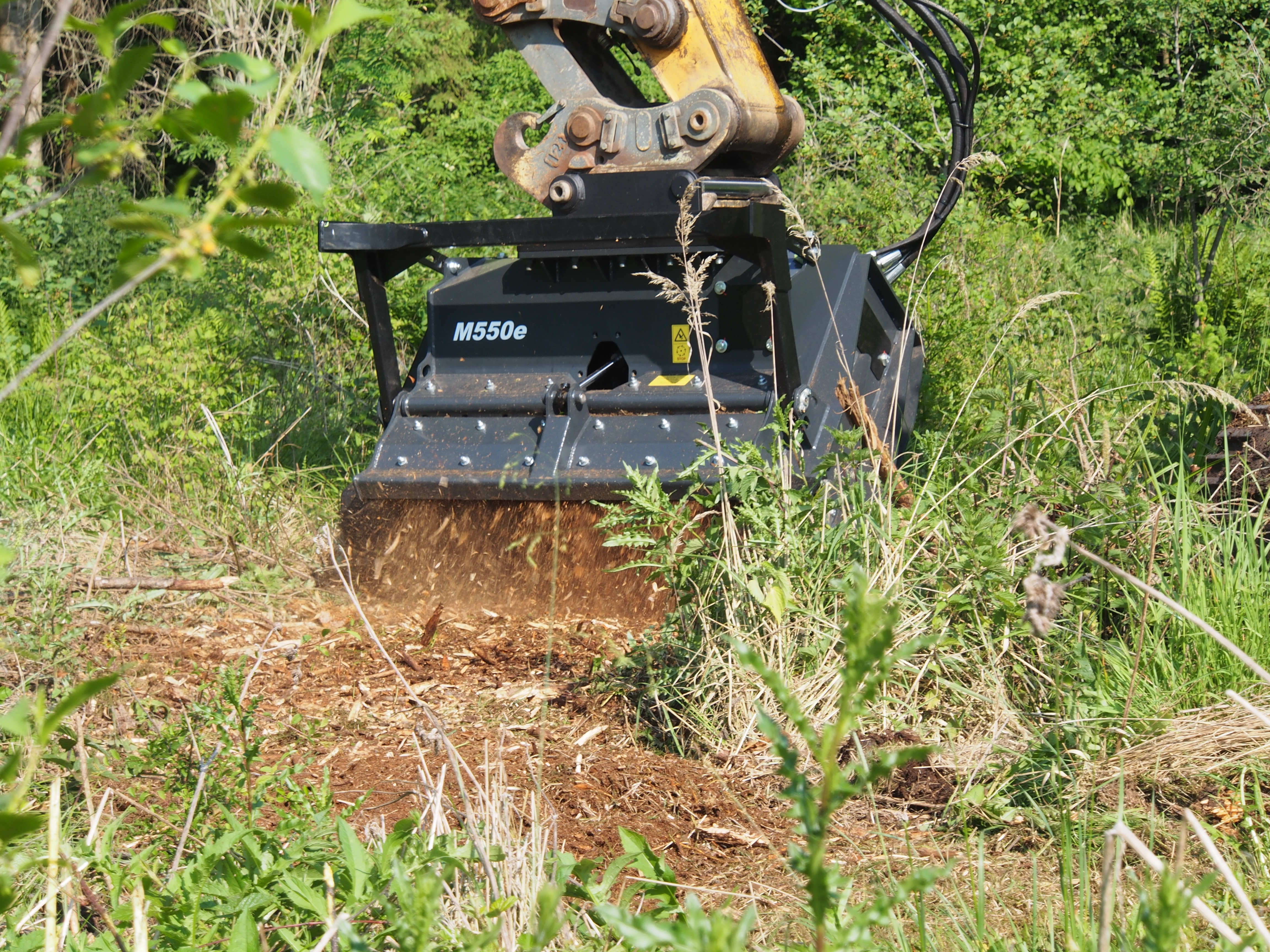

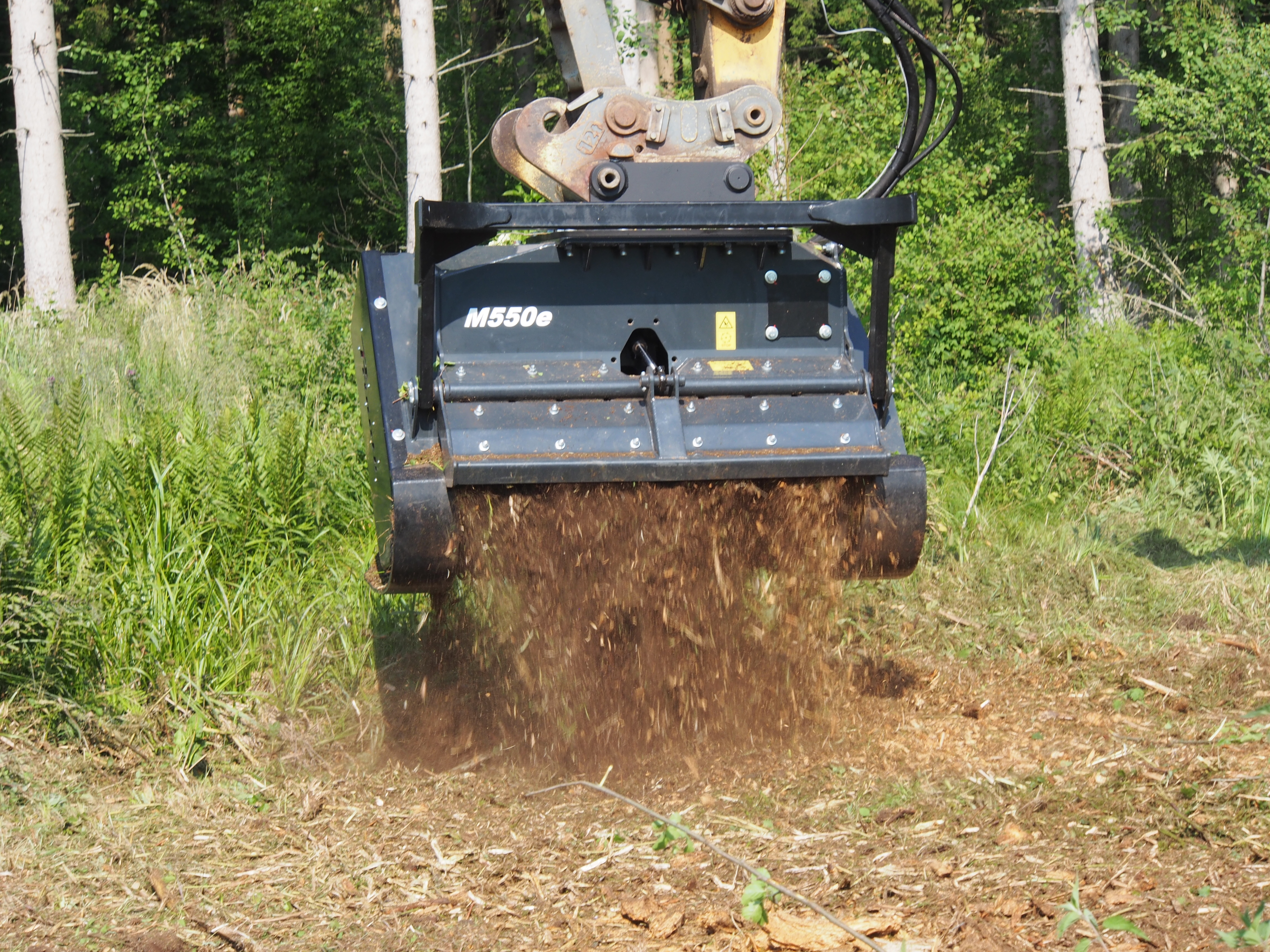

The M550e-1300 is a strong forestry mulcher and compatible for 21 – 32 t excavators, equipped with a powerful 115 or 170 cc hydraulic motor to cover the flow range of the excavators to achieve the best performance for perfect mulching results. The mulcher can be used universally and is ideal for mulching trees and brush up to 30 cm.
Features
Powerful and high efficiency 115 or 170 cc HD - variable displacement motor for maximum performance.

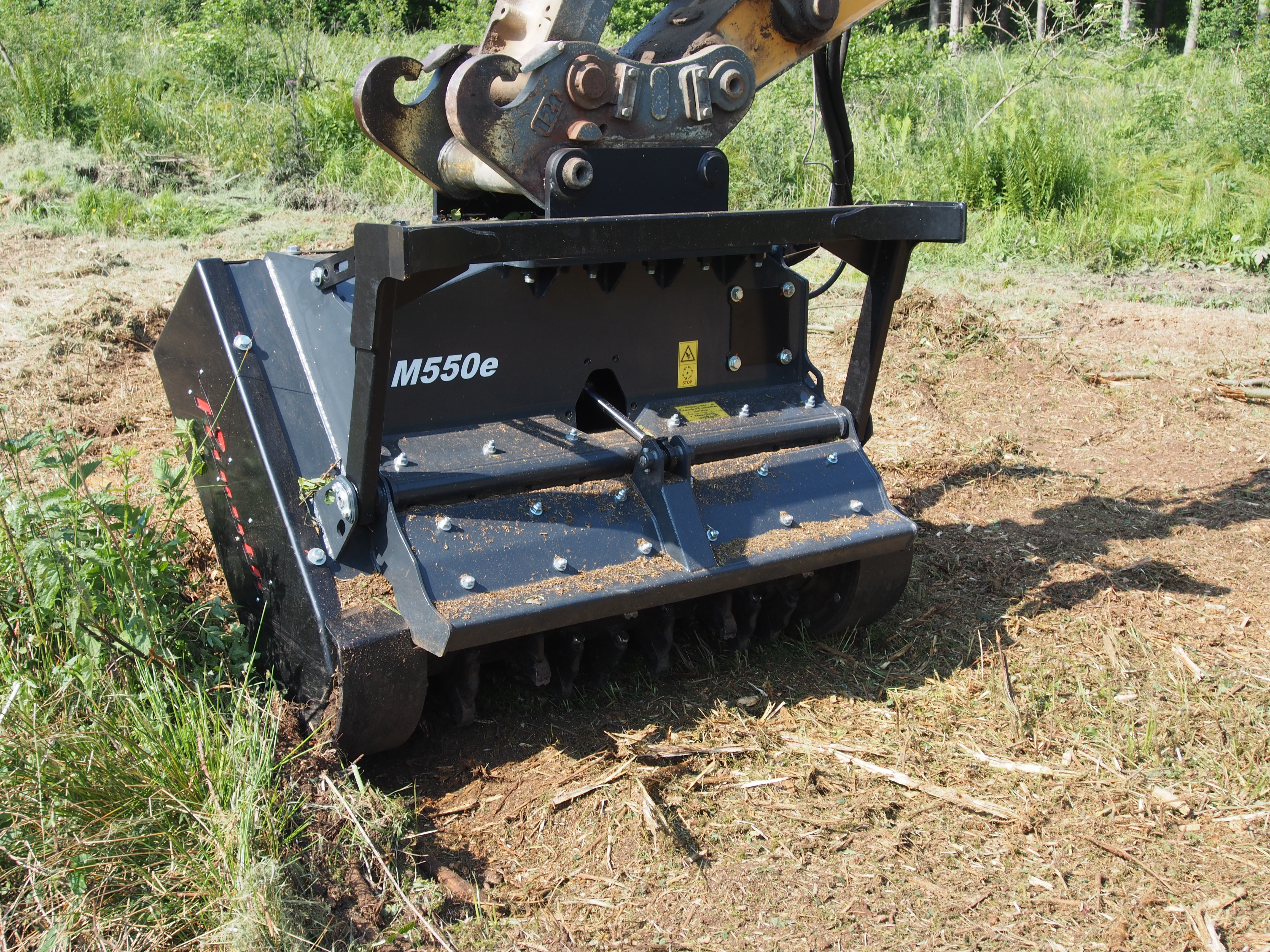

The optional push bar helps to guide the material which has to be mulched. It is fix mounted on the flap side.

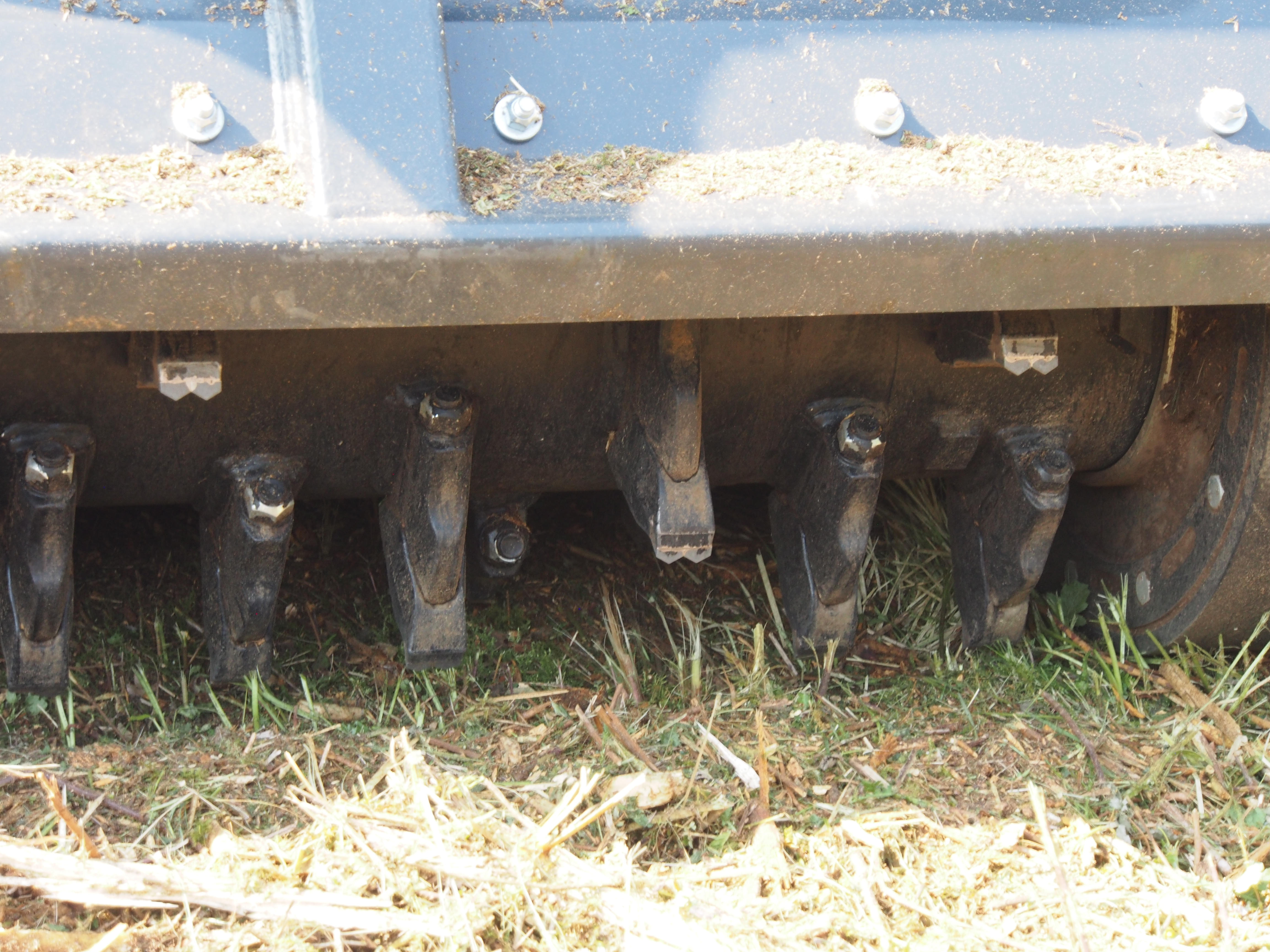

Rotor technology with various BCS- or UPTs-tools possible for best mulching result.
Customized interfaces for simple mounting / demounting on various carriers with different options available.
The low maintenance belt system effectively prevents slippage.
The chain curtain provides extra protection while mulching.
Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.
The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.
Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.
Technical data
Download (PDF)
-
Working width
51.2 in1,300 mm -
Total width
66.1 in1,680 mm -
Weight
3,417 – 3,748 lbs1,550 - 1,700 kg -
Rotor diameter
21.7 in550 mm -
Volume flow
30 – 37 gpm150 – 170 l/min -
Tools
28x BCS or 36x UPTs28x BCS or 36x UPTs
-
Height (without push bar)
45.0 in1,141 mm -
Height (with push bar)
48.7 in1,236 mm -
Depth (without flap)
1,054 mm41.5 in -
Depth (with flap)
1,215 mm47.8 in
