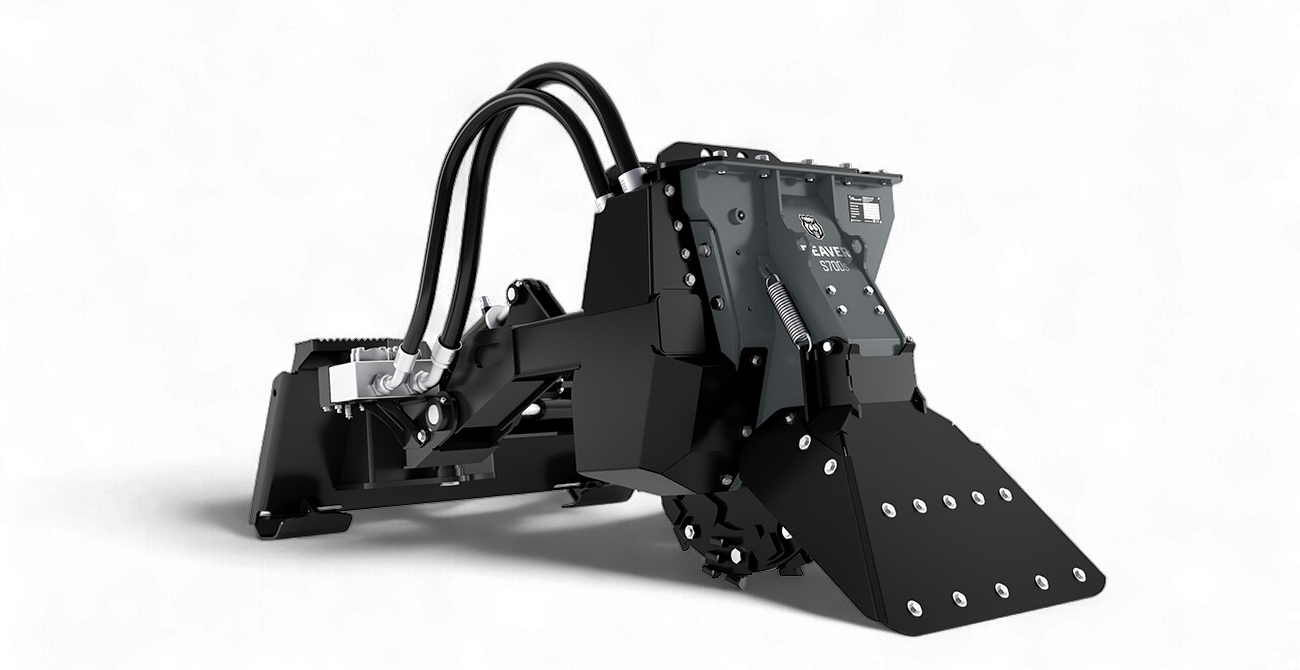

BEAVER S700s

BEAVER S700s

Stump grinder for skid steer loaders.

Grinding wheel width

Grinding wheel width

4.48 in
114 mm
Grinder diameter

Grinder diameter

27.6 in
700 mm
Power

Power

up to 120 HP
up to 120 HP

Your Benefits

Compact and efficient

Compact and efficient

The removal of stumps and rootstocks is simplified in every situation - best results guaranteed due to the compact design.

Easy handling & flexible mounting

Easy handling & flexible mounting

Thanks to the gear motors, no drain line is required. Low weight and universal mounting plate for a wide range of carriers. Ideal for use in the rental fleet.

Low maintenance effort

Low maintenance effort

The direct drive significantly reduces the number of wearing parts and minimizes the maintenance effort.

Stump grinder for skid steers

The Beaver S700s is designed for skid steer loaders up to 120 HP.

Stump grinder for skid steers

Stump grinder

Perfect for clearing soils with large tree stumps or rootstocks. A powerful grinding wheel with aggressive tools swings over the stump and mills it away to depth.

Video Thumbnail is generating

Features

The machine can be easily mounted to various carriers via an quick-attach plate.

The rubber guard provides extra protection while removal of stumps, especially important in residential areas.

There are different ways to control the tilt and swivel function, either the hydraulic connections of the carrier are used or the control is done via a separate electric joystick.

Three hydraulic motor options (40, 45, 73 cc) to cover the complete volume flow range.

The milling wheel has ten tool holders (plates), on each are four cutting teeth (BFZ 60) mounted, five further milling teeth are mounted to the edge. The milling wheel is not completely enclosed by the housing and can thus easily penetrate the ground.

The BFZ 60 cutting tool is a powerful and durable milling tool especially designed for the stump grinding application.

A back pressure valve is available as an option for additional protection of the machine.

Technical data

Download (PDF)
  • Grinding wheel width

    4.48 in
    114 mm
  • Grinder diameter

    27.6 in
    700 mm
  • Power

    up to 120 HP
    up to 120 HP
  • Volume flow

    16 - 37 gpm
    60 - 140 l/min
  • Tools

    45 teeth
    45 teeth
  • Weight

    1,146 lbs
    520 kg
