JARRAFF Mountable

JARRAFF Mountable

The turnkey solution to meet your carrier needs - just add power.

Weight

Weight

6,270 lbs
2,844 kg
Total width

Total width

73 in
1.86 m
Total length

Total length

40 ft, 5 in
12.3 m

Your Benefits

Maximum Safety

Maximum Safety

ROPs /FOPs certified cab provides the operator with the highest level of safety. ANSI 92.2 Category C dielectric compliance gives safety around power lines.

Versatile mountable & Efficient

Versatile mountable & Efficient

The open concept design allows user to interface with a variety of base carriers. Jarraff Trimmer requires less manpower and higher production rate.

Fast & Precise

Fast & Precise

Precision cutting with a rotating saw head to achieve all angles even at maximum height. A quick through cut action prevents peeling backs and hanging limbs.

Fast. Safe. Efficient.

With its long extension arm and the saw blade that can be swivelled 180° at the end, the telescopic arm can easily reach and cut branches up to 20 cm in diameter at a height of up to 23 m. Maximize work safety and productivity compared to traditional right-of-way maintenance methods, all while operating from the comforts of a climate-controlled cab.

Features

The Jarraff Truck Mount unit is bolted to a modular base plate for shipping purposes. It can easily be fastened via the slewing ring bearing to the base plate on the carrier side with accommodating bolt pattern.

180° rotatable 610mm carbide-tipped saw blade at 3,000 RPM.

Telescoping di-electric fiberglass boom for a max operating height of up to 23 m. ANSI 92.2 Category C dielectric compliance provides additional safety around power lines.

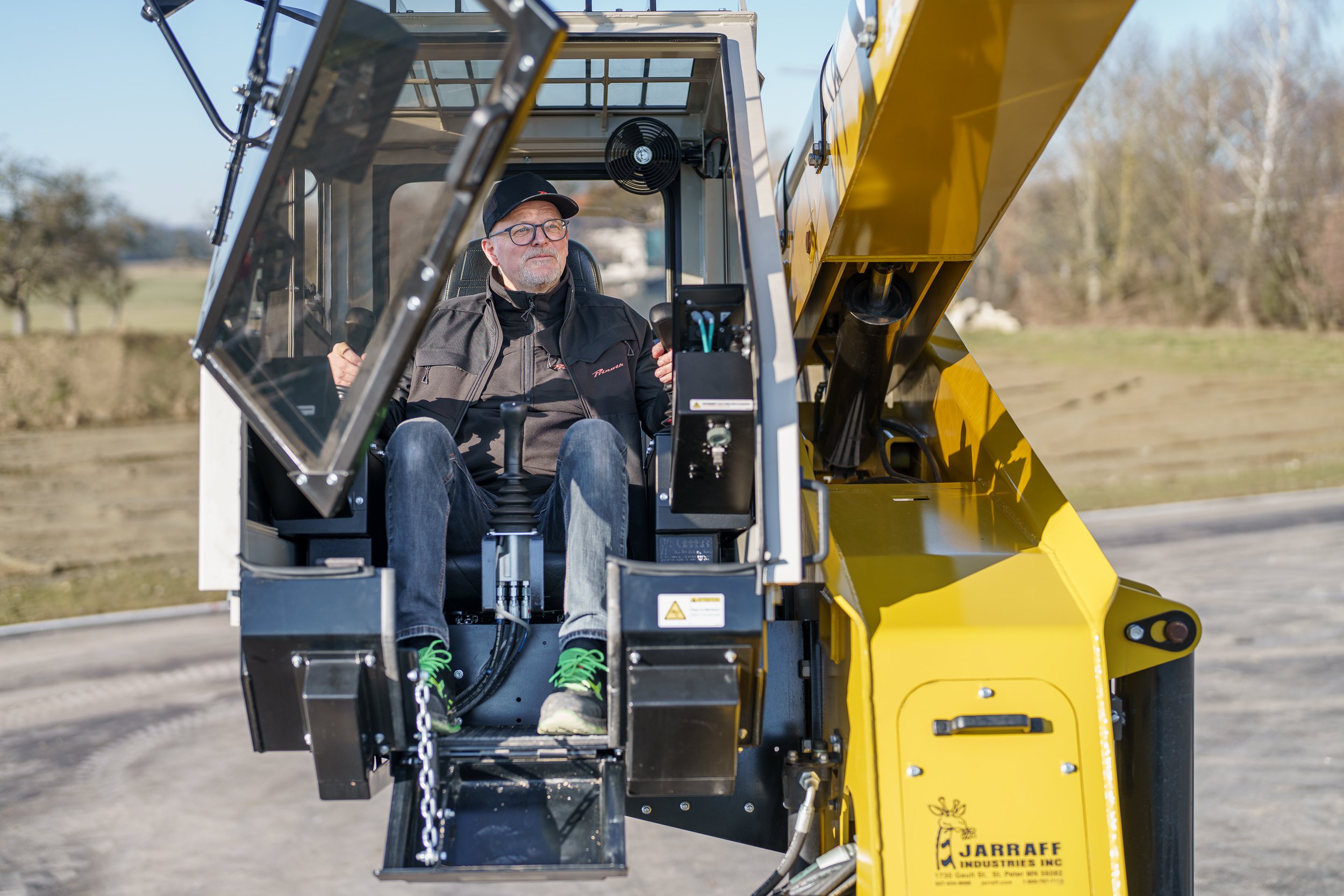

The operator can work comfortably and independently of the weather in the cabin complying the highest safety standards (ROPS/FOPS/OPS).

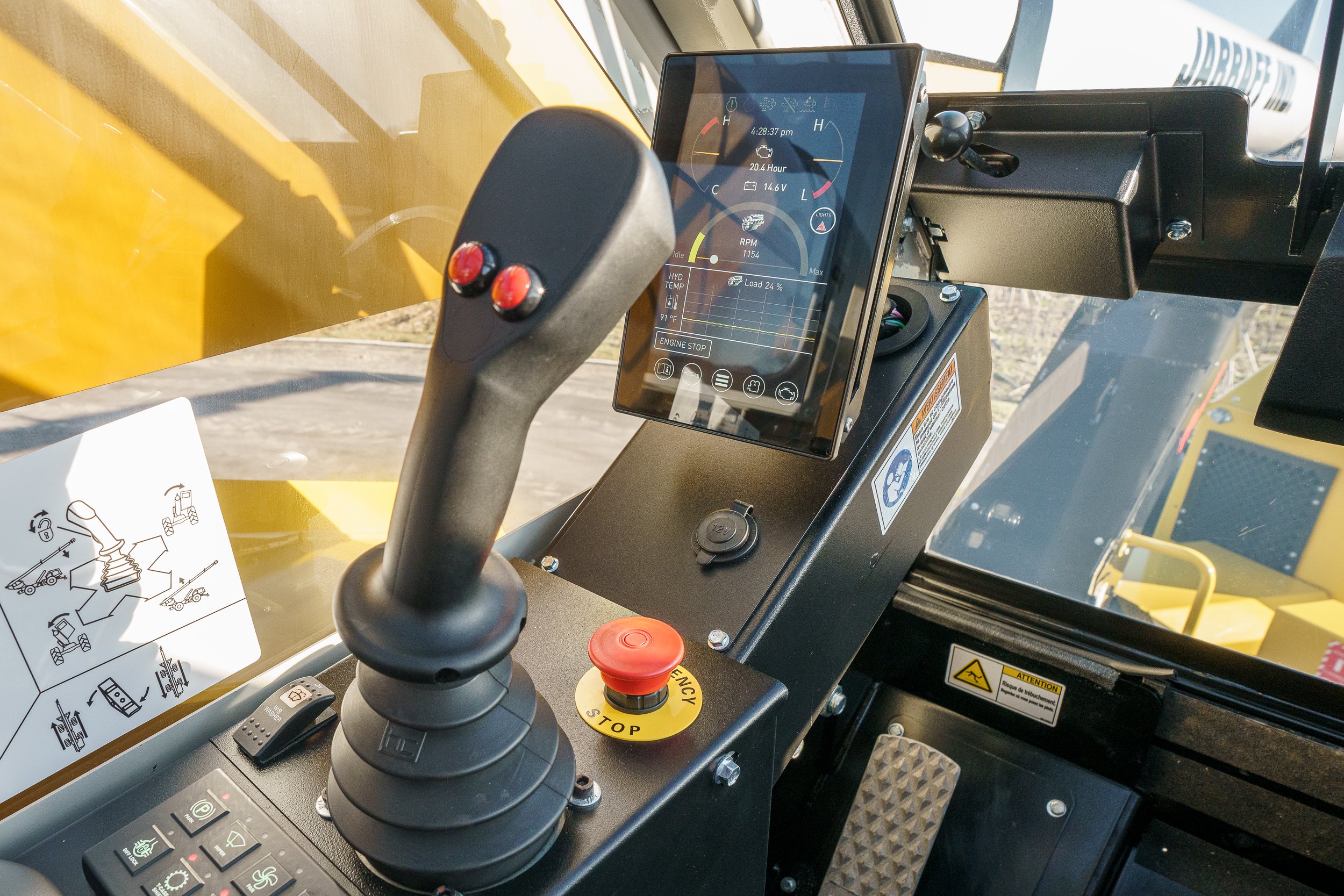

The user passcode display offers push-to-start and important operating and engine monitoring in real-time.

With three four-way joysticks, the operator can easily maneuver the Jarraff, the boom and position the saw blade.

Technical data

Download (PDF)
  • Weight

    6,270 lbs
    2,844 kg
  • Total width

    73 in
    1.86 m
  • Total length

    40 ft, 5 in
    12.3 m
  • Height

    92 in
    2.34 m
  • Working range

    0-75ft
    0- 23 m
  • Saw blade

    Ø 610 mm cuts at 3,200 min-1
    Ø 610 mm cuts at 3,200 min-1
  • Saw blade rotation

    180°
    180°
  • Transmission

    Hydraulic transmission
    Hydraulic transmission
  • Boom with cabin

    360° rotation & 35° swiveling sidewise
    360° rotation & 35° swiveling sidewise
