GRIZZLY M550h

GRIZZLY M550h

Hydraulic driven mulcher for hydraulic carriers with a volume flow from 150-400 l/min.

Working width

Working width

up to 95 in
up to 2,410 mm
Total width

Total width

up to 110 in
up to 2,800 mm
Weight

Weight

up to 5,511 lbs
up to 2,200 kg

Your Benefits

Universal & Reliable

Universal & Reliable

Powerful mulcher with universal adapter plate (interface) for customized attachment options, reliable in a wide range of applications and areas.

Powerful drive

Powerful drive

Powerful dual drive with poly belt and two variable HD-displacement motors for maximum performance available.

Best mulching results

Best mulching results

The housing is equipped with wear-resistant bolted liners with exchangeable counter blades to provide additional shredding for best mulching results.

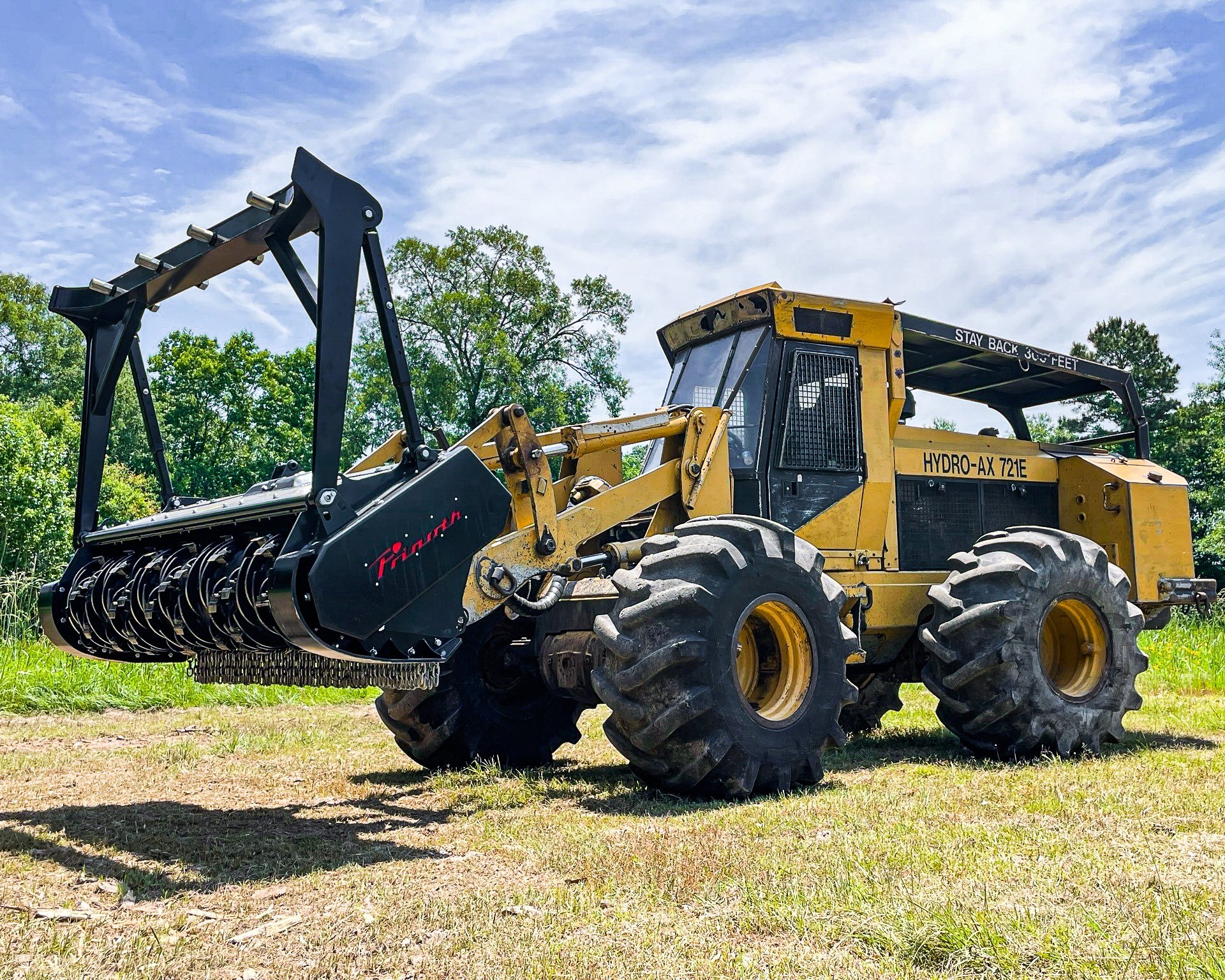

Mulcher for hydraulic carriers, Ideal for medium heavy applications

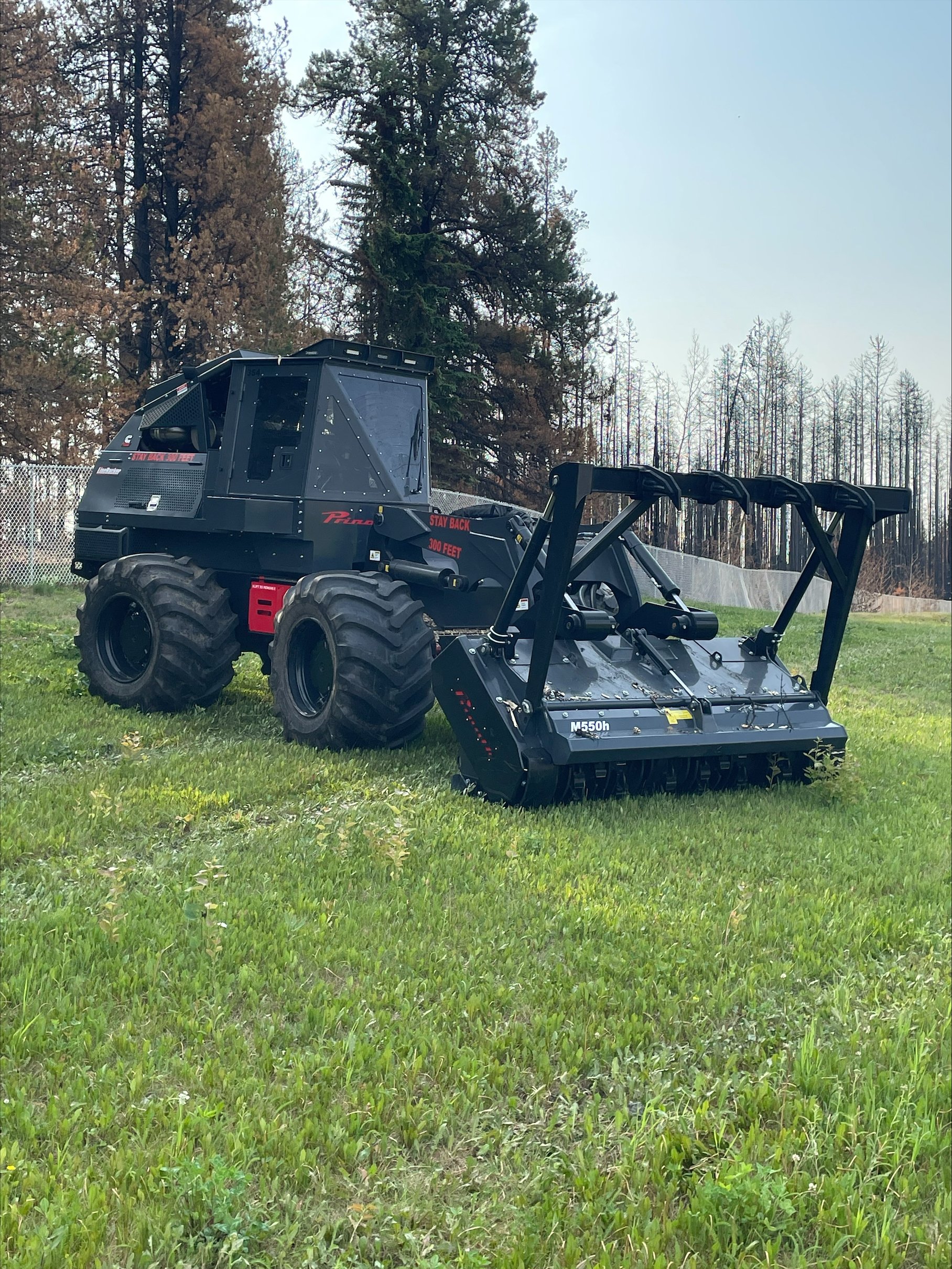

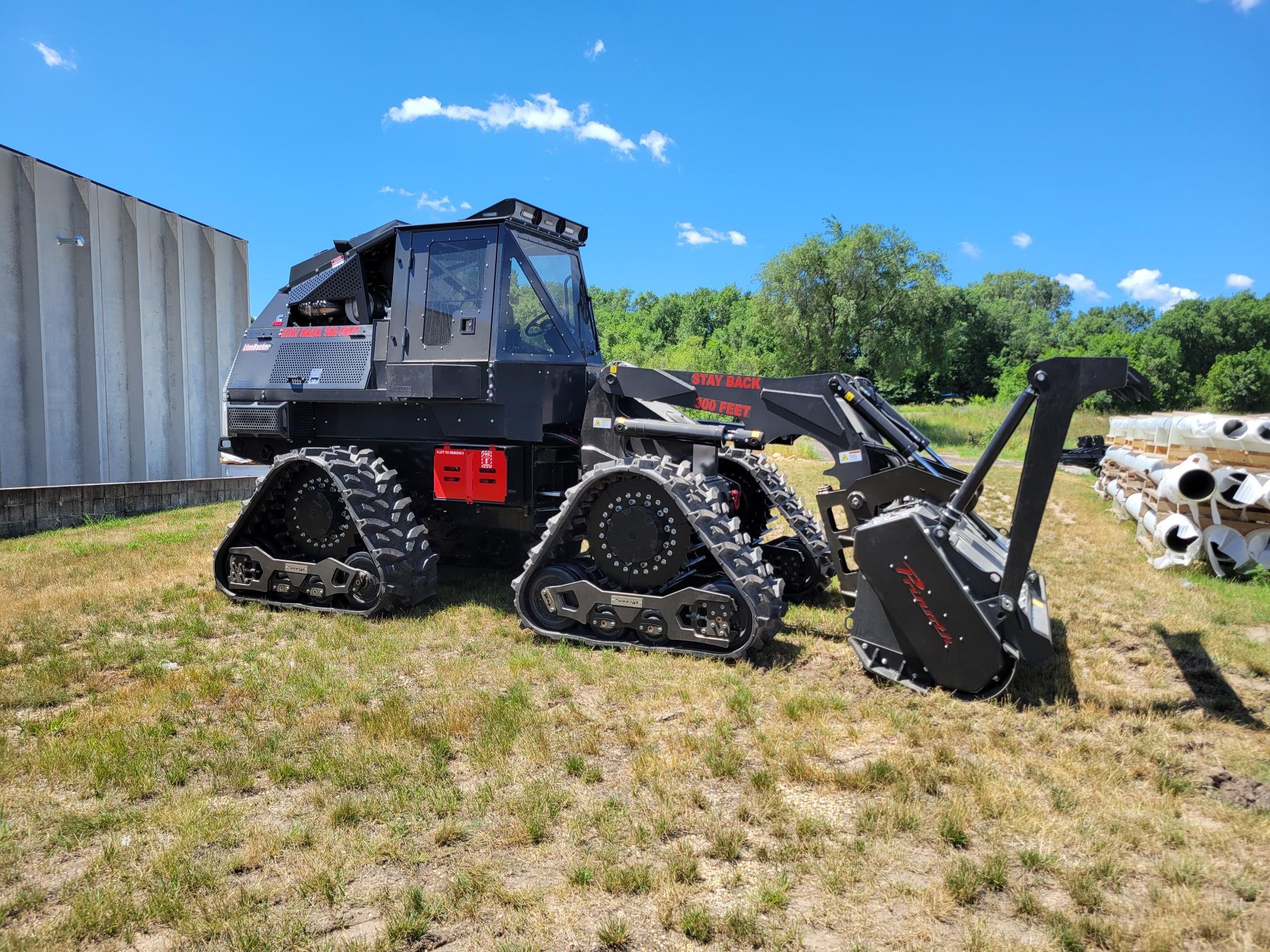

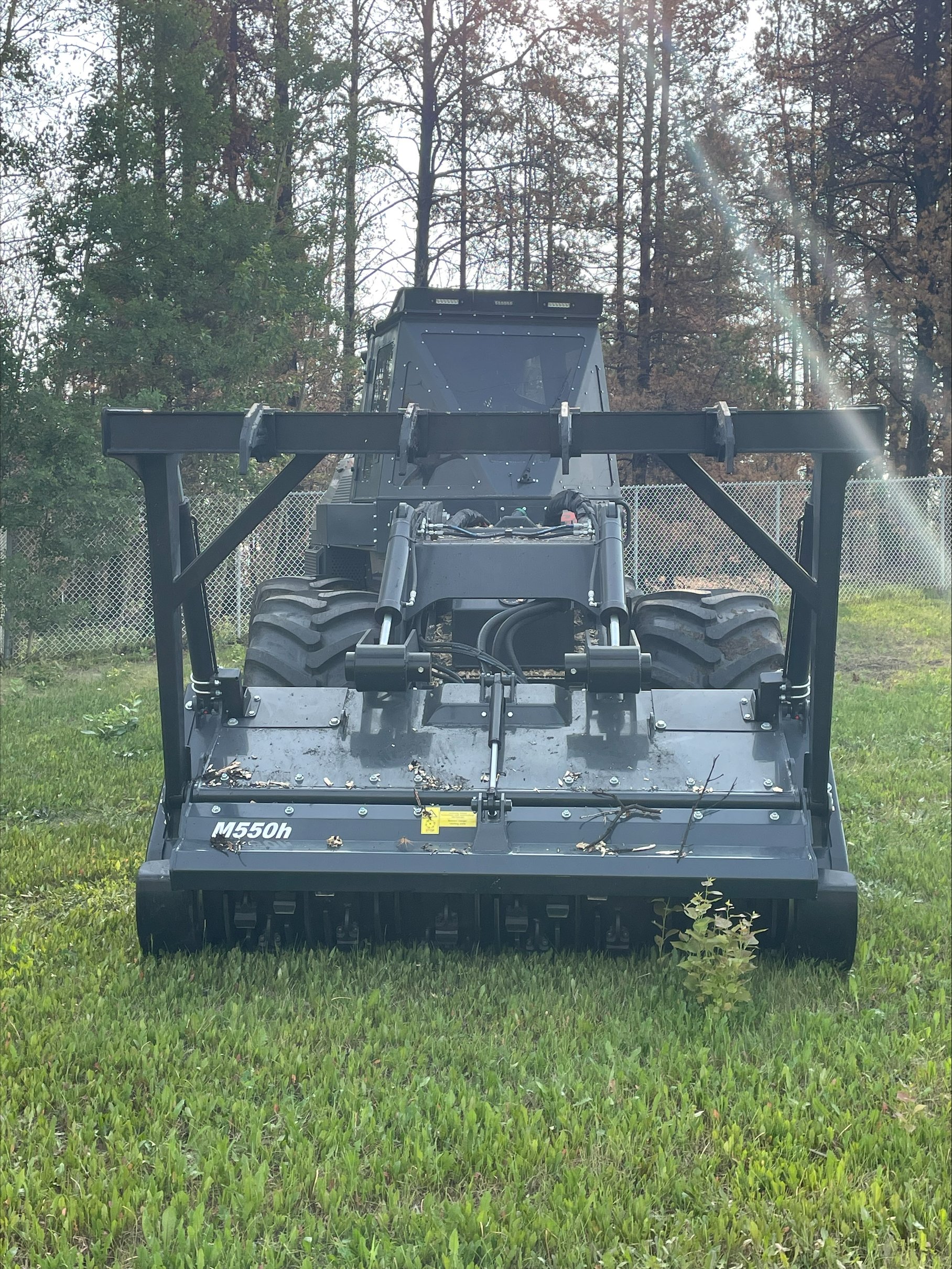

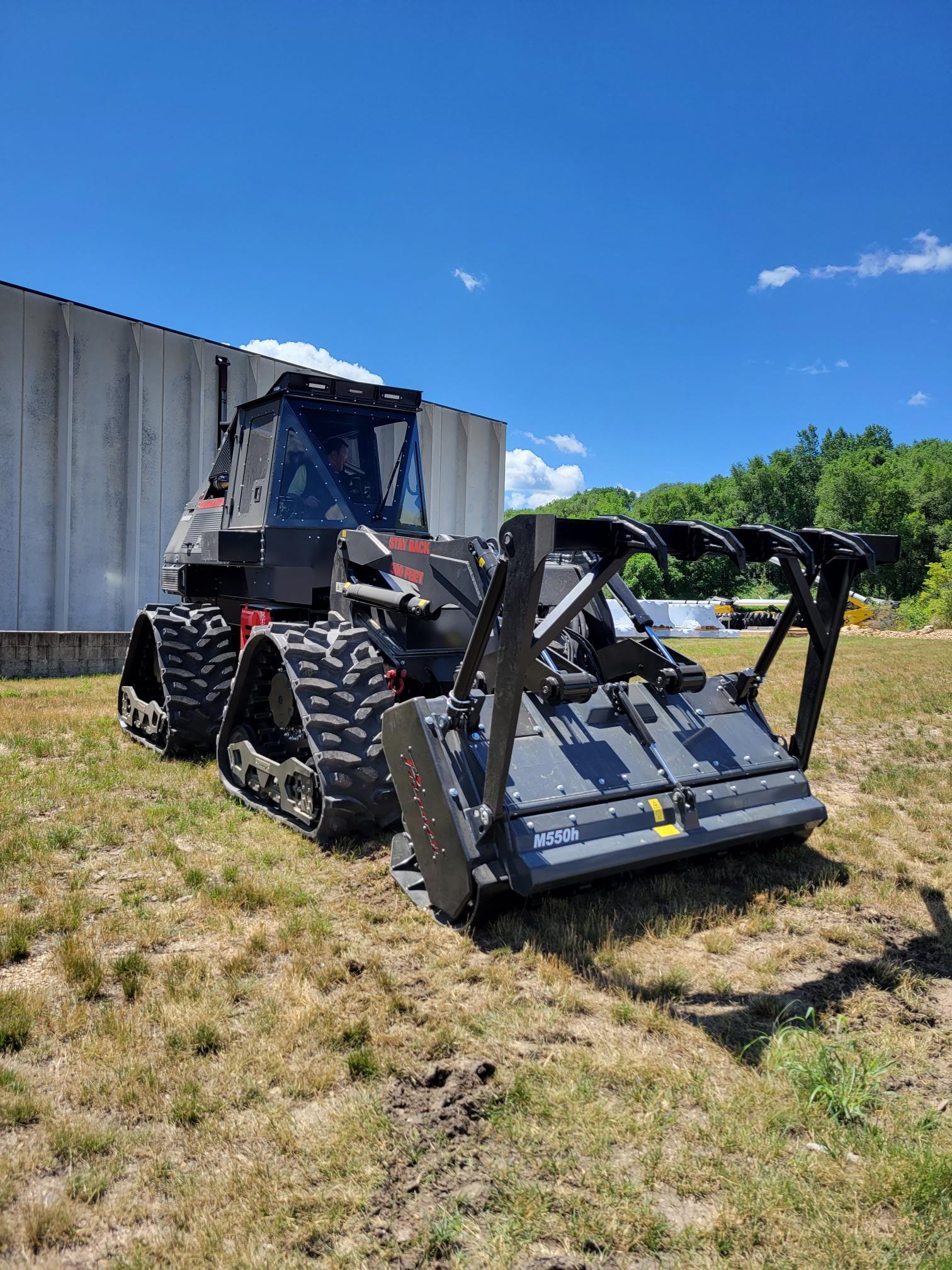

The Grizzly M550h is a hydraulic driven mulcher and is excellent for carrier vehicles with a volume flow of 150-400 l/min (40-106 gpm). It is ideal for shredding branches and trees. The mulcher can be used universally and is ideal for mulching branches and trees up to 35 cm. Often used in combination with the T-REX.

Features

The push bar guides taller material into the rotor in a targeted and safe manner. It is available in a fixed or hydraulic version, with pins or teeth.

Customized interfaces for simple mounting / demounting on various carriers with different options available.

For different applications there are standard or deep milling skids available.

Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.

The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.

BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.

Rotor also available with UPTs tools. Maximum reliability, built against highest impacts and loads.

Powerful and high efficiency dual drive with 115 cc or 170 cc HD - variable displacement motors for maximum performance.

The low maintenance poly chain system effectively prevents slippage and saves valuable time.

The chain curtain provides extra protection while mulching.

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

Supporting legs are available for a stable and safe stand on the ground and during transport.

  • Working width

    up to 95 in
    up to 2,410 mm
  • Total width

    up to 110 in
    up to 2,800 mm
  • Weight

    up to 5,511 lbs
    up to 2,200 kg
  • Rotor diameter

    22 in
    550 mm
  • Tools

    56x BCS/UPTs // 64x BCS/UPTs
    56x BCS/UPTs // 64x BCS/UPTs
  • Volume flow

    40-106 gpm
    150-400 l/min
  • Hydraulic motor

    2 x 107 cc // 2 x 170 cc
    2 x 107 cc // 2 x 170 cc
