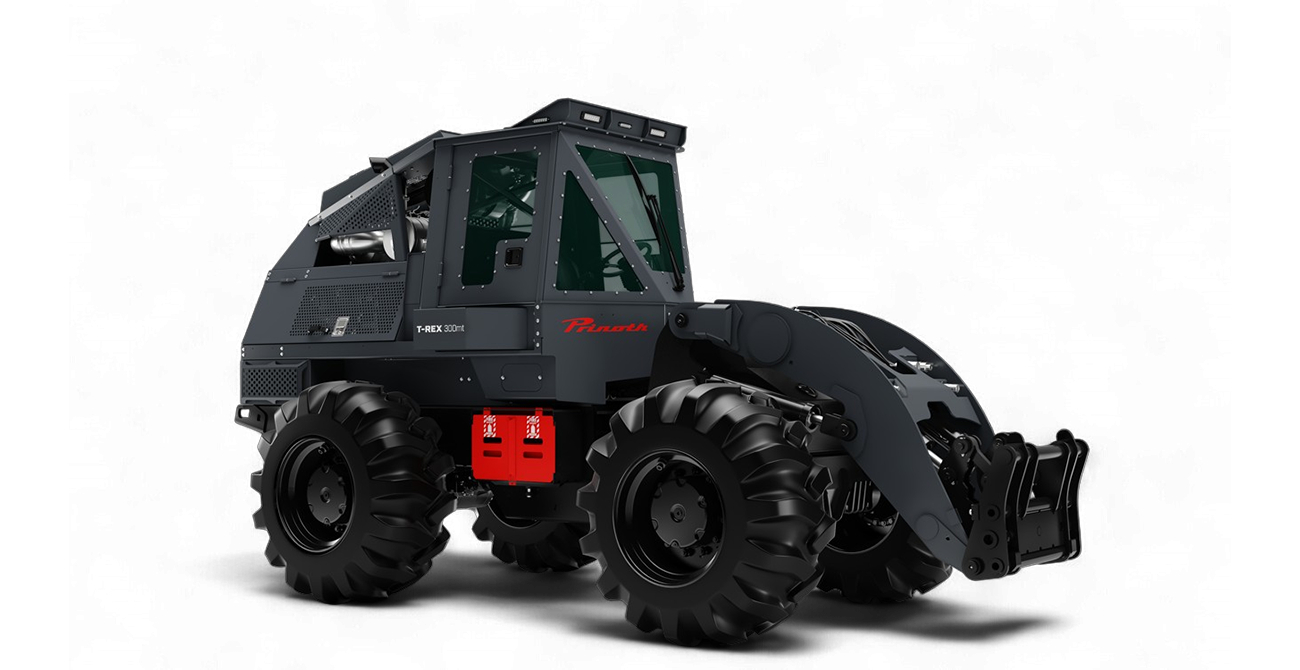

T-REX 300mt

T-REX 300mt

The ultimate brush cutter and land clearer.

Engine

Engine

Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm

Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm

Weight

Weight

32,500 lbs

14.7 tonnes

Total width

Total width

8 feet 6 inches

2.5 meters

Your Benefits

For any purpose

For any purpose

With the JRB 416 universal hydraulic quick coupler, mounting attachments is as easy as a push of a button. One machine can do the job of three.

Save time, save money

Save time, save money

Being fitted with a universal front coupler means any attachment that can be mounted can be used. The sky is literally the limit, meaning you save time & money.

Rely on your T-Rex 300

Rely on your T-Rex 300

Every one of your projects has a time-sensitive nature. Our US made T-Rex 300 is vigorously tested to provide you reassurance.

Flexible. Efficient. Effective.

ATTACHMENTS MADE SIMPLE All machines are outfitted with a JRB416 universal hydraulic quick coupler, so mounting attachments is as easy as a push of a button.

Flexible. Efficient. Effective.

Features

All machines are outfitted with a JRB 416 universal hydraulic quick coupler, so mounting attachments is as easy as pushing a button.

The machine dimensions of 8 feet 4 inches (2.5 meters) fit the legal road limit, eliminating the need for special permits when transporting. So you can transport your machine hassle free.

Choose between wheels for speed and maneuverability, or quad tracks for traction and low ground pressure. Both models include hydrostatic all-time 4-wheel drive and an articulated undercarriage to elp you get the job done faster.

With a 260 hp Cummins engine both power and reliability are guaranteed. The T-Rex 300mt is the most powerful vehicle in its class and due to its compact size offers both reduced fuel consumption and increased versatility.

The cab mounted inclinometers let the operator know the exact steepness of the slope and being ROPS and FOPS certified means maximum safety is provided for the operator. The rear view back up camera also includes an alarm which provides a clear view of what’s behind the unit while offering extra safety through a warning alarm of nearby obstacles.

For the operator climate control, an ergonomic joystick, and a touch screen control center offer maximum comfort. Additionally, the ergonomically designed cab means hours of operation without aches and pains and the all-round visibility make working on the job more relaxing.

Technical data

  • Engine

    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm

    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm

  • Weight

    32,500 lbs

    14.7 tonnes

  • Total width

    8 feet 6 inches

    2.5 meters

  • Coupler

    JRB 416 Hydraulically Acuated

    JRB 416 Hydraulically Acuated

  • Tipping Limit

    19,000 lbs

    8.6 tonnes

  • Auxiliary Hydraulics

    Two Open Loop circuits: 3000psi @ 26gpm – Quick Disconnect (Adjustable Flow) One Closed Loop circuit: 5800psi @ 74gpm – Quick Disconnect (On/Off)

    Two Open Loop circuits: 3000psi @ 26gpm – Quick Disconnect (Adjustable Flow) One Closed Loop circuit: 5800psi @ 74gpm – Quick Disconnect (On/Off)

  • Length

    24 feet

    7.3 meters

  • Height

    10 feet 4 inches

    3.15 meters

  • Joystick

    16 feet 2 inches

    4.9 meters

  • Ground Clearance

    24 inches

    61 cm

  • Ground Clearance

    5.5 psi

    0.38 bar

  • Gradeability

    25° slope / 46% grade

    25° slope / 46% grade

  • Road Speed

    9 mph

    14 km/h

  • Drive

    Hydrostatic

    Hydrostatic

  • Turning Radius

    13 feet

    3.9 meters

  • Fuel Capacity

    54 gallons

    204 liters

  • Winch

    20,000 pounds of pull

    9 tonnes of pull

  • Joystick

    Cutter head movement

    Cutter head movement

  • Foot pedal

    Travel

    Travel

  • Engine

    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm

    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm

  • Weight

    26,300 lbs

    11.9 tonnes

  • Total width

    8 feet 6 inches

    2.5 meters

  • Coupler

    JRB 416 Hydraulically Acuated

    JRB 416 Hydraulically Acuated

  • Tipping Limit

    19,000 lbs

    8.6 tonnes

  • Auxiliary Hydraulics

    Two Open Loop circuits: 3000psi @ 26gpm – Quick Disconnect (Adjustable Flow) One Closed Loop circuit: 5800psi @ 74gpm – Quick Disconnect (On/Off)

    Two Open Loop circuits: 3000psi @ 26gpm – Quick Disconnect (Adjustable Flow) One Closed Loop circuit: 5800psi @ 74gpm – Quick Disconnect (On/Off)

  • Length

    24 feet

    7.3 meters

  • Height

    9 feet 11 inches

    3 meters

  • Joystick

    15 feet 8 inches

    4.7 meters

  • Ground Clearance

    19 inches

    48 cm

  • Ground Clearance

    9.3 psi

    0.64 bar

  • Gradeability

    14 mph

    25° slope / 46% grade

  • Road Speed

    14 mph

    22 km/h

  • Drive

    Hydrostatic

    Hydrostatic

  • Turning Radius

    13 feet

    3.9 meters

  • Wheels/Tires

    710/45-26.5 20 Ply Forestry

    710/45-26.5 20 Ply Forestry

  • Fuel Capacity

    54 gallons

    204 liters

  • Winch

    20,000 pounds of pull

    9 tonnes of pull

  • Joystick

    Cutter head movement

    Cutter head movement

  • Foot pedal

    Travel

    Travel

Attachments

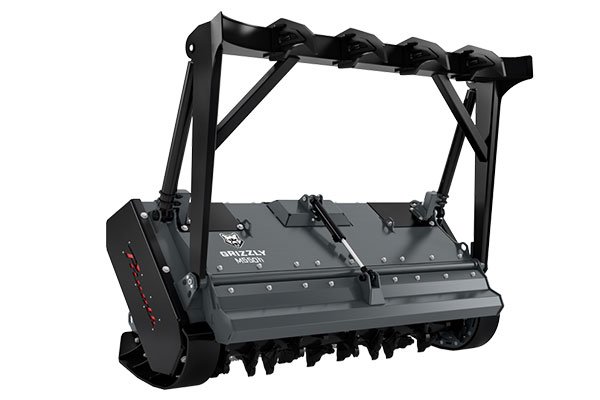

Prinoth mulcher

Prinoth mulcher

Grizzly M550h

Brush & Forestry Control

Brush & Forestry Control

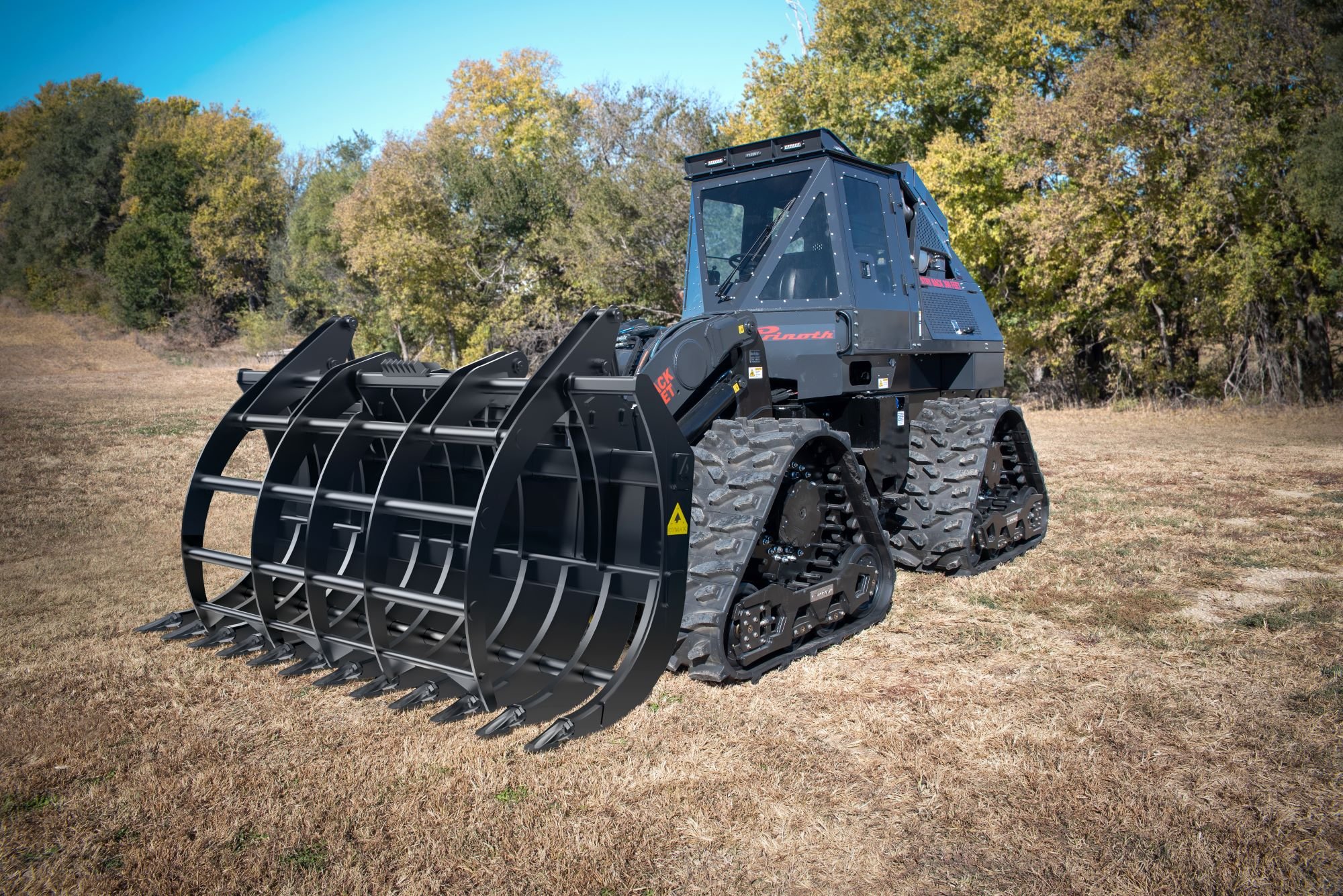

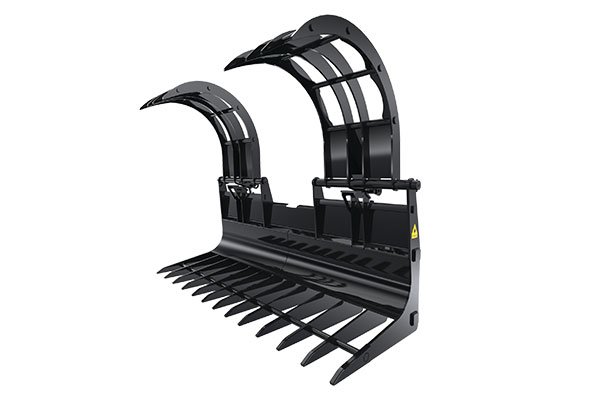

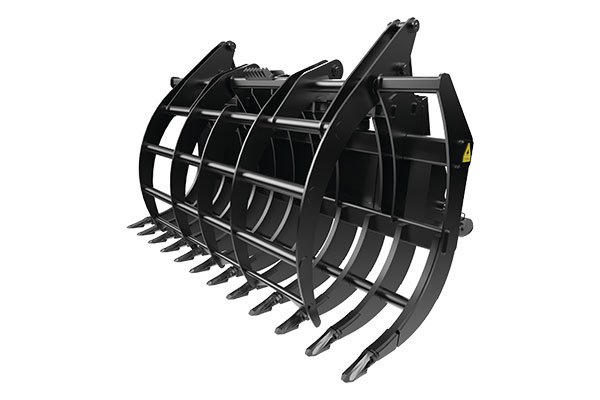

Grapple Bucket (2 Styles)

Land Clearing

Land Clearing

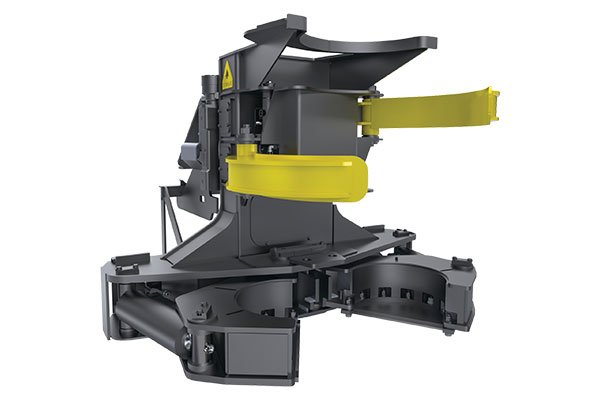

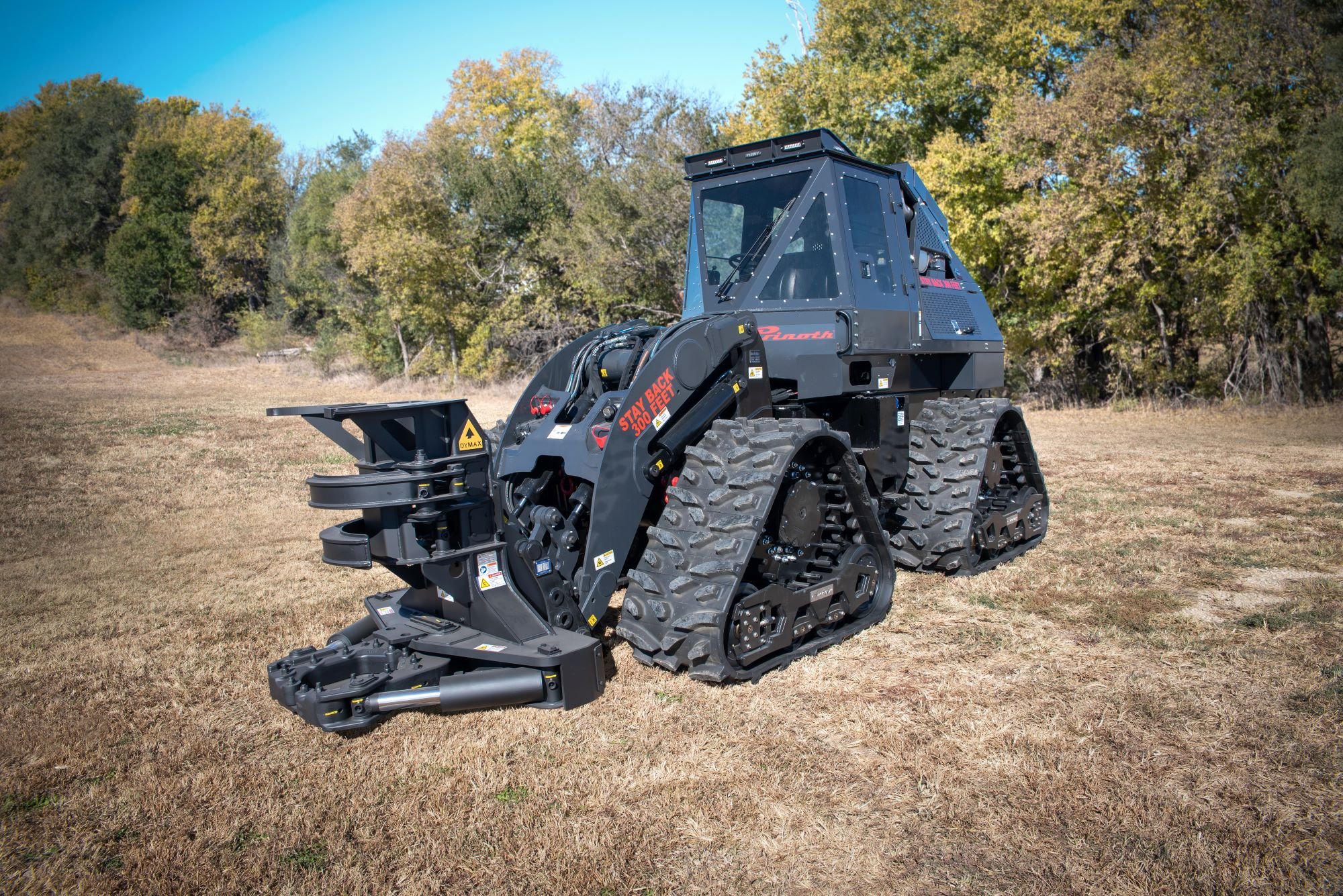

Tree Shear

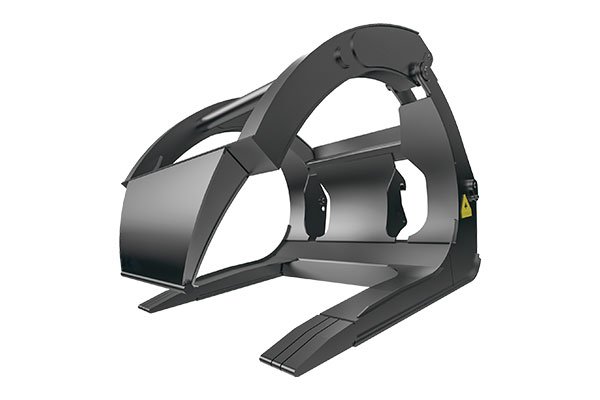

Product Handling

Product Handling

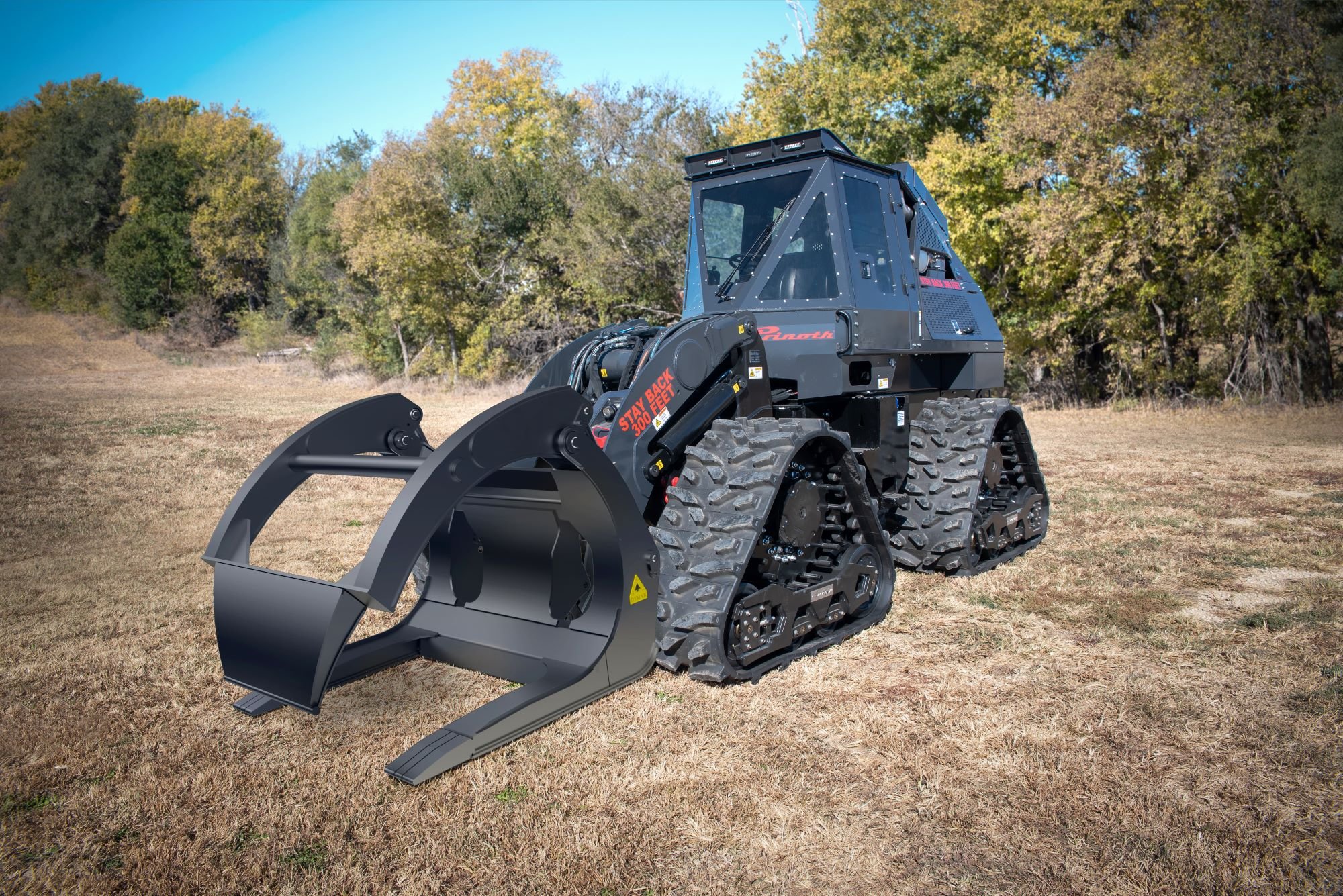

Forks (also w/ clamps optional)

Site Preparation

Site Preparation

Push Blade
