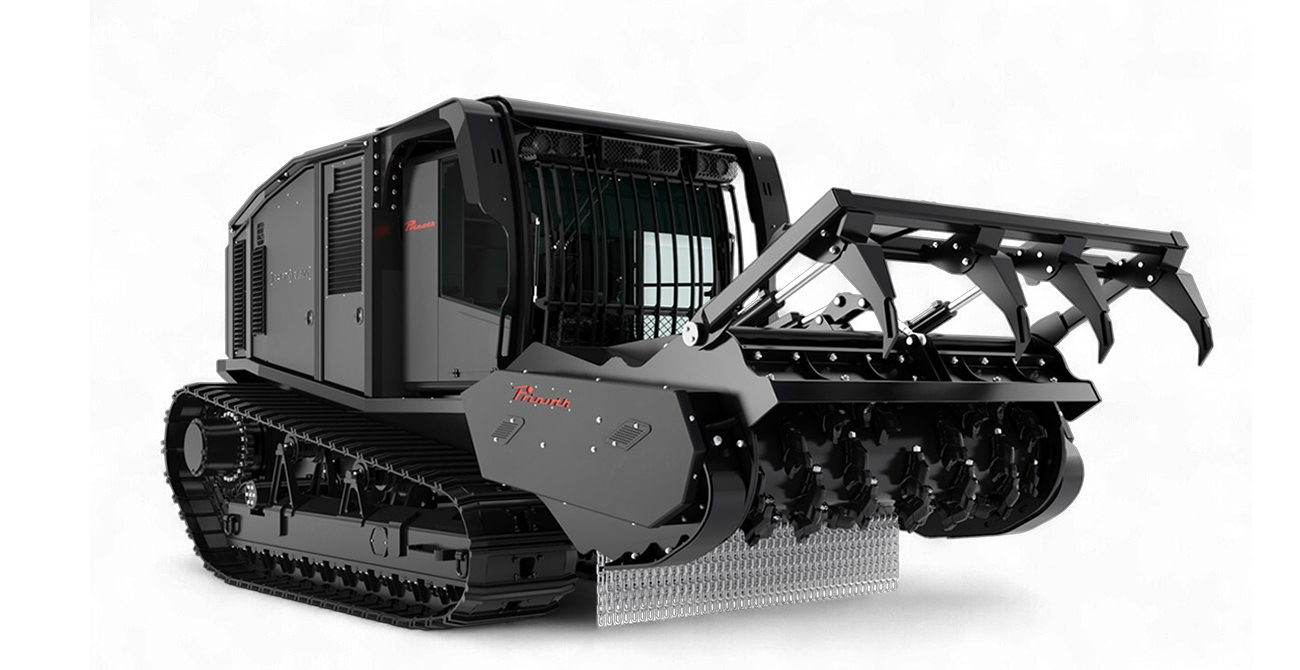

RAPTOR 800

RAPTOR 800

Designed for most challenging and heavy forestry work in rough and rugged terrain.

Engine

Engine

CAT C18
CAT C18
Power

Power

640 HP
470 kW
Tank capacity

Tank capacity

180 gal
820 l

Your Benefits

High efficiency

High efficiency

Heavy Duty Drive Line transmits all the power to the mulcher with minimal losses via drive shafts. Reduced fuel consumption and 30 % more efficient.

All-terrain undercarriage - Delta Tracks

All-terrain undercarriage - Delta Tracks

The shape of the undercarriage protects the vehicle in case of obstacles such as stumps and rocks, simplifies reverse rescue and has a self-cleaning function.

Most comfortable and safe cab

Most comfortable and safe cab

The comfortable, air-conditioned, ergonomic cab meets the highest safety standards (ROPS/FOPS/OPS certified). To work for long time under toughest conditions.

The ultimate combination of performance and functionality

The Raptor 800 stands for durability, productivity and ease of maintenance. Combined with the M900m mulcher or the SB1200m stump buster, it can handle the toughest jobs.

The ultimate combination of performance and functionality

Strong and reliable in all terrains

The Raptor 800 with the powerful M900m mulching attachment with hydraulic push bar and flap, efficient counter blades and the patented UPT rotor system ensures optimum mulching results in extremely challenging areas.

Features

The 470 kW / 640 hp 6-cylinder Cat C18, Stage V/T4f provides the user with sufficient power reserves in all application areas.

M900m Mulcher
The powerful M900m mulching attach¬ment with hydraulic push bar and flap, efficient counter blades and the patented UPT rotor system ensure perfect mulching results.

SB1200m Stump buster
The extremely robust stump buster SB1200m with a working width 1,250 mm and a rotor diameter of 1,200 mm ca Can work deep in the soil up to 7 in (18 cm) deep. Welded wear plates in the complete housing reduce wear and increase lifetime.

The shape of the undercarriage protects the vehicle in case of barriers like stumps and rocks and simplifies backwards rescue. Less stress, better self-cleaning effect and better off-road mobility.

Every side of the Raptor can turn around the oscillating axle. This provides additional comfort for the driver and lowers the stress to the vehicle and drive due to vibration, particularly at high speed. Furthermore, damages due to shear stress and thrust decrease. The movable undercarriages ensure maximum driving and working comfort and increase the service life of the entire vehicle.

The mechanical drive HDDL transmits the complete power to the attachment with minimal losses. This reduces the fuel consumption and enables also a large excavation height. In addition the drive line is equipped with a turbo clutch, which ensures soft starting of the rotor. This prevents heavy torque peaks and protects the engine.

The turbo clutch ensures soft starting of the rotor, this prevents heavy torque peaks and protects the engine. That means stalling of the rotor will not stall the engine. Also under extreme working conditions the entire drive line is protected from shock loads.

Cabin with rollover protection and protection against falling objects. Cab fulfills following standards: ROPS / FOPS / OPS.

Powerful LED work lights and additional service lighting for round the clock operation.

Clearly arranged, the operator has all functions and parameters at a glance. In addition to comprehensive information, the intuitive display (color 7” display) also sup¬ports fault diagnosis of the machine and engine.

Highest standard in seating quality, comfortable, ergonomic and heated.

To get access to the components under the cabin, it can be tilted with a hydraulic cylinder to grant optimal accessibility.

Only filtered air is passed into the cabin. The inside of the cab is pressurized. This helps prevents dust and dirt from entering the cabin from outside.

An electronic system regulates the delivery rate of the axial piston pumps for the traction drive according to engine speed. For tough jobs, i.e., when there is high resistance on the rotor, the traction drive automatically slows down without the driver having to control it manually. This reduces the strain on the rotor.

The Speed Control Function allows the operator to save the working speed and makes it easier for the operator to work with the machine.

This function automatically reduces the load on the lifting frame, it increases the performance of the machine and the life time of the components. The attachment floats over and adapts to any uneven ground.

Air pressure system for connecting equipment for maintenance or service and for cleaning the front window.

Technical data

Download (PDF)
  • Engine

    CAT C18
    CAT C18
  • Power

    640 HP
    470 kW
  • Tank capacity

    180 gal
    820 l
  • Travel Speed

    4.7 mph
    7,5 km/h
  • Working width

    91 in
    2,300 mm
  • Total working width with mulcher

    110 in
    2,800 mm
  • Height

    126 in
    3,143 mm
  • Length

    294 in
    7,458 mm
  • Weight with mulcher

    57320 lbs
    26,000 kg
  • Rotor diameter

    35.4 in
    900 mm
  • Tools

    56 UPT
    56 UPT
  • Ground pressure with mulcher

    6 psi
    420 g/cm²
  • Gradeability sideways / frontal

    30° / 45°
    30° / 45°
