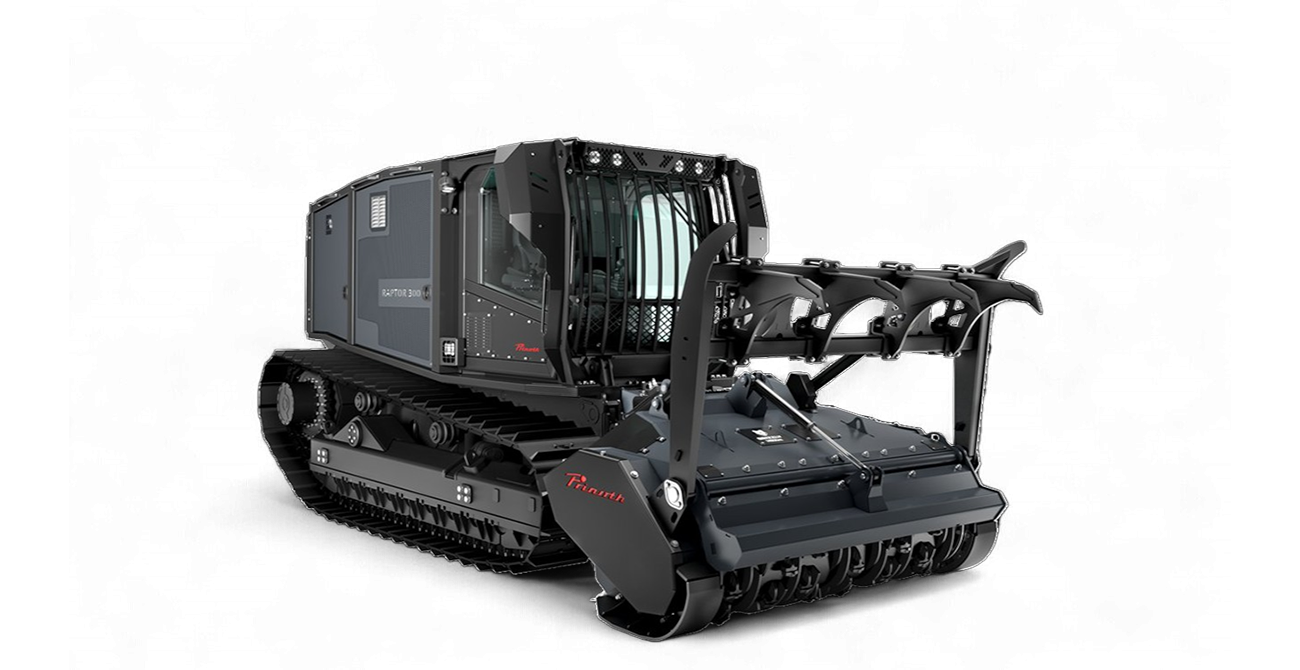

RAPTOR 300

RAPTOR 300

A compact and powerful tracked carrier for the most difficult forestry work.

Engine

Engine

ORA CAT C 7.1 / Stage V / T4f
ORA CAT C 7.1 / Stage V / T4f
Power

Power

275 HP
205 kW
Tank capacity

Tank capacity

95 gal
360 l

Your Benefits

Powerful & Economical

Powerful & Economical

The CAT C7.1 engine combines high power and low fuel consumption. It boasts the highest efficiency due to mechanical drive.

All-terrain undercarriage - Delta Tracks

All-terrain undercarriage - Delta Tracks

The shape of the undercarriage protects the vehicle in case of obstacles such as stumps and rocks, simplifies reverse rescue and has a self-cleaning function.

Most comfortable and safe cab

Most comfortable and safe cab

The comfortable, air-conditioned, ergonomic cab meets the highest safety standards (ROPS/FOPS/OPS certified). To work for long time under toughest conditions.

The all-arounder, always ready for any task

With its powerful Cat C7.1 engine 275 hp, the Raptor 300 is equally at home on steep slopes and on soft ground.

The all-arounder, always ready for any task

Strong on the slope and also on the plain

The Raptor 300 with the powerful M650m mulching attach-ment with hydraulic push bar and flap, efficient counter blades and the patented BCS/UPTs rotor system ensure perfect mulching results.

Features

The 205 kW / 275 hp 6-cylinder Cat C7.1 diesel engine with a maximum torque of 1,257 Nm provides the user with sufficient power reserves in all application areas.

The powerful M650m mulching attachment with hydraulic push bar and flap, efficient counter blades and the patented UPTs or BCS rotor system ensure perfect mulching results.

The shape of the undercarriage protects the vehicle in case of barriers like stumps and rocks and simplifies backwards rescue. Less stress, better self-cleaning effect and better off-road mobility.

Every side of the Raptor can turn around the oscillating axle. This provides additional comfort for the driver and lowers the stress to the vehicle and drive due to vibration, particularly at high speed. Furthermore, damages due to shear stress and thrust decrease. The movable undercarriages ensure maximum driving and working comfort and increase the service life of the entire vehicle.

Robust and durable, efficient with direct drive and unlimited lifting height. The power belt drive is extremely robust, needs very little maintenance, and has a very high lifting height to cross-severe dips and angles.

The turbo clutch ensures soft starting of the rotor, this prevents heavy torque peaks and protects the engine. That means stalling of the rotor will not stall the engine. Also under extreme working conditions the entire drive line is protected from shock loads.

Cabin with rollover protection and protection against falling objects. Cab fulfills following standards: ROPS / FOPS / OPS

Powerful LED work lights and additional service lighting for round-the-clock operation.

Clearly arranged, the operator has all functions and parameters at a glance. In addition to comprehensive information, the intuitive display (color 7” display) also supports fault diagnosis of the machine and engine.

Highest standard in seating quality, comfortable, ergonomic and heated.

To get access to the components under the cabin, it can be tilted with a hydraulic cylinder to grant optimal accessibility.

Only filtered air is passed into the cabin. The inside of the cab is pressurized. This helps to prevent dust and dirt from entering the cabin from outside.

An electronic system regulates the delivery rate of the axial piston pumps for the traction drive according to engine speed. For tough jobs, i.e., when there is high resistance on the rotor, the traction drive automatically slows down without the driver having to control it manually. This reduces the strain on the rotor.

The Speed Control Function allows the operator to save the working speed and makes it easier for the operator to work with the machine.

Air pressure system for connecting equipment for maintenance or service and for cleaning the front window.

This function automatically reduces the load on the lifting frame, it increases the performance of the machine and the life time of the components. The attachment floats over and adapts to any uneven ground.

  • Engine

    ORA CAT C 7.1 / Stage V / T4f
    ORA CAT C 7.1 / Stage V / T4f
  • Power

    275 HP
    205 kW
  • Tank capacity

    95 gal
    360 l
  • Travel Speed

    4.66 mph
    7,5 km/h
  • Working width

    81 in
    2,050 mm
  • Total working width with mulcher

    98 in
    2,500 mm
  • Height

    108 in
    2,750 mm
  • Length

    255 in
    6,474 mm
  • Weight with mulcher

    39,154 lbs
    17,760 kg
  • Weight without mulcher

    32,562 lbs
    14,770 kg
  • Rotor diameter

    650 mm
    650 mm
  • Tools

    56/72 x UPTs / 68 x BCS
    56/72 x UPTs / 68 x BCS
  • Ground pressure with mulcher

    600 mm grouser 340 g/cm² (4.8 psi)
    600 mm grouser 340 g/cm² (4.8 psi)
  • Gradeability sideways / frontal

    30° / 45°
    30° / 45°
