RAPTOR 200

RAPTOR 200

Strong yet lightweight mulching solution.

Engine

Engine

CAT C 4.4 /Stage V / T4f
CAT C 4.4 /Stage V / T4f
Diameter mulching material

Diameter mulching material

> 12 in
> 30 cm
Power

Power

190 HP
140 kW

Your Benefits

Powerful

Powerful

The CAT C4.4 engine combines high power and fuel efficiency to help the Raptor 200 keep costs down and provide stable yields in daily operations.

Low weight

Low weight

The low weight and its dimensions makes it easy to transport to its place of use. Low ground pressure useful for critical applications.

Most comfortable and safe cab

Most comfortable and safe cab

The comfortable, air-conditioned, ergonomic cab meets the highest safety standards (ROPS/FOPS/OPS certified). To work for long time under toughest conditions.

Strong on the slope and also on the plain

With its powerful Cat C4.4 engine, the Raptor 200 is equally at home on steep slopes and on soft ground. With 190 hp and an extremely low tare weight of 9.2 t / 20,280 lbs, the Raptor 200 has the optimum power-to-weight ratio. The Raptor 200 is equipped with the Grizzly M450s mulching attachment. It comes with a hydraulic push bar and flap, counter blades and the patented BCS/UPTs rotor system for optimal results.

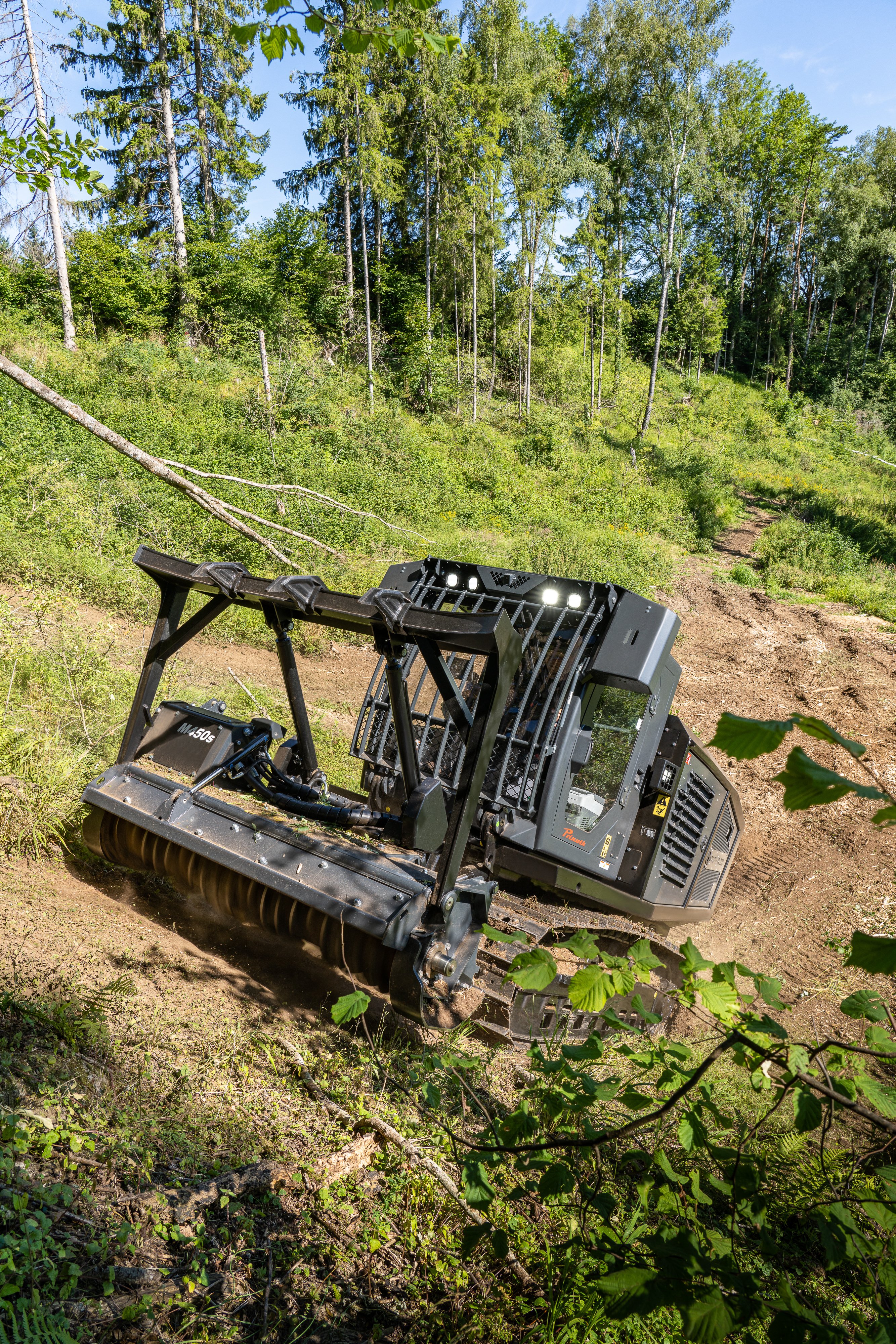

Perfect for the steepest slopes

Perfect for the steepest slopes

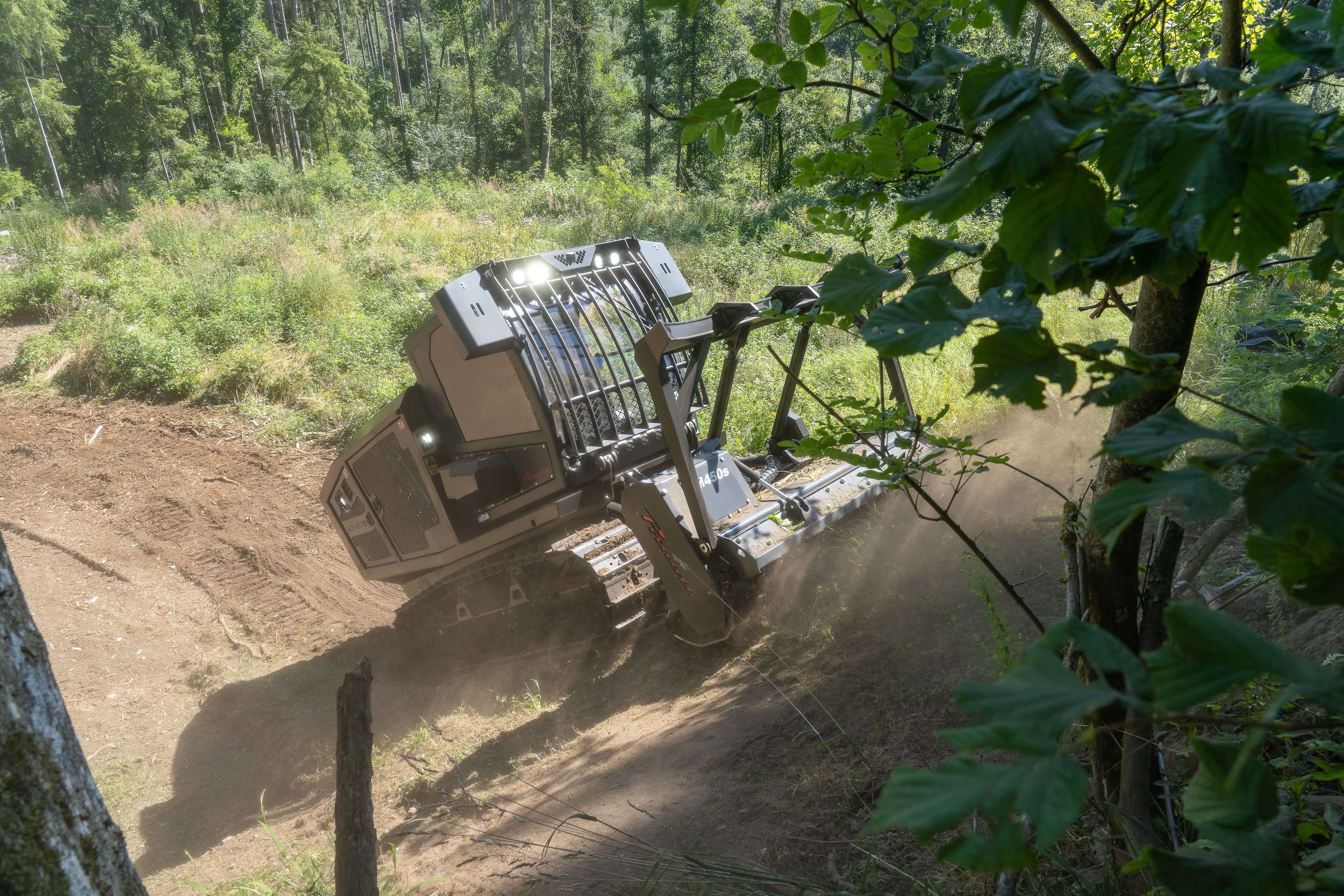

Strong performance on steep slopes

Features

The 140 kW / 190 hp 4-cylinder Cat C4.4 diesel engine with a maximum torque of 815 Nm provides the user with sufficient power reserves in all application areas. The twin turbochargers ensure high drive efficiency.

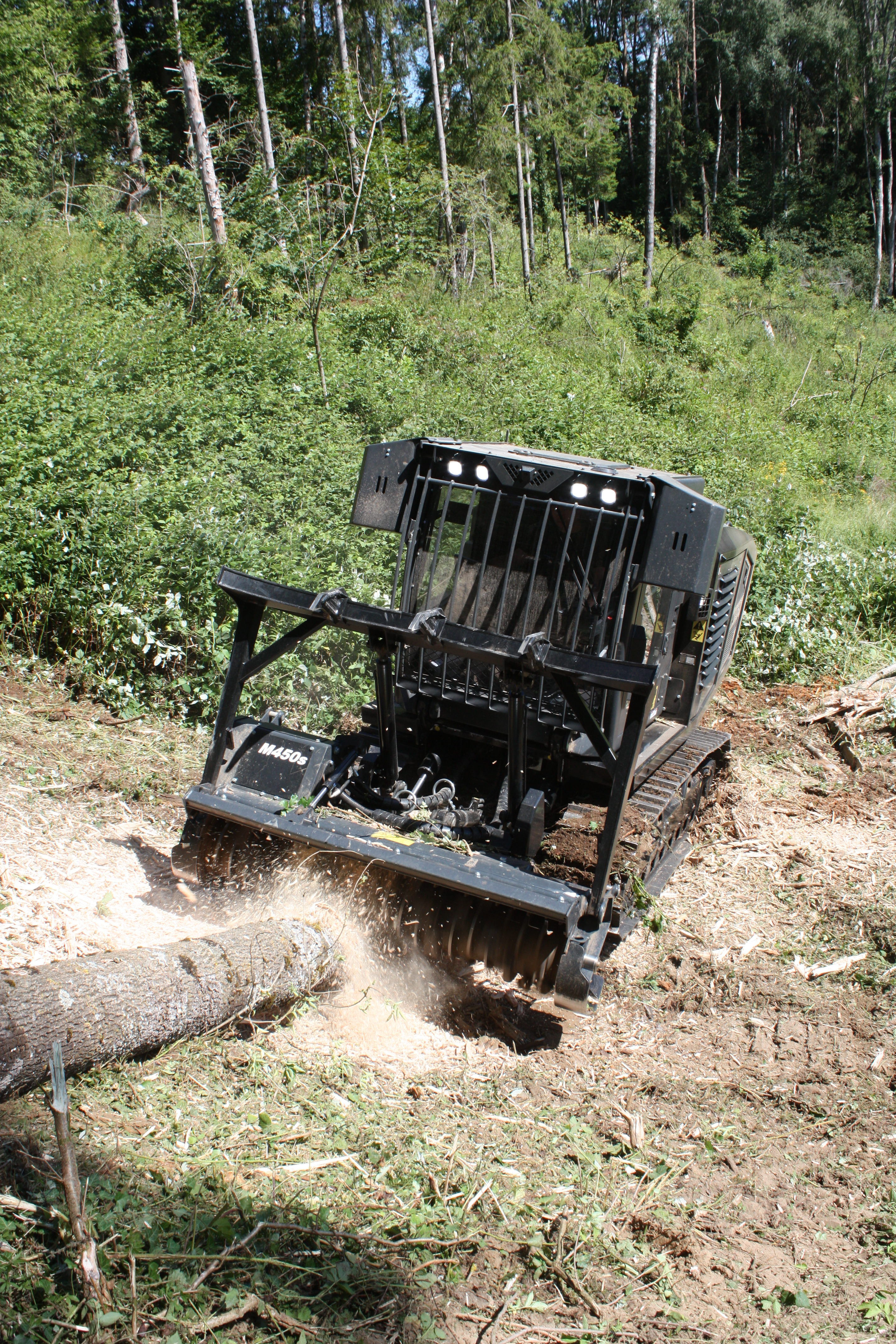

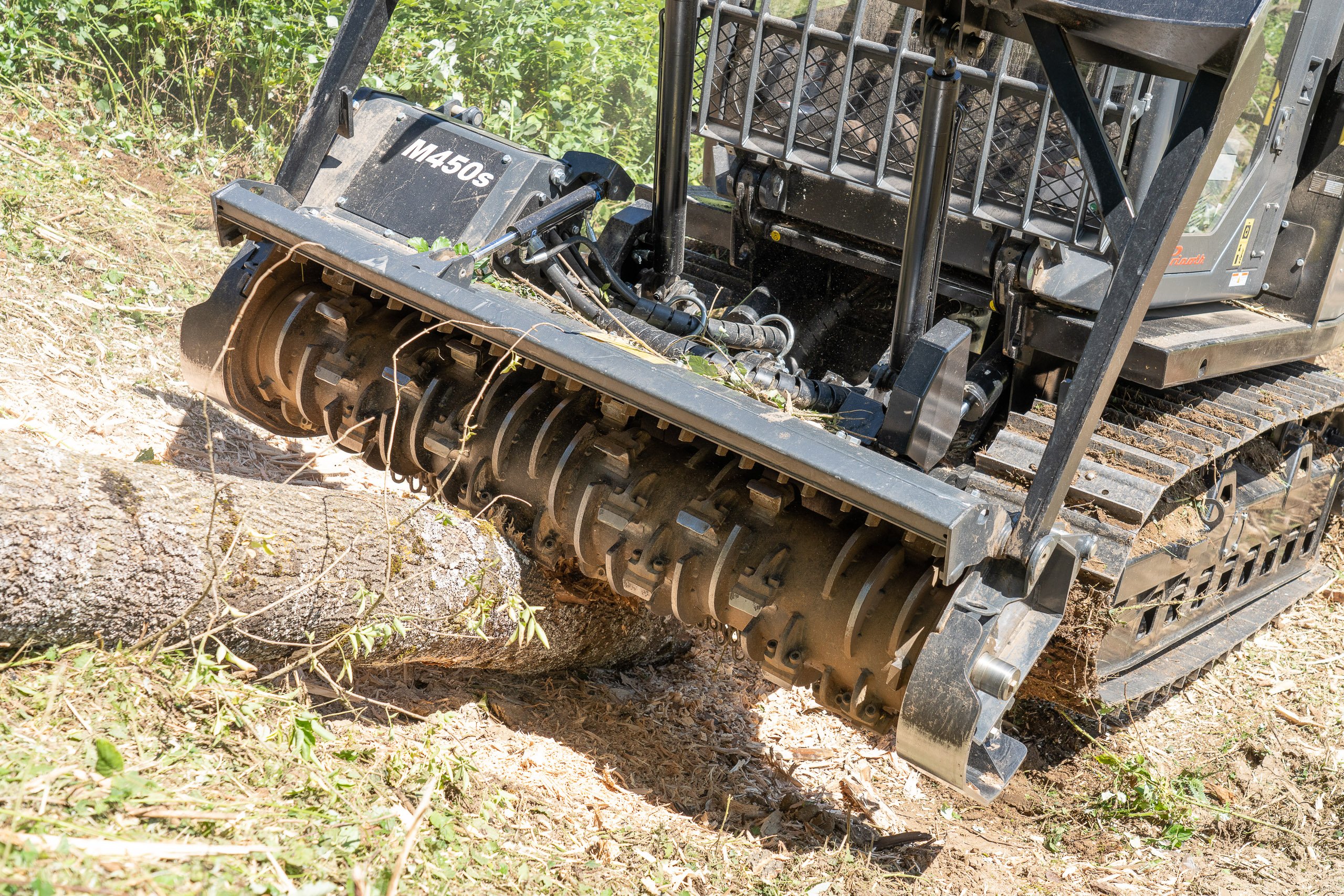

The Grizzly M450s mulching attachment with hydraulic push bar and flap, efficient counter blades and the patented BCS or UPTs rotor system ensure perfect mulching results.

Cabin with rollover protection and protection against falling objects. Cab fulfills following standards: ROPS / FOPS / OPS

A rear mirror camera system increases the driver's view.

Powerful LED work lights and additional service lighting for round-the-clock operation.

Clearly arranged, the operator has all functions and parameters at a glance. In addition to comprehensive information, the intuitive display (color 7” display) also sup¬ports fault diagnosis of the machine and engine.

Highest standard in seating quality, comfortable, ergonomic and heated.

To get access to the components under the cabin, it can be tilted with a hydraulic cylinder to grant optimal accessibility.

Only filtered air is passed into the cabin. The inside of the cab is pressurized. This helps prevent dust and dirt from entering the cabin from outside.

An electronic system regulates the delivery rate of the axial piston pumps for the traction drive according to engine speed. For tough jobs, i.e., when there is high resistance on the rotor, the traction drive automatically slows down without the driver having to control it manually. This reduces the strain on the rotor.

The Speed Control Function allows the operator to save the working speed and makes it easier for the operator to work with the machine.

Air pressure system for connecting equipment for maintenance or service and for cleaning the front window.

This function automatically reduces the load on the lifting frame, it increases the performance of the machine and the life time of the components. The attachment floats over and adapts to any uneven ground.

Technical data

Download (PDF)
  • Engine

    CAT C 4.4 /Stage V / T4f
    CAT C 4.4 /Stage V / T4f
  • Diameter mulching material

    > 12 in
    > 30 cm
  • Power

    190 HP
    140 kW
  • Tank capacity

    66 gal
    250 l
  • Travel Speed

    5 mph
    8 km/h
  • Working width

    74.8 in
    1,900 mm
  • Total working width with mulcher

    86.6 in
    2,200 mm
  • Height

    101 in
    2,574 mm
  • Length

    220 in
    5,594 mm
  • Weight with mulcher

    20,172 lbs
    9,150 kg
  • Rotor diameter

    450 mm
    450 mm
  • Tools

    40x BCS / 48x UPTs
    40x BCS / 48x UPTs
  • Ground pressure with mulcher

    4.69 psi
    0.330 kg/cm²
  • Ground pressure without mulcher

    3.98 psi
    0.280 kg/cm²
  • Gradeability sideways / frontal

    35° / 45°
    35° / 45°
