OX R800m

OX R800m

Developed for tractors in the power range of 200-400 HP.

Power

Power

200-400 HP

200-400 HP

Working width

Working width

90.6 in

2,300 mm

Total width

Total width

117 in

2,980 mm

Your Benefits

Perfect shredding

Perfect shredding

The patented tool system ensures perfect shredding of roots and root remains and their mixing into the subsoil.

Robust and safe

Robust and safe

A strong and robust housing made of durable steel is ideal for applications with intensive ground contact. The hydraulic hoses are protected inside the housing.

Versatile rotavator

Versatile rotavator

With a cutting depth of up to 30 cm (11.8 in) and the option of rotating the rotor backwards, it covers a wide range of uses. It can be used for mulching too.

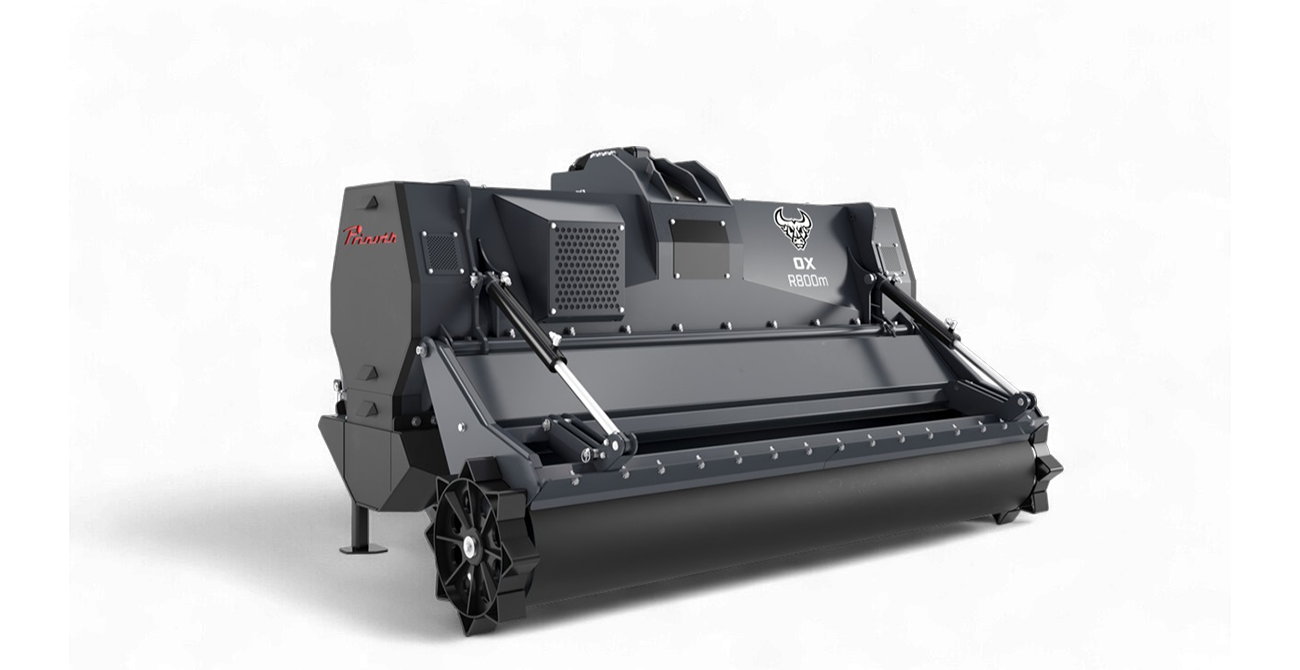

A rotavator for tractors

The Ox R800m is a rotavator for tractors in the upper power class up to 400 HP. It mills soil to a depth of up to 40 cm, it is ideal for milling roots and stumps and mulches wood up to a diameter of 60 cm.

A rotavator for tractors

Ideal for soil recultivation

The rotavator can be used universally and is suitable for shredding roots and root residues and working them into the subsoil. The large-dimensioned compacting roller is well suited for guiding the machine in depth and for re-compacting the soil.

Features

The rotor is driven by either 8- or 10-groove spring-tensioned power belts.

Mounting to tractors is done with a 3-point power hitch CAT III and CAT IV.

Bolted and wear resistant deep milling skids are easy exchangeable.

Rotor available with UPT tools. Maximum reliability, built against highest impacts and loads.

The housing is equipped with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable. An additional row of counter blades is optional available. For further protection the side walls are also covered with bolted liners.

The rubber guard (optional the chain curtain) provides extra protection while mulching.

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

Supporting legs are available for a stable and safe stand on the ground and during transport.

The oil cooler integrated within the housing, and the actively cooled belt drive, increased performance and life time even under the toughest operating conditions.

The gearbox with freewheel allows the use as a reverse milling machine by turning the direction of rotation.

a) with star wheels It takes care for a good re-compacting of the ground. The star wheels create thereby a clearly visible mark in the ground of the worked area, care for perfect traction and help to use the whole working width of the machine.

b) with horizontal strips Horizontal strips on the roller make horizontal grooves in the soil during the re-compaction process, in order prevent erosion of the top layer of soil during rainfall.

The patented W-Kinematic keeps the angles equal to prevent damage to the PTO shaft and supports an ideal adaptation to the conditions of the ground for an optimal lifting height.

The jointers help to break up the ground so that the deep milling can easily enter the soil. They are bolted and easy to replace. They are available in two designs for different soil types.
- Jointer straight, for medium-hard soils b - Jointer sharp, for extremely hard soils

For more safety the mulcher can be equipped with friction clutches in the side drive shaft.

With the spring tension, the drive belts are in an optimum tension ratio and transmit the forces in the best possible way.

Technical data

Download (PDF)
  • Power

    200-400 HP

    200-400 HP

  • Working width

    90.6 in

    2,300 mm

  • Total width

    117 in

    2,980 mm

  • Working depth

    15.7 in

    400 mm

  • Weight

    9,480 lbs

    4,300 kg

  • Rotor diameter

    31.5 in

    800 mm

  • Tools

    50 x UPT

    50 x UPT
