GRIZZLY M450s

Forestry Mulcher for skid steers.

Power

70 – 180 hp

70 – 180 PS

Diameter mulching material

12 in

30 cm

Working width

63 / 74.8 / 86.8 inin

1,600 / 1,900 / 2,200 mm

Your Benefits

Powerful and reliable

Powerful machine, reliable in a wide range of applications.

Perfect visibility

Low housing, holder of push bar hoses all on the outside for a clear view of the application.

Safety due to close mounting on the carrier

Strong and compact mulching head with the point of gravity close to the carrier provides easier handling and less tipping or roll over danger.

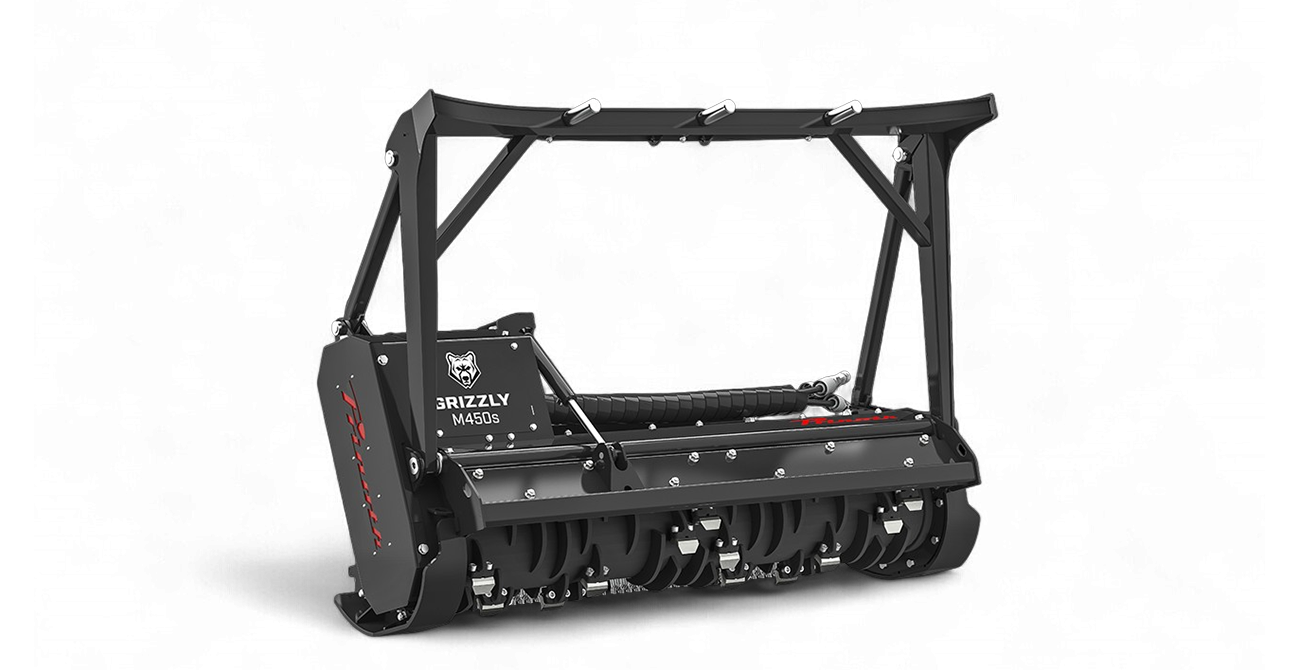

Grizzly M450s

Skid Steer Mulcher.

Grizzly M450s

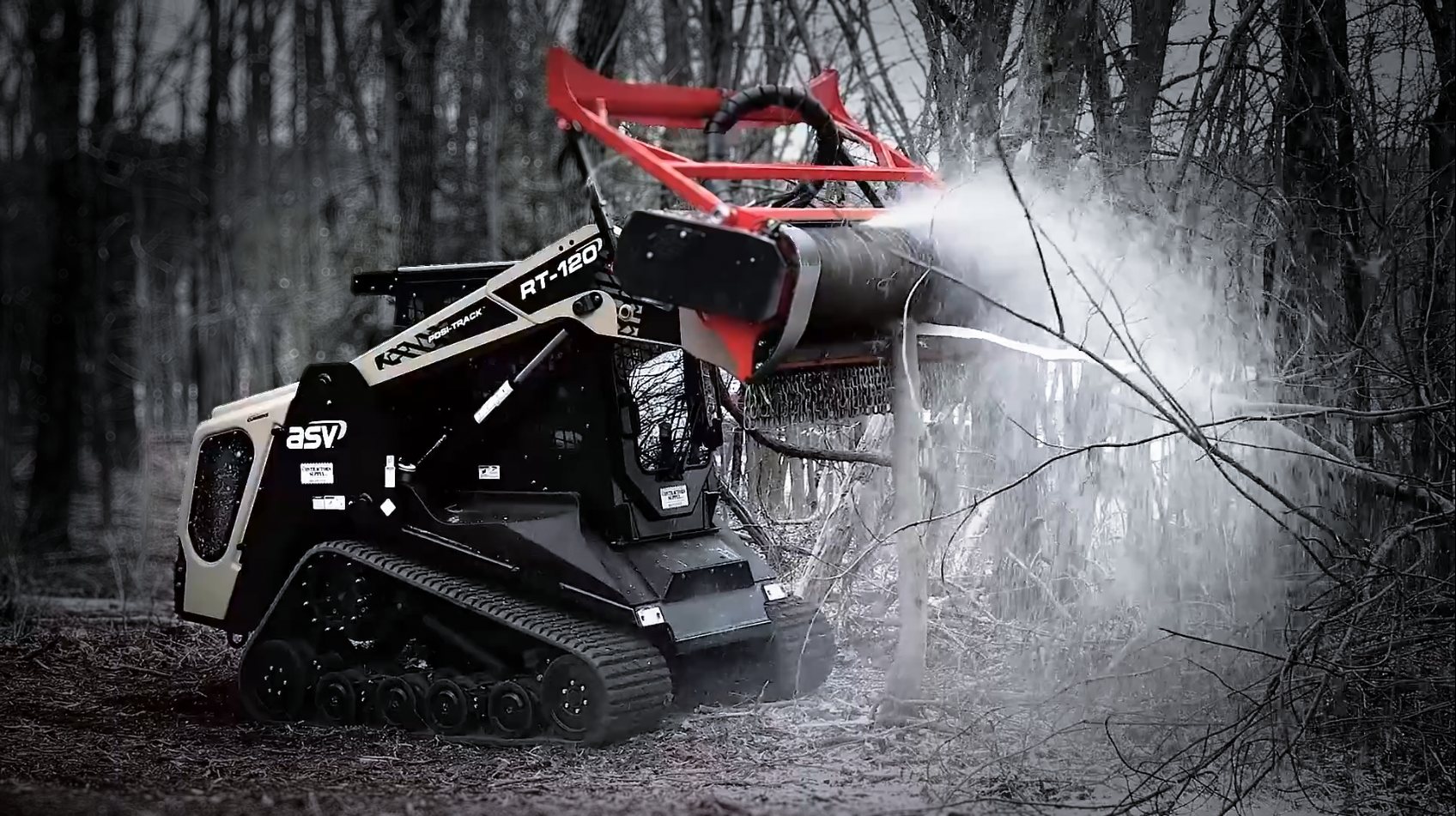

The M450s mulcher is designed for the compact loader segment like skid steers or other hydraulic driven carrier vehicles from 70-180 hp.

Features

The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.

BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.

Rotor also available with UPTs tools. Maximum reliability, built against highest impacts and loads.

Powerful and high efficiency 115 cc or 170 cc HD - variable displacement motor for maximum performance.

The low maintenance poly chain system effectively prevents slippage and saves valuable time.

The skids are designed to allow a flexible working performance. Due to the shape, it is possible while tilting that the rotor has an improved contact to the ground material.

The fixed push bar guides taller material into the rotor in a targeted and safe manner.

Hydraulic flap (optional electronical controlled) with counter blades ensure better shredding of material and provides extra protection while mulching.

The chain curtain provides extra protection while mulching.

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

Customized interfaces for simple mounting / demounting on various carriers with different options available.

Technical data

Download (PDF)

Power

70 – 180 hp

70 – 180 PS
Diameter mulching material

12 in

30 cm
Working width

63 / 74.8 / 86.8 inin

1,600 / 1,900 / 2,200 mm
Volume flow

22.5-52.8 / 24.6-52.8 / 31.7-66 gpm

85-200 / 100-200 / 120-250 l/min
Variable HD displacement piston motor

115 cc // 115 cc // 115/170 cc

115 cc // 115 cc // 115/170 cc
Total width

74.8 / 86.6 / 98.4 in

1,900 / 2,200 / 2,500 mm

Tools

32xBCS/40xUPTs // 40xBCS/48xUPTs // 48xBCS/56xUPTs

32xBCS/40xUPTs // 40xBCS/48xUPTs // 48xBCS/56xUPTs
Weight

2,513 / 2,688 / 3,042 lbs

1,140 / 1,210 / 1,380 kg
