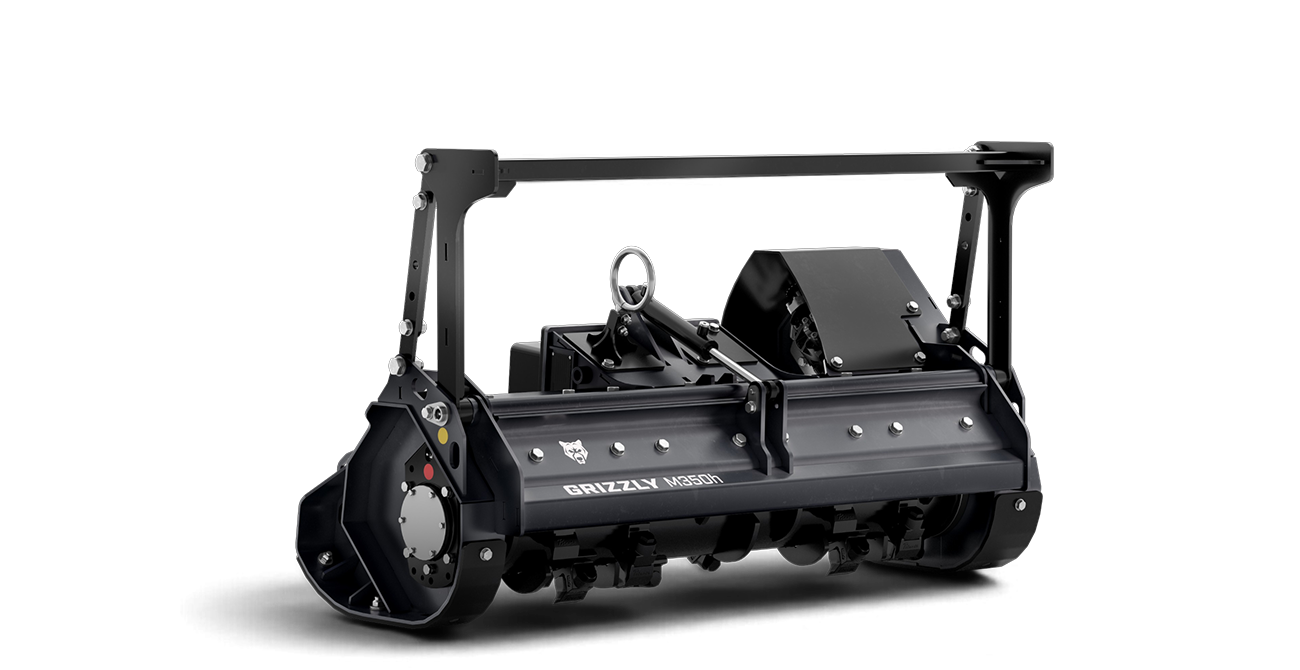

GRIZZLY M350h
Hydraulically driven forestry mulcher for tracked carriers and mini loaders from 40–75 hp
Working Width
Total width
Rotor diameter
The new high-performance forestry mulcher
The new forestry mulcher Grizzly M350h is ideally suited for remote-controlled tracked carriers and mini loaders from 40–75 hp. It is available with powerful fixed-displacement axial piston motors in 23, 28 and 32 cm³ versions to optimally match the hydraulic flow rates of different carrier vehicles.
Features
The Housing components exposed to wear are made from Hardox as standard. Eight modular, bolted counter blades ensure the best possible mulching results. They are easy to replace and can be rotated by 180°, extending service life and reducing maintenance.
The poly chain drive ensures reliable, slip-free power transmission while keeping maintenance requirements low.
The universal mounting plate allows easy adaptation to a wide range of carrier vehicles. Its universal base profile can be individually adapted to the respective interface, ensuring an optimal and stable attachment.
The robust skids adapt flexibly to the ground, reliably protect the housing, and reduce maintenance requirements and operating costs.
Rotor technology with ES compact tools for optimum mulching results.
The chain curtain provides additional protection during mulching.
Hydraulic flap with four rotating counter blades for added protection, easy replacement, and longer service life.
The push bar offers three mounting positions and guides larger material safely and precisely into the rotor.
Technical data

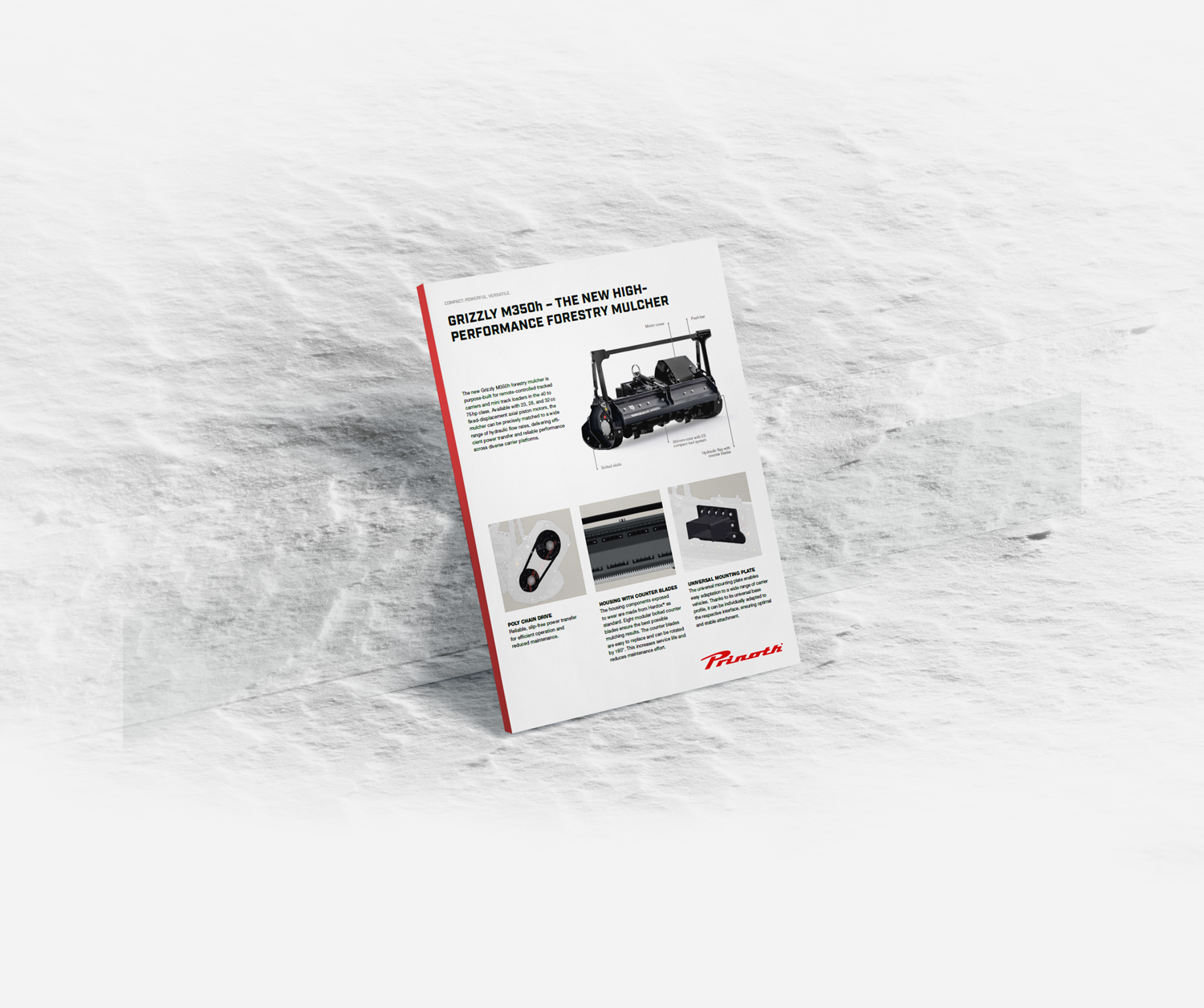

Download (PDF)
-
Working Width
49 in1.250 mm -
Total width
58 in1.490 mm -
Rotor diameter
14 in350 mm -
Weight
1,014 lbs(*depending on the configuration of the machine.)
460 kg(*depending on the configuration of the machine.)
-
Power
40 – 75 HP40 -75 PS -
Tools
22 x ES compact22 x ES compact
-
Fixed-displacement axial piston motors
23, 28, 32 cc23, 28, 32 cm³ -
Maximim pressure
6,000 PSI414 bar -
Volume flow
13 – 20 gpm50 - 75 l/min -
Height
35 in882 mm -
Depth
29 in738 mm
Sustainability
For us, sustainability is more than a commitment — it's part of our purpose. We focus on being environmentally and socially responsible while enhancing performance and efficiency.
