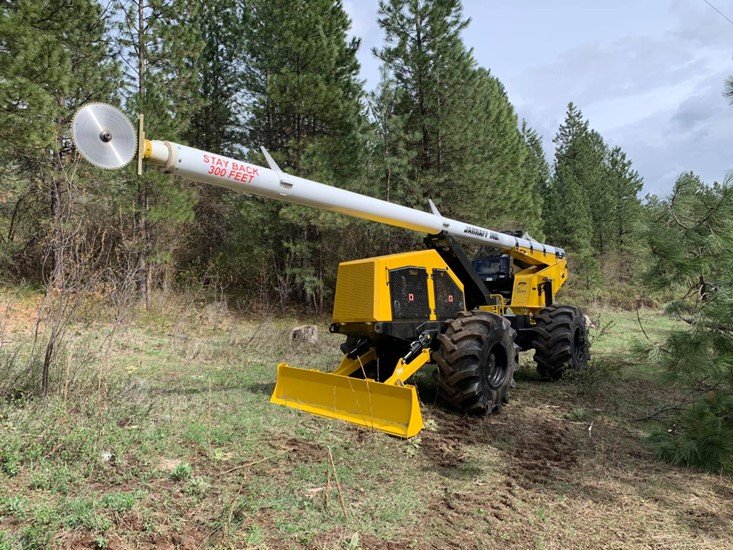

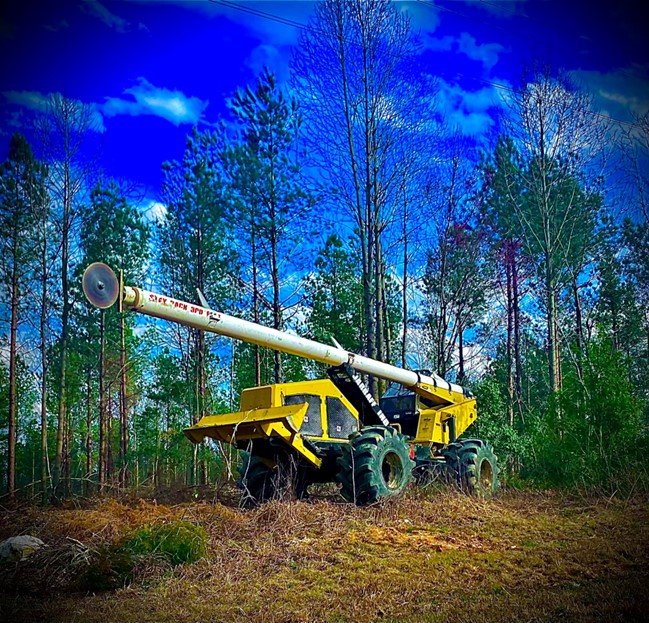

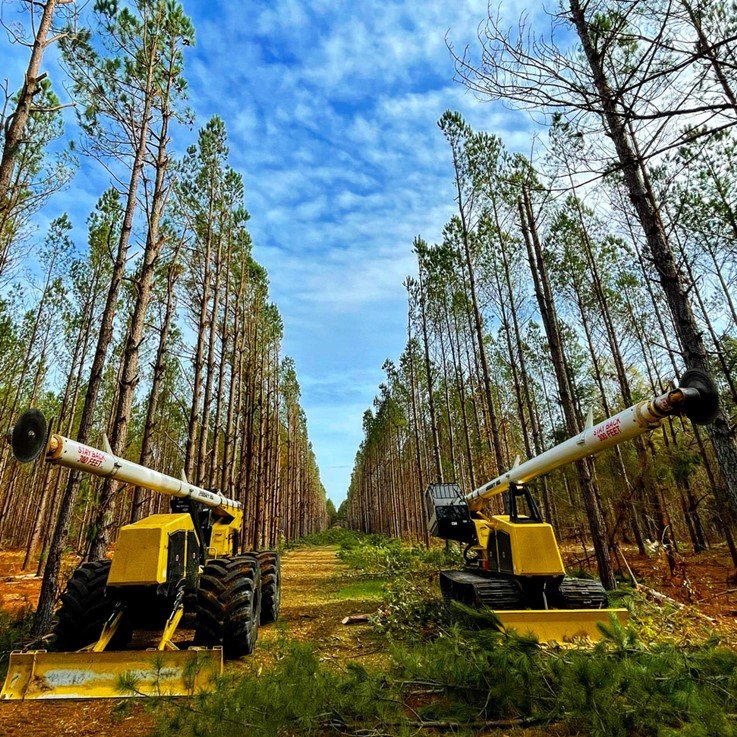

JARRAFF 4 wheel drive

JARRAFF 4 wheel drive

Most versatile configuration for a variety of terrains.

Power

Power

Stage IV - 97 kW / 130 HP
Stage IV - 97 kW / 130 HP
Weight

Weight

24,820 lbs
11,258 kg
Ground pressure

Ground pressure

6.7 psi
0.46 kg/cm2

Your Benefits

Maximum Efficiency

Maximum Efficiency

For forest service providers it is the most efficient and economical method of felling trees compared to alternative methods: less labour & higher productivity.

Fast & Precise

Fast & Precise

Precision cutting with a rotating saw head to achieve all angles even at maximum height. A quick through cut action prevents peeling backs and hanging limbs.

Maximum Safety

Maximum Safety

ROPs /FOPs certified cab provides the operator with the highest level of safety. ANSI 92.2 Category C dielectric compliance gives safety around power lines.

The smarter way to trim trees

The smarter way to trim trees

Fast. Safe. Efficient.

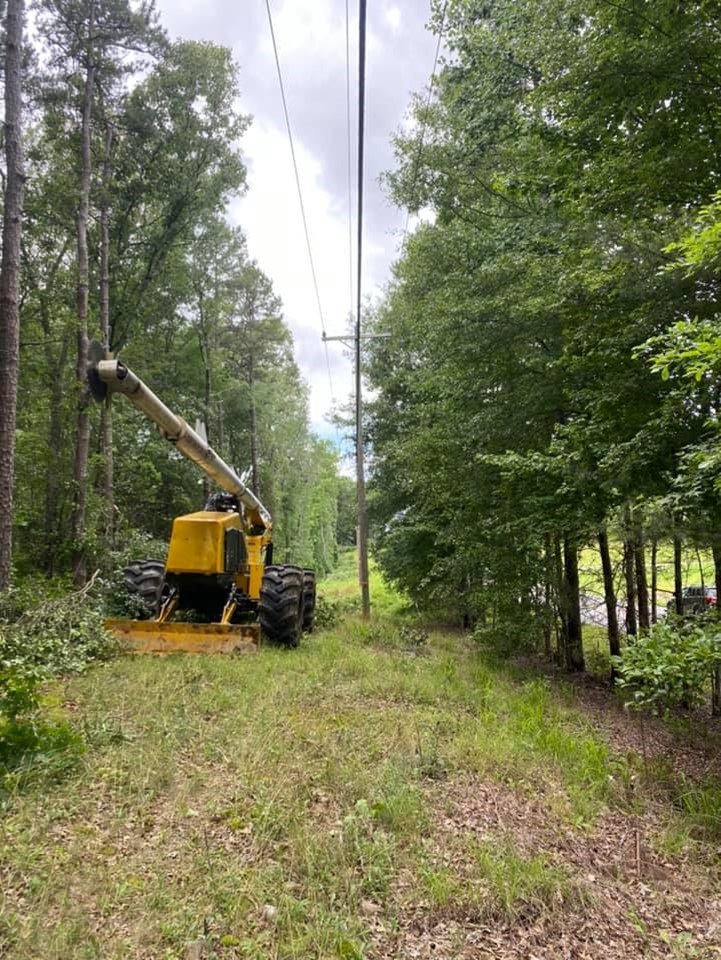

Maximize work safety and productivity compared to traditional right-of-way maintenance methods, all while operating from the comforts of a climate-controlled cab.

Features

180° rotatable 24" carbide-tipped saw blade at 3,000 RPM.

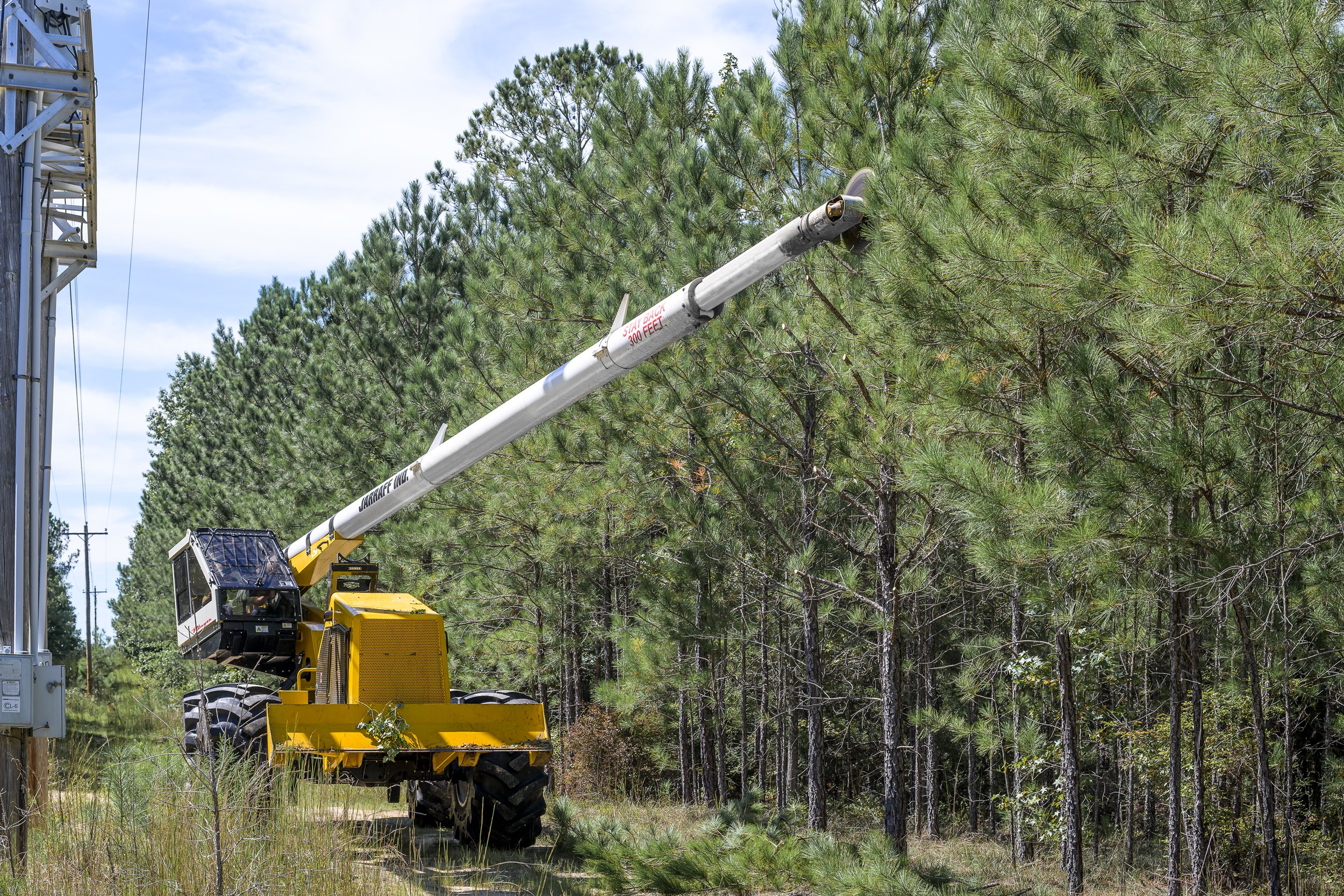

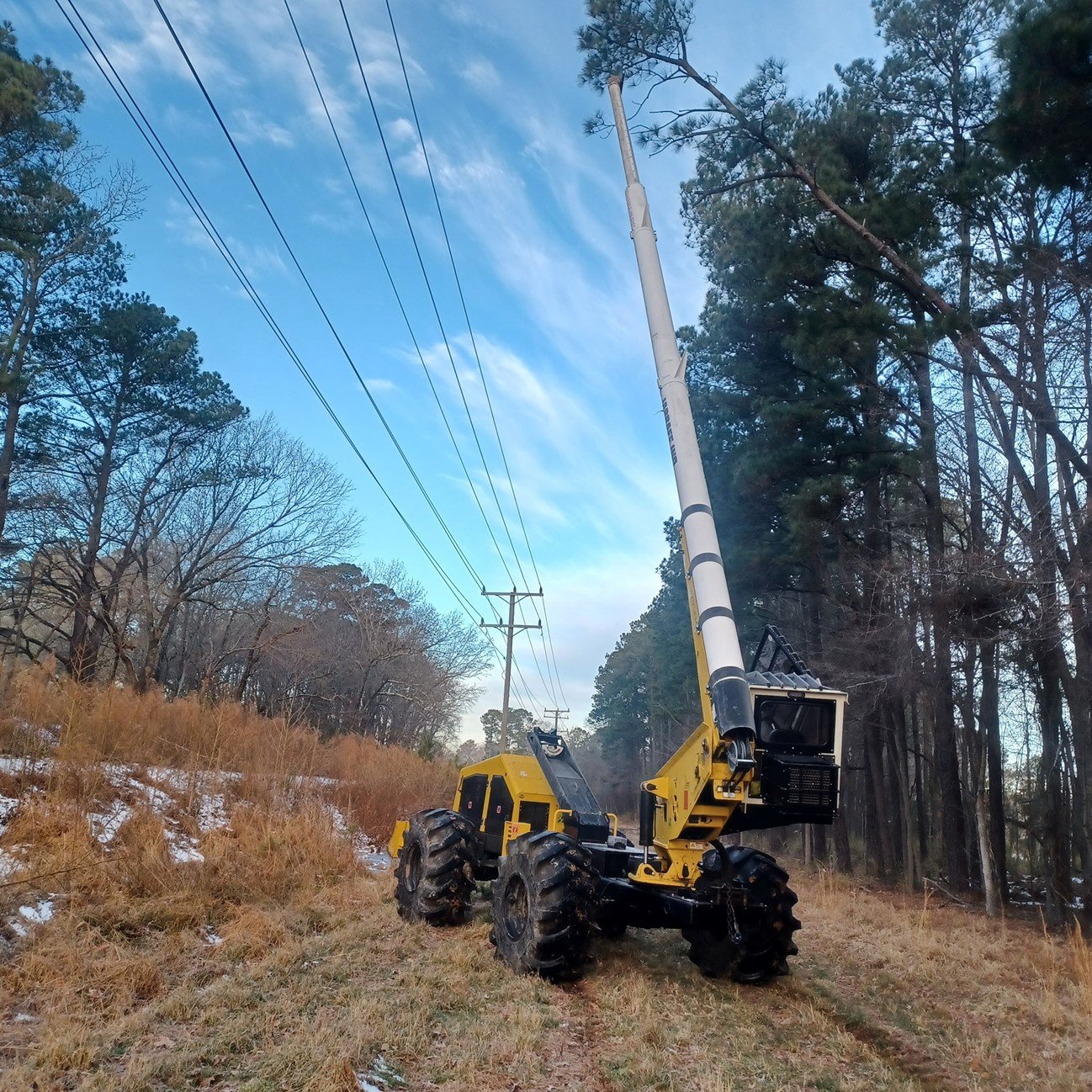

Telescoping di-electric fiberglass boom for a max operating height of up to 75 ft. ANSI 92.2 Category C dielectric compliance provides additional safety around power lines.

Reliable Cummins engine
(Tier-4f 97 kW/130 HP)
(Stage V 100 kW/134 HP)

The user passcode display offers push-to-start and important operating and engine monitoring in real-time.

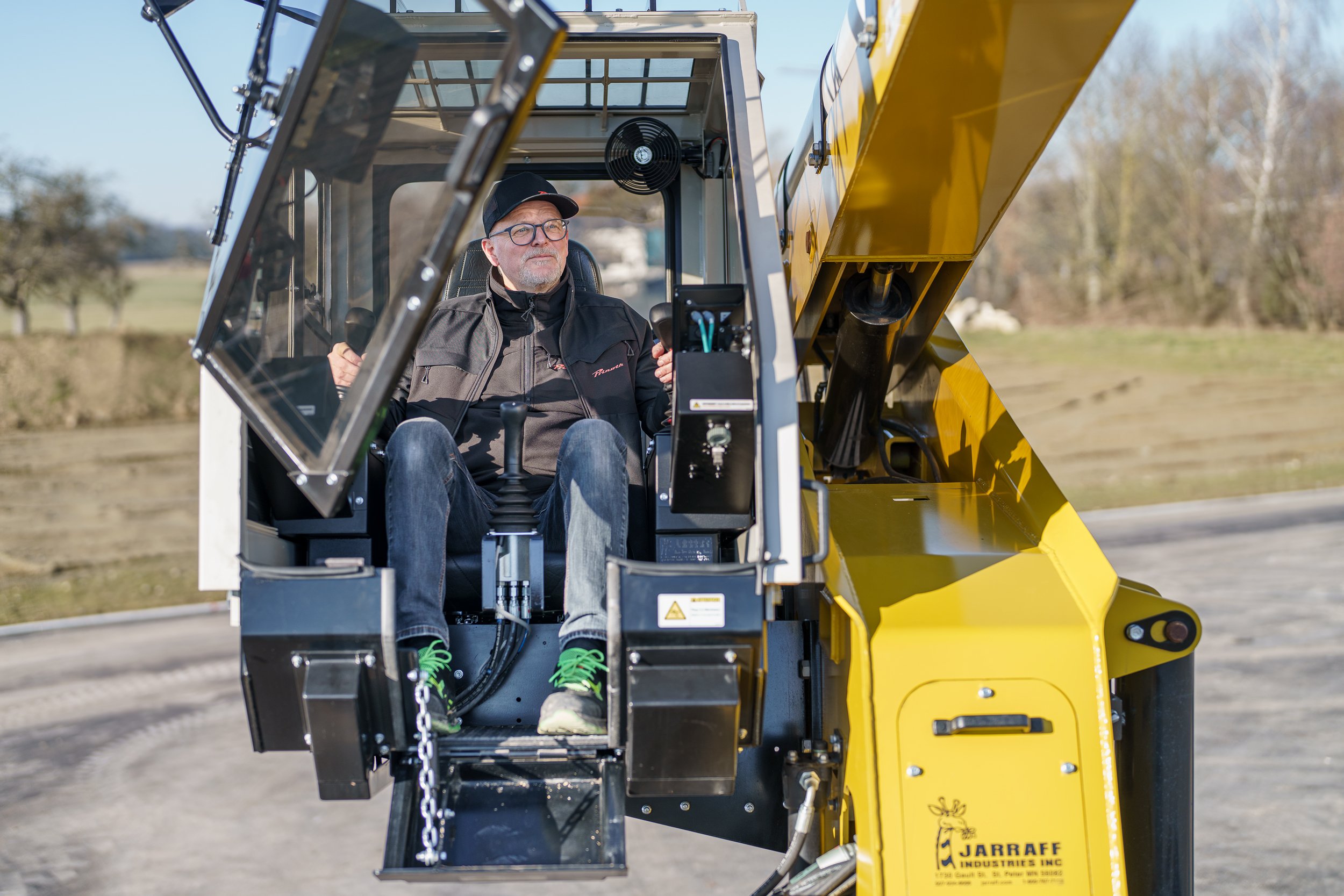

Foot pedal and joystick operation.

Clears trimmed material and aides in stability in difficult terrain.

20,000 lb. rear-mounted recovery winch. An additional front-mount winch is optional.

Technical data

Download (PDF)
  • Power

    Stage IV - 97 kW / 130 HP
    Stage IV - 97 kW / 130 HP
  • Weight

    24,820 lbs
    11,258 kg
  • Ground pressure

    6.7 psi
    0.46 kg/cm2
  • Total width

    Max. 10 ft, 4 in
    2.62 – 3.15 m
  • Total length

    41 ft, 6 in
    12.65 m
  • Travel Speed

    12.4 mph
    20 km/h
  • Working range

    0-75ft
    0- 23 m
  • Saw blade

    Ø 610 mm cuts at 3.200 min
    Ø 610 mm cuts at 3.200 min
  • Saw blade rotation

    180°
    180°
  • Tire size

    28 L x 26
    28 L x 26
  • Transmission

    Hydraulic transmission
    Hydraulic transmission

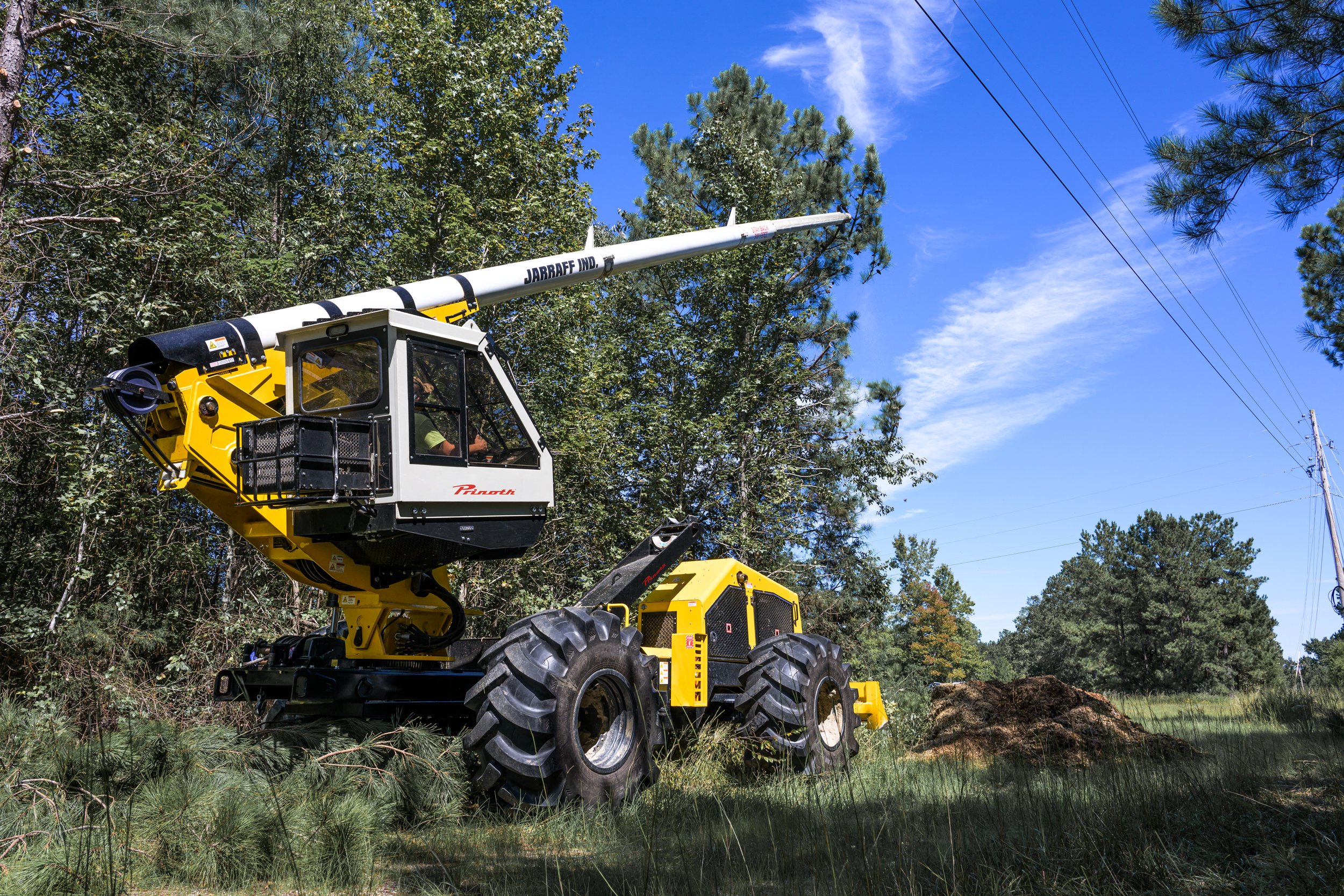

  • Boom with cabin

    360° rotation & 35° swiveling sidewise
    360° rotation & 35° swiveling sidewise
