GRIZZLY M450m
Home / Products / Attachments / PTO Driven Attachments / Grizzly Mulchers /

GRIZZLY M450m

GRIZZLY M450m

PTO driven forestry mulcher.

Power

Power

80 HP to 180 HP
59.6 kW to 134 kW
Rotor diameter

Rotor diameter

17.7 in
450 mm
Working width

Working width

74.8 in
1,900 mm

Your Benefits

Flexible mounting & performance

Flexible mounting & performance

The close center of gravity improves handling, as fewer counterweights are needed on the tractor. The three-point attachment frame allows flexible mounting.

Efficient & powerful

Efficient & powerful

The counter blade concept prevents large pieces of wood from being drawn into the housing, blocking the rotor, improving power demand and shredding quality.

Reliable & ready for use

Reliable & ready for use

Hydraulic hoses are all inside the housing and are kept very short outside, to avoid damages and downtimes.

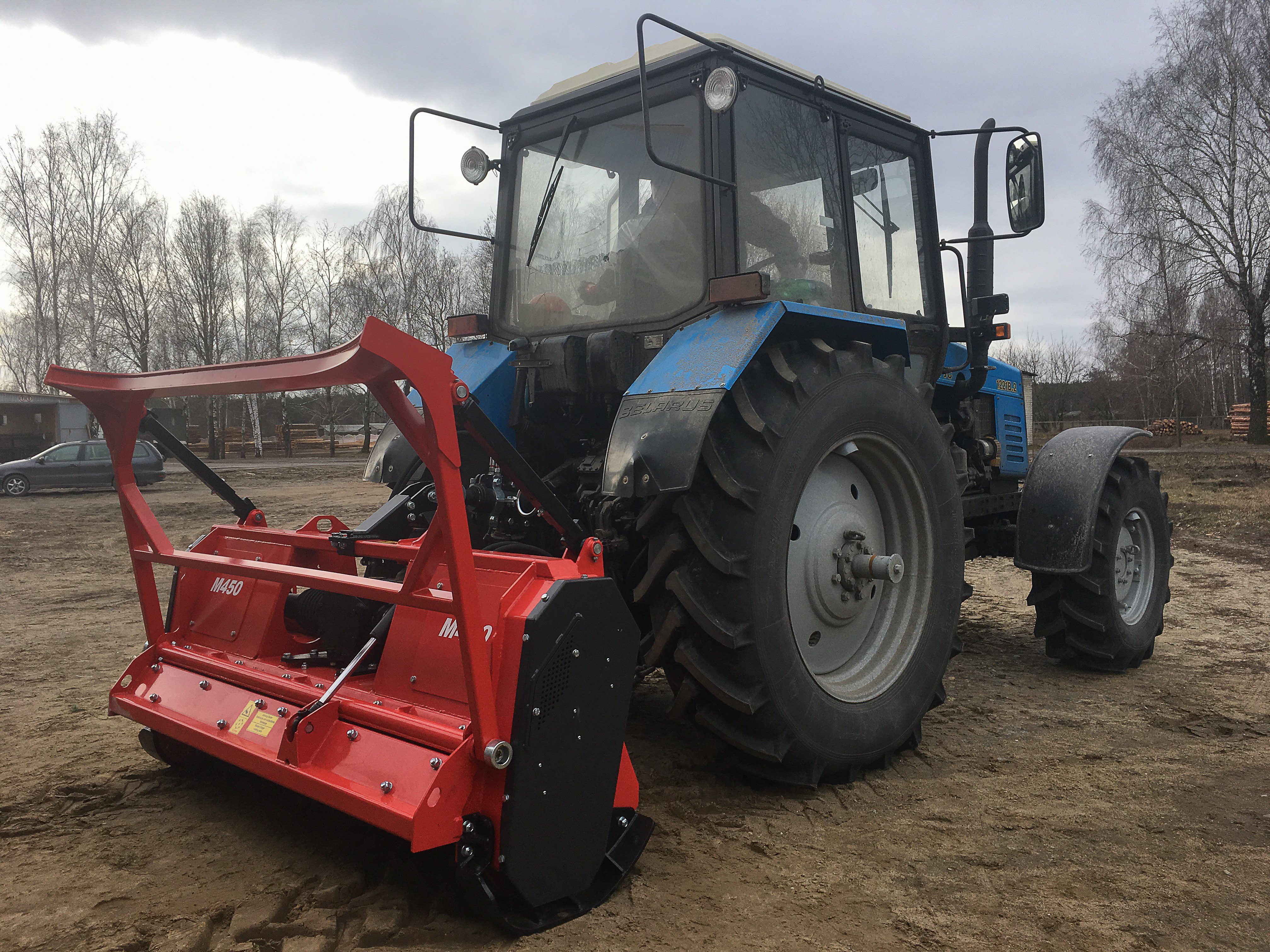

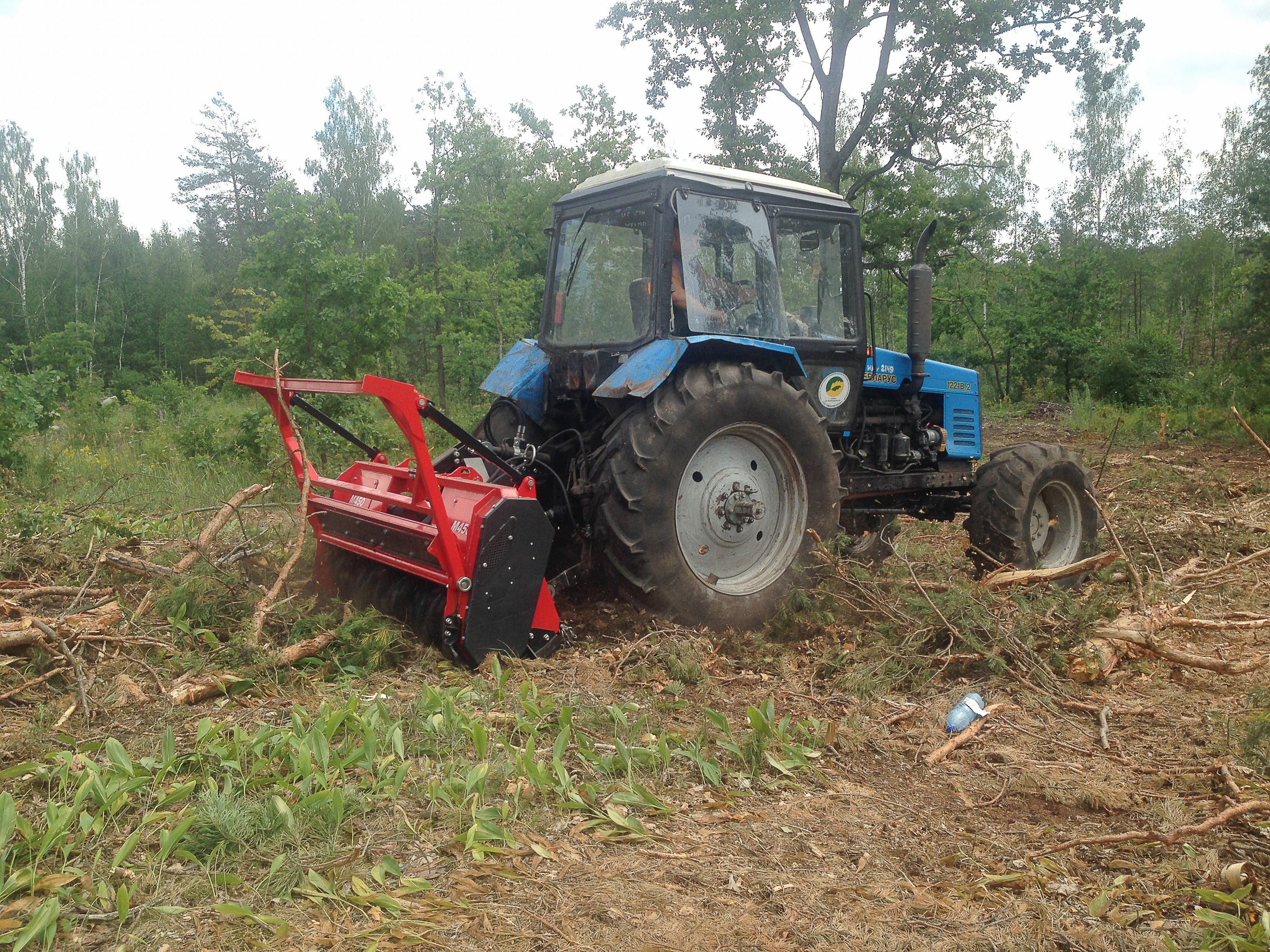

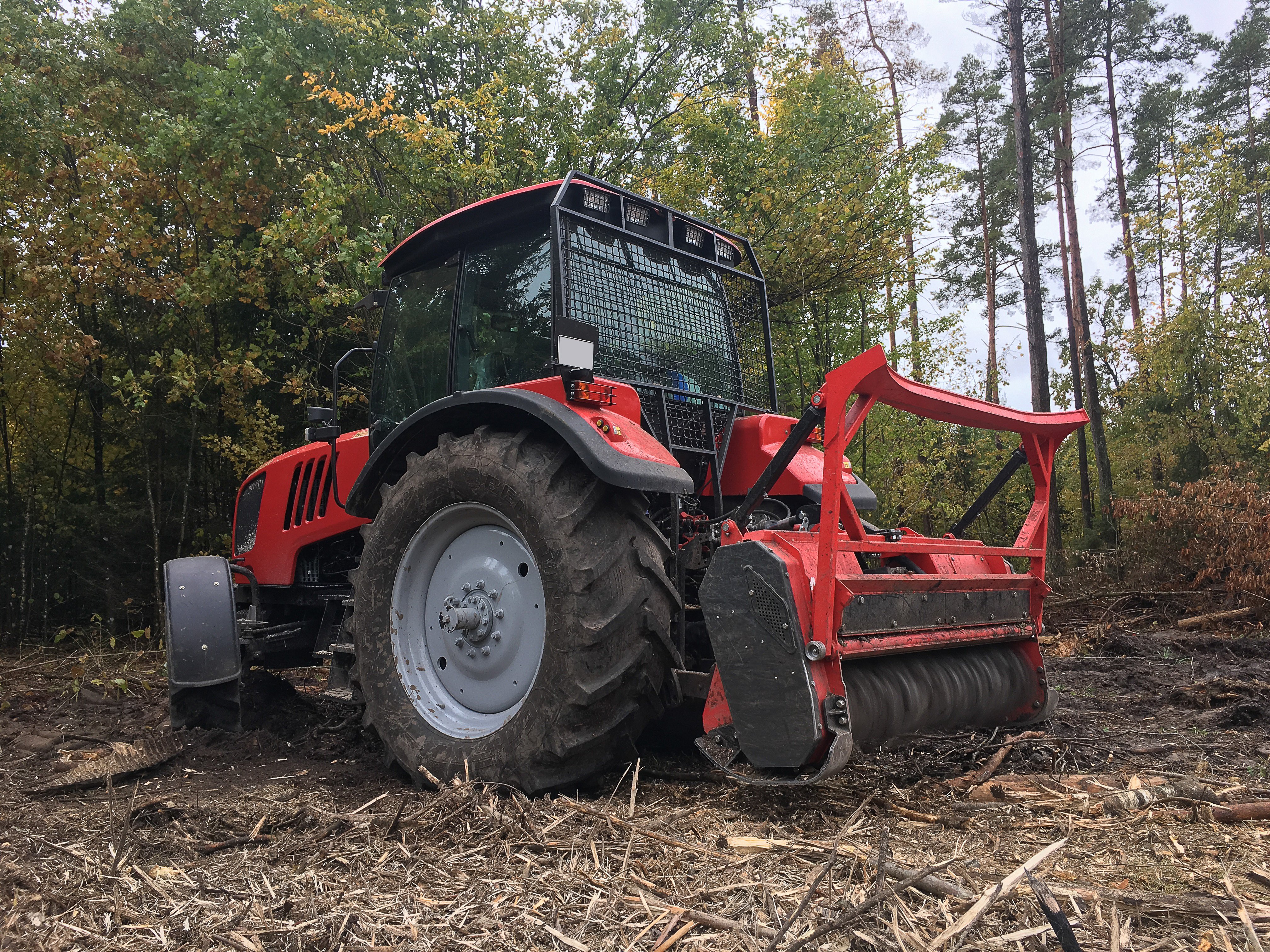

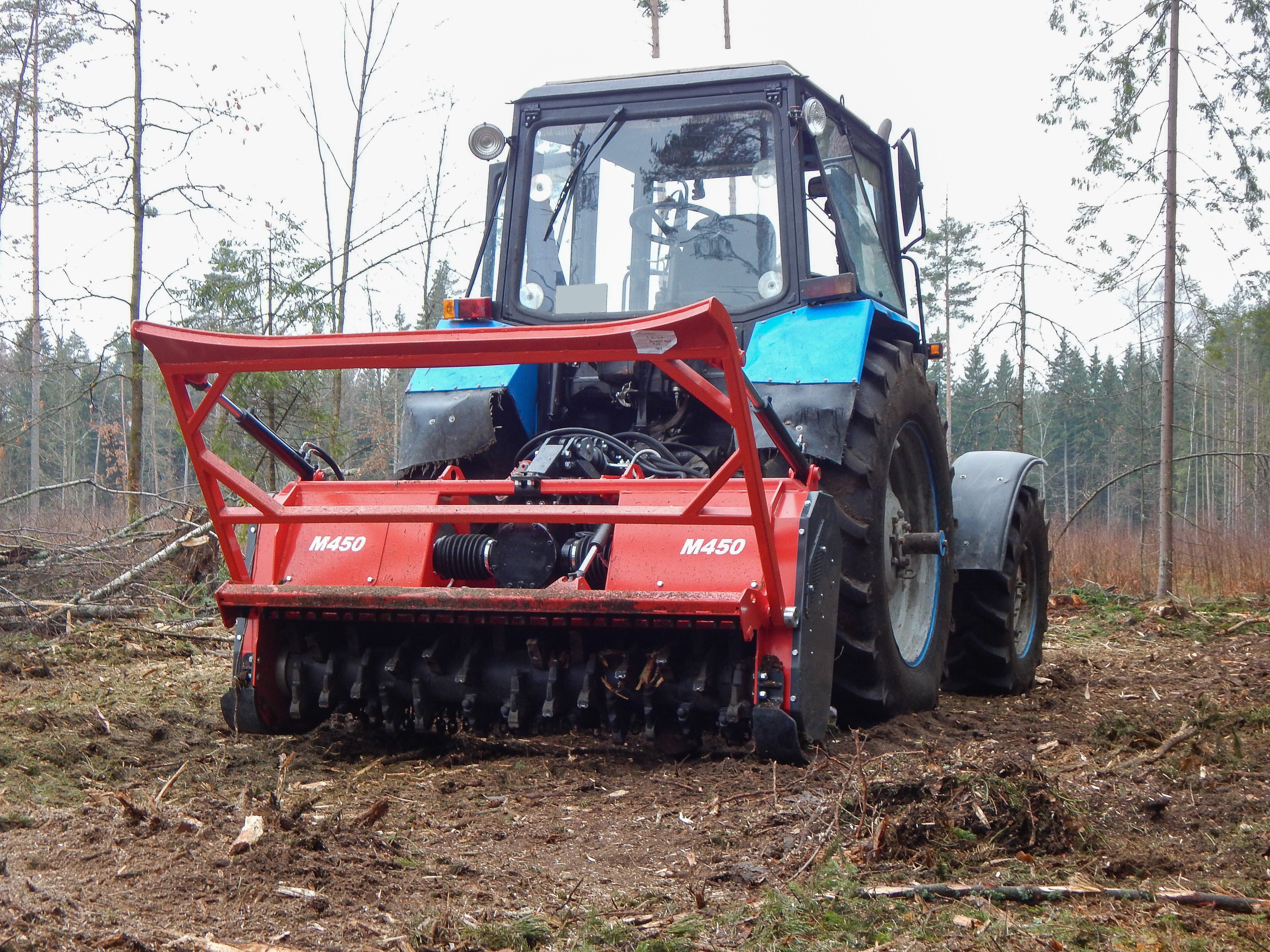

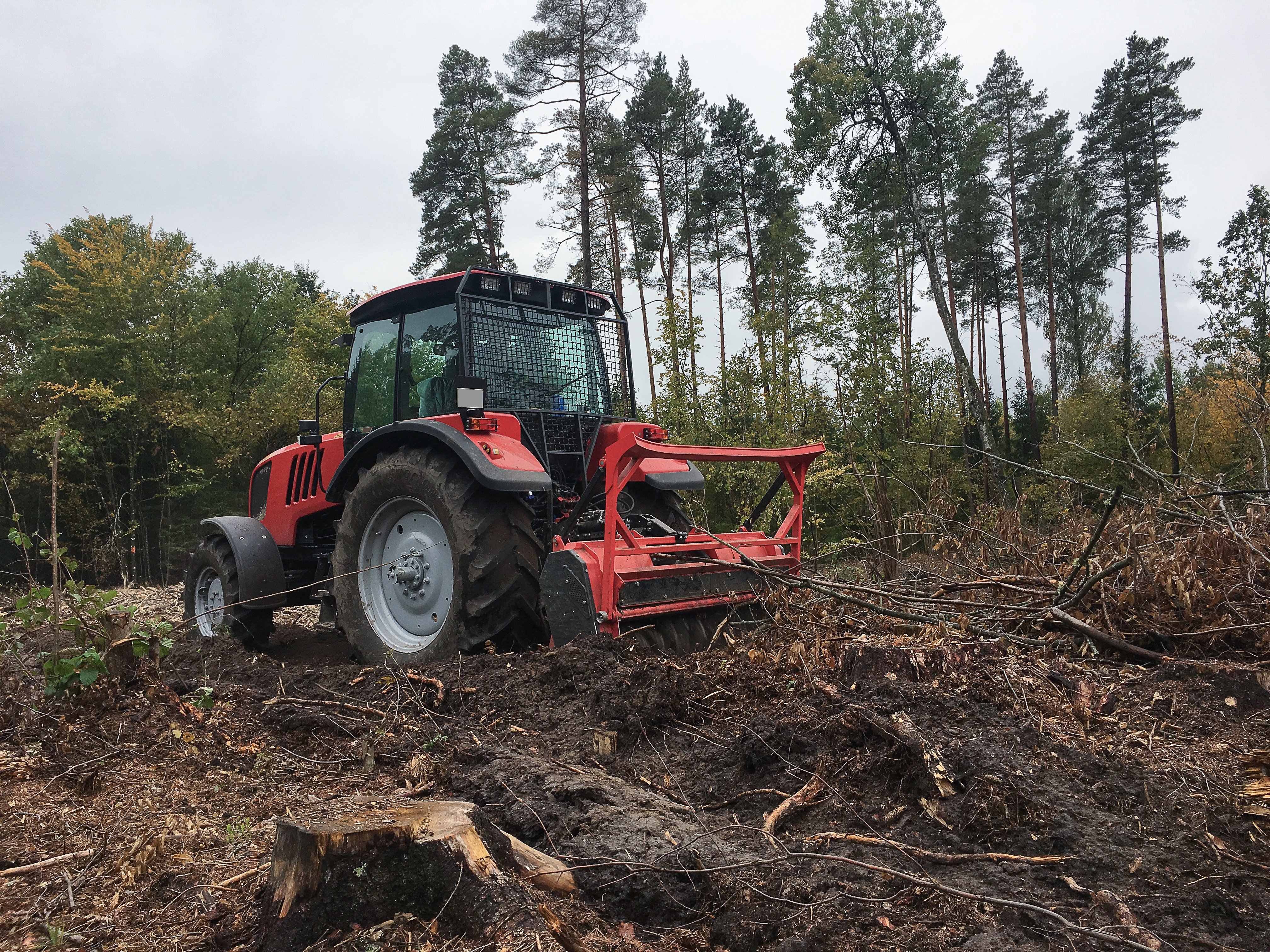

Forestry Mulcher, Ideal for light forestry work

The Grizzly M450m is a PTO driven forestry mulcher and is excellent for tractors for the power class of 80 - 180 HP. This Mulcher is ideal for shredding brush, branches and trees with a maximum diameter up to 25 cm (10 in).

Features

The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.

The push bar guides taller material into the rotor in a targeted and safe manner. A fixed or a hydraulic push bar are available.

Proven rotor technology with various BCS- or UPTs possible for excellent shredding quality and best mulching results.

A powerful one side drive (up to 90 HP) or a two sided drive (up to 180 HP) are available to bring the power to the rotor.

Due to the relatively vertical position, the center of gravity of the mulcher is very close to the tractor.

The lateral displacement enables to move the mulcher 300 mm either side to adapt it perfectly to the job.

For different applications there are standard or deep milling skids available.

The hydraulic flap is optional equipped with counter blades for additional shredding and perfect mulching results and provides extra protection while mulching.

The chain curtain provides extra protection while mulching.

Customized interfaces for simple mounting / demounting on various carriers with different options available.

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

Technical data

Download (PDF)

  • Power

    80 HP to 180 HP
    59.6 kW to 134 kW

  • Rotor diameter

    17.7 in
    450 mm

  • Working width

    74.8 in
    1,900 mm

  • Total width

    86.6 in
    2,200 mm

  • Weight

    2,866 lbs
    1,300 kg

  • Tools

    48 x UPTs | 40 x BCS
    48 x UPTs | 40 x BCS

  • Power

    100 HP to 180 HP
    74.5 kW to 134 kW

  • Rotor diameter

    17 7/10 in
    450 mm

  • Working Width

    86 2/3 in
    2,200 mm

  • Total width

    98 2/5 in
    2,500 mm

  • Weight

    3,218.7 lbs
    1,460 kg

  • Tools

    48 x BCS | 56 x UPTs
    48 x BCS | 56 x UPTs

  • Power

    120 HP to 180 HP
    89.4 kW to 134 kW

  • Rotor diameter

    17 7⁄10 in
    450 mm

  • Working Width

    106 1⁄3 in
    2,700 mm

  • Total width

    118 1⁄10 in
    3,000 mm

  • Weight

    3,395.1 lbs
    1,540 kg

  • Tools

    56 x BCS
    56 x BCS

Working in the forrest
