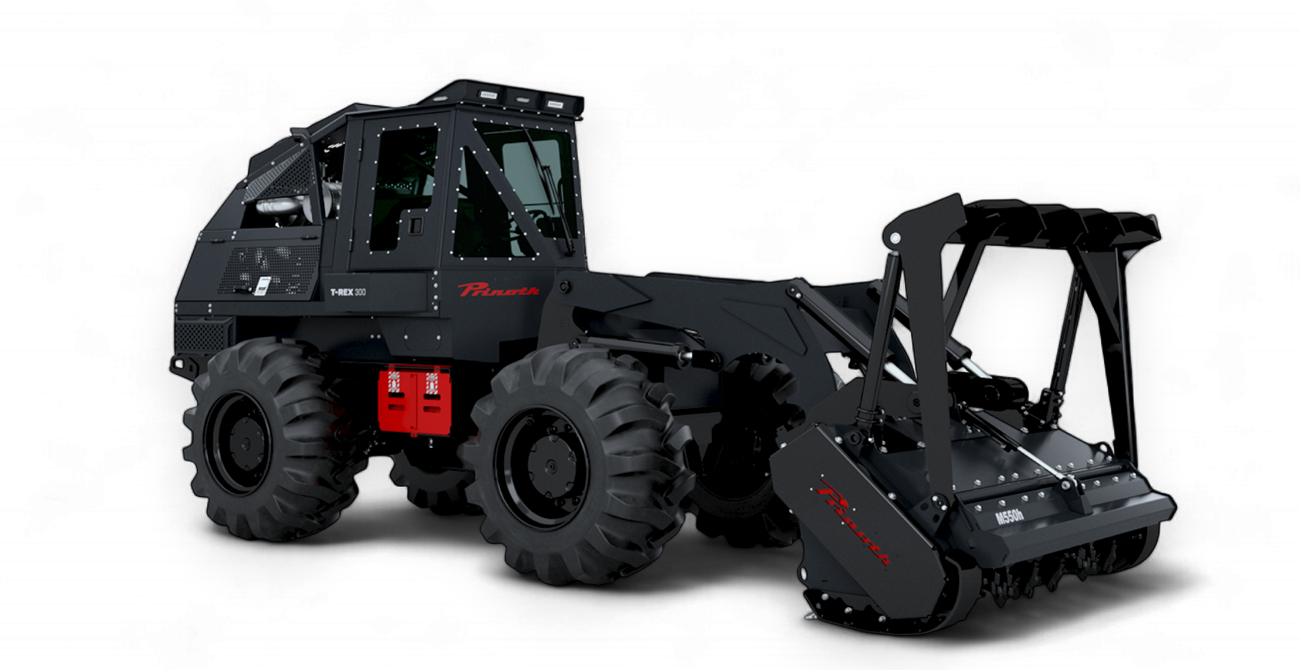

T-REX 300

T-REX 300

The ultimate brush cutter and land clearer.

Engine

Engine

Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm
Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm
Gradeability

Gradeability

25° slope / 46% grade
25° slope / 46% grade
Weight

Weight

32,000 lbs
16 ton

Your Benefits

Built to last

Built to last

Thanks to the design quality, its heavy-duty components, and the build the T-Rex is engineered to last 5 times longer than a comparable vehicle of its kind.

Save time and costs

Save time and costs

With low maintenance costs, higher efficiency on the job through its maneuverability and overall performance the T-Rex offers a lower total cost of ownership.

Rely on your T-Rex 300

Rely on your T-Rex 300

Every one of your projects has a time-sensitive nature. Our US made T-Rex 300 is vigorously tested to provide you reassurance.

Efficient and Effective.

The T-Rex combines maneuverability and raw brush cutting power with a compact, space efficient design; optimal for all site-prep and land clearing operations.

Features

Low ground pressure, excellent gradeability and a road speed of 14 mph /22 km/h make the 4-Wheel drive T-Rex 300 highly effective in a range of conditions.

The articulated frame of the T-Rex 300 provides precise movement and an ability to turn like no other brush cutter. This helps operators finish jobs quickly while preserving the soil without skidding to turn.

With a 260 hp Cummins engine offering torque coupled with the Cummins award-winning VGT™ Turbocharger, power is guaranteed from the get go. In its fourth decade of continuous improvement the engine offers maximum reliability, longer maintenance intervals and lower total cost of ownership.

The cab mounted inclinometers let the operator know the exact steepness of the slope and being ROPS and FOPS certified means maximum safety is provided for the operator. The rear view back up camera also includes an alarm which provides a clear view of what’s behind the unit while offering extra safety through a warning alarm of nearby obstacles.

For the operator climate control, an ergonomic joystick, and a touch screen control center offer maximum comfort. Additionally, the ergonomically designed cab means hours of operation without aches and pains and the all-round visibility make working on the job more relaxing.

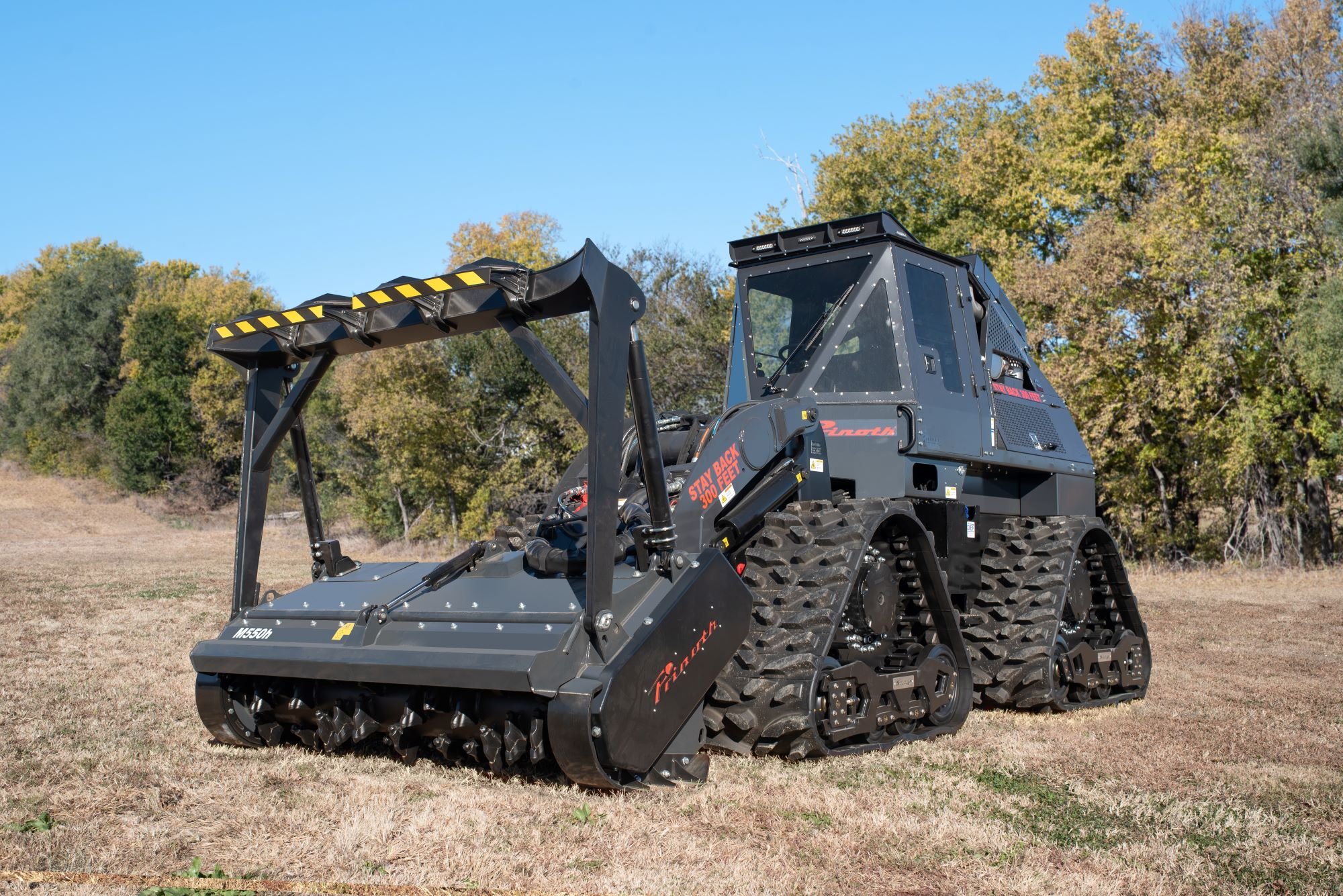

Choose between wheels or quad tracks for speed and maneuverability or traction and extra low ground pressure. Both models include hydrostatic all-time 4-wheel drive and an articulated undercarriage to help you get the job done faster.

The cutter head can be lifted over 11 feet / 3.3 meters high enabling it to clear brush and small trees efficiently and effectively.

Technical data

  • Engine

    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm
    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm
  • Gradeability

    25° slope / 46% grade
    25° slope / 46% grade
  • Weight

    32,000 lbs
    16 ton
  • Total width

    8 feet 6 inches
    2.5 meters
  • Ground pressure

    5.5 psi
    0.38 bar
  • Steering

    Articulated steering
    Articulated steering
  • Length

    24 feet
    7.3 meters
  • Height

    10 feet 4 inches
    3.15 meters
  • Ground Clearance

    24 inches
    61 cm
  • Featured Cutter Head

    Prinoth GRIZZLY M550h-2110/2410
    Prinoth GRIZZLY M550h-2110/2410
  • Road Speed

    9 mph
    14 km/h
  • Drive

    Hydrostatic
    Hydrostatic
  • Turning Radius

    13 feet
    3.9 meters
  • Fuel Capacity

    54 gallons
    204 liters
  • Winch

    20,000 pounds of pull
    9 tonnes of pull
  • Joystick

    Cutter head movement
    Cutter head movement
  • Foot pedal

    Travel
    Travel
  • Engine

    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm
    Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm
  • Gradeability

    25° slope / 46% grade
    25° slope / 46% grade
  • Weight

    25,900 lbs
    11.7 tonnes
  • Total width

    8 feet 6 inches
    2.5 meters
  • Ground pressure

    9.3 psi
    0.64 bar
  • Steering

    Articulated steering
    Articulated steering
  • Length

    24 feet
    7.3 meters
  • Height

    9 feet 11 inches
    3 meters
  • Ground Clearance

    19 inches
    48 cm
  • Featured Cutter Head

    Prinoth GRIZZLY M550h-2110/2410
    Prinoth GRIZZLY M550h-2110/2410
  • Road Speed

    14 mph
    22 km/h
  • Drive

    Hydrostatic
    Hydrostatic
  • Turning Radius

    13 feet
    3.9 meters
  • Wheels/Tires

    710/45-26.5 20 Ply Forestry
    710/45-26.5 20 Ply Forestry
  • Fuel Capacity

    54 gallons
    204 liters
  • Winch

    20,000 pounds of pull
    9 tonnes of pull
  • Joystick

    Cutter head movement
    Cutter head movement
  • Foot pedal

    Travel
    Travel
