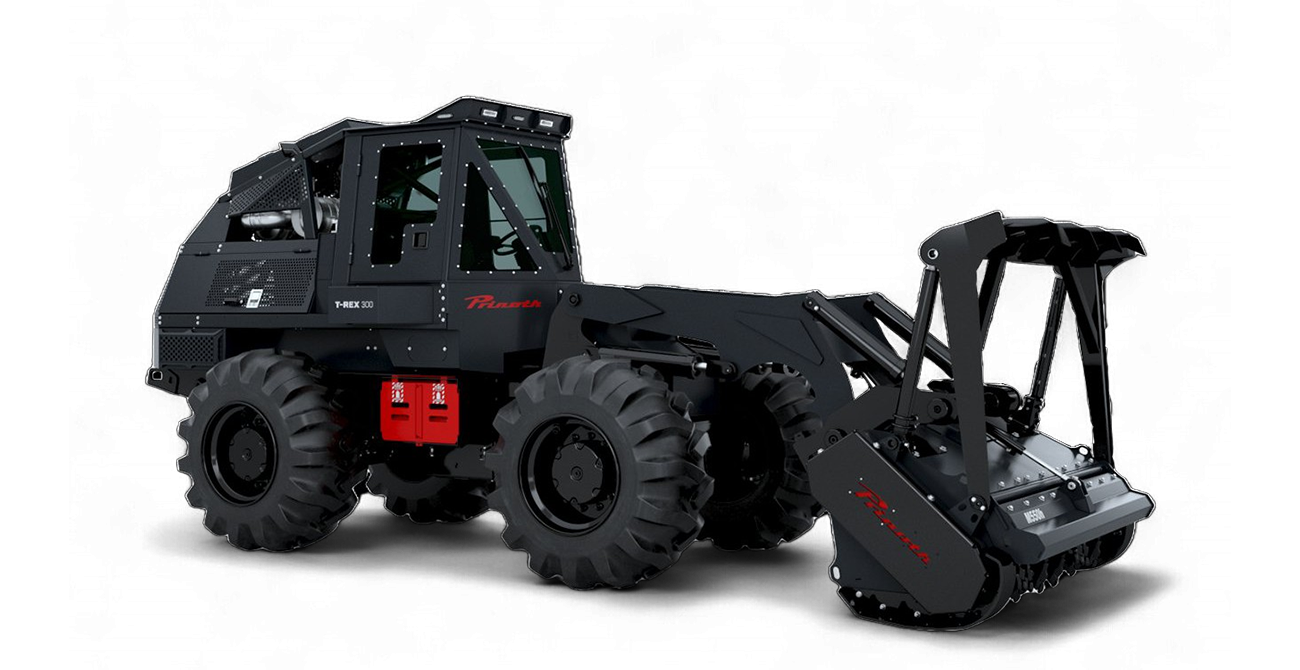

T-REX 300
The ultimate brush cutter and land clearer combing power with maneuverability.
Engine
Gradeability
Weight
Efficient and Effective.
The T-Rex combines maneuverability and raw brush cutting power with a compact, space efficient design; optimal for all site-prep and land clearing operations.
Low ground pressure, excellent gradeability and a road speed of 14 mph /22 km/h make the 4-Wheel drive T-Rex 300 highly effective in a range of conditions.
The articulated frame of the T-Rex 300 provides precise movement and an ability to turn like no other brush cutter. This helps operators finish jobs quickly while preserving the soil without skidding to turn.
With a 260 hp Cummins engine offering xyz torque coupled with the Cummins award-winning VGT™ Turbocharger, power is guaranteed from the get go. In its fourth decade of continuous improvement the engine offers maximum reliability, longer maintenance intervals and lower total cost of ownership.
The cab mounted inclinometers let the operator know the exact steepness of the slope and being ROPS and FOPS certified means maximum safety is provided for the operator. The rear view back up camera also includes an alarm which provides a clear view of what’s behind the unit while offering extra safety through a warning alarm of nearby obstacles.
For the operator climate control, an ergonomic joystick, and a touch screen control center offer maximum comfort. Additionally, the ergonomically designed cab means hours of operation without aches and pains and the all-round visibility make working on the job more relaxing.
Choose between wheels or quad tracks for speed and maneuverability or traction and extra low ground pressure. Both models include hydrostatic all-time 4-wheel drive and an articulated undercarriage to help you get the job done faster.
The cutter head can be lifted over 11 feet / 3.3 meters high enabling it to clear brush and small trees efficiently and effectively.
Technical data
Download (PDF)-
Engine
Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpmCummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm -
Gradeability
25° slope / 46% grade25° slope / 46% grade -
Weight
32,000 lbs16 ton -
Total width
8 feet 6 inches2.5 meters -
Ground pressure
5.5 psi0.38 bar -
Steering
Articulated steeringArticulated steering
-
Length
24 feet7.3 meters -
Height
10 feet 4 inches3.15 meters -
Ground Clearance
24 inches61 cm -
Featured Cutter Head
Prinoth GRIZZLY M550h-2110/2410Prinoth GRIZZLY M550h-2110/2410 -
Road Speed
9 mph14 km/h -
Drive
HydrostaticHydrostatic -
Turning Radius
13 feet3.9 meters -
Fuel Capacity
54 gallons204 liters -
Winch
20,000 pounds of pull9 tonnes of pull -
Joystick
Cutter head movementCutter head movement -
Foot pedal
TravelTravel
-
Engine
Cummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpmCummins 6.7 L diesel, EPA Tier 4 final, 260 hp @ 2200 rpm -
Gradeability
25° slope / 46% grade25° slope / 46% grade -
Weight
25,900 lbs11.7 tonnes -
Total width
8 feet 6 inches2.5 meters -
Ground pressure
9.3 psi0.64 bar -
Steering
Articulated steeringArticulated steering
-
Length
24 feet7.3 meters -
Height
9 feet 11 inches3 meters -
Ground Clearance
19 inches48 cm -
Featured Cutter Head
Prinoth GRIZZLY M550h-2110/2410Prinoth GRIZZLY M550h-2110/2410 -
Road Speed
14 mph22 km/h -
Drive
HydrostaticHydrostatic -
Turning Radius
13 feet3.9 meters -
Wheels/Tires
710/45-26.5 20 Ply Forestry710/45-26.5 20 Ply Forestry -
Fuel Capacity
54 gallons204 liters -
Winch
20,000 pounds of pull9 tonnes of pull -
Joystick
Cutter head movementCutter head movement -
Foot pedal
TravelTravel
