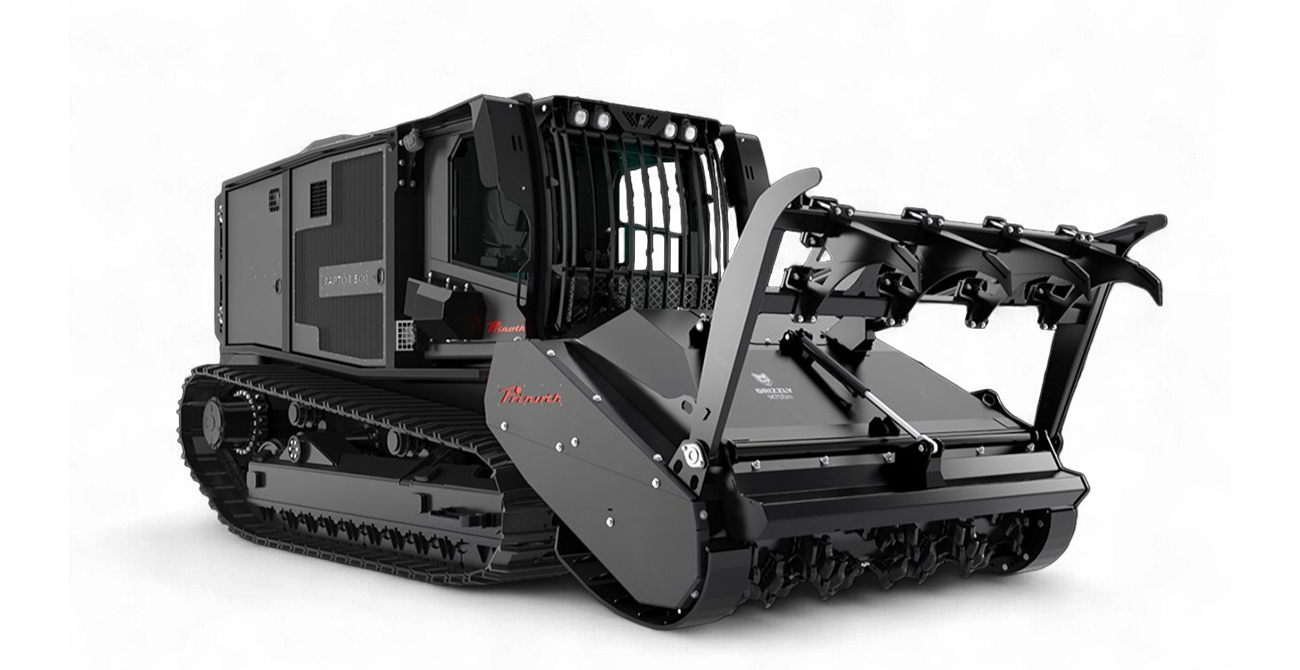

RAPTOR 500
Designed for strong and challenging forestry work in rough terrain.
Engine
Power
Tank capacity
Strong and reliable in all terrains
The Raptor 500 is characterized by its particularly soil-protecting properties, particularly when it comes to removing storm damage as the basis for reforestation. With almost 19 tons at 440 HP, it is a lightweight in its class.
The Raptor 500 with the powerful M700m mulching attachment with hydraulic push bar and flap, efficient counter blades and the patented UPTs rotor system ensures perfect mulching results.
The 321 kW / 440 hp 6-cylinder Cummins L9, Stage V/T4f provides the user with sufficient power reserves in all application areas.
The turbo clutch ensures soft starting of the rotor, this prevents heavy torque peaks and protects the engine. That means stalling of the rotor will not stall the engine. Also under extreme working conditions the entire drive line is protected from shock loads.
The powerful M700m mulching attachment with hydraulic push bar and flap, efficient counter blades and the patented UPTs rotor system ensure perfect mulching results.
The shape of the undercarriage protects the vehicle in case of barriers like stumps and rocks and simplifies backwards rescue. Less stress, better self-cleaning effect and better off-road mobility.
Every side of the Raptor can turn around the oscillating axle. This provides additional comfort for the driver and lowers the stress to the vehicle and drive due to vibration, particularly at high speed. Furthermore, damages due to shear stress and thrust decrease. The movable undercarriages ensure maximum driving and working comfort and increase the service life of the entire vehicle.
The mechanical drive HDDL transmits the complete power to the attachment with minimal losses. This reduces the fuel consumption and enables also a large excavation height. In addition the drive line is equipped with a turbo clutch, which ensures soft starting of the rotor. This prevents heavy torque peaks and protects the engine.
Cabin with rollover protection and protection against falling objects. Cab fulfills following standards: ROPS / FOPS / OPS.
Powerful LED work lights and ad¬ditional service lighting for round the clock operation.
Clearly arranged, the operator has all functions and parameters at a glance. In addition to comprehensive information, the intuitive display (color 7” display) also sup¬ports fault diagnosis of the machine and engine.
Highest standard in seating quality, comfortable, ergonomic and heated.
To get access to the components under the cabin, it can be tilted with a hydraulic cylinder to grant optimal accessibility.
Only filtered air is passed into the cabin. The inside of the cab is pressurized. This helps prevents dust and dirt from entering the cabin from outside.
An electronic system regulates the delivery rate of the axial piston pumps for the traction drive according to engine speed. For tough jobs, i.e., when there is high resistance on the rotor, the traction drive automatically slows down without the driver having to control it manually. This reduces the strain on the rotor.
The Speed Control Function allows the operator to save the working speed and makes it easier for the operator to work with the machine.
Air pressure system for connecting equipment for maintenance or service and for cleaning the front window.
This function automatically reduces the load on the lifting frame, it increases the performance of the machine and the life time of the components. The attachment floats over and adapts to any uneven ground.
Technical data
Download (PDF)-
Engine
Cummins L9, Stage V/T4fCummins L9, Stage V/T4f -
Power
440 HP321 kW -
Tank capacity
132 gal500 l -
Travel Speed
4.97 mph8 km/h -
Working width
91 in2,300 mm -
Total working width with mulcher
110 in2,800 mm
-
Height
109 in2,778 mm -
Length
285 in7,230 mm -
Weight with mulcher
46,518 lbs21,100 kg -
Rotor diameter
27.6 in700 mm -
Tools
56 UPTs56 UPTs -
Ground pressure with mulcher
5.6 psi390 g/cm² -
Gradeability sideways / frontal
30° / 45°30° / 45°
