OX R1000m

OX R1000m

The strip tiller Ox R1000m is ideal for tractors with an output of 185 to 360 hp.

Power

Power

185-360 HP
185-360 HP
Working depth

Working depth

up to 17.7 in

(dependent on ground conditions)

up to 450 mm

(dependent on ground conditions)

Working width

Working width

17.7 in
450 mm

Your Benefits

Less maintenance, more efficiency

Less maintenance, more efficiency

The robust housing with an easily replaceable Hardox wear plate significantly reduces maintenance time and ensures reliability and durability.

Safety in<br>soil cultivation

Safety in
soil cultivation

The protective flap ensures precise placement of mulch material, while the chain guard curtain provides additional safety.

Optimal growth conditions

Optimal growth conditions

An optional deep loosener creates ideal conditions for root growth. An optional gearbox cooler protects drive components during high-performance operation.

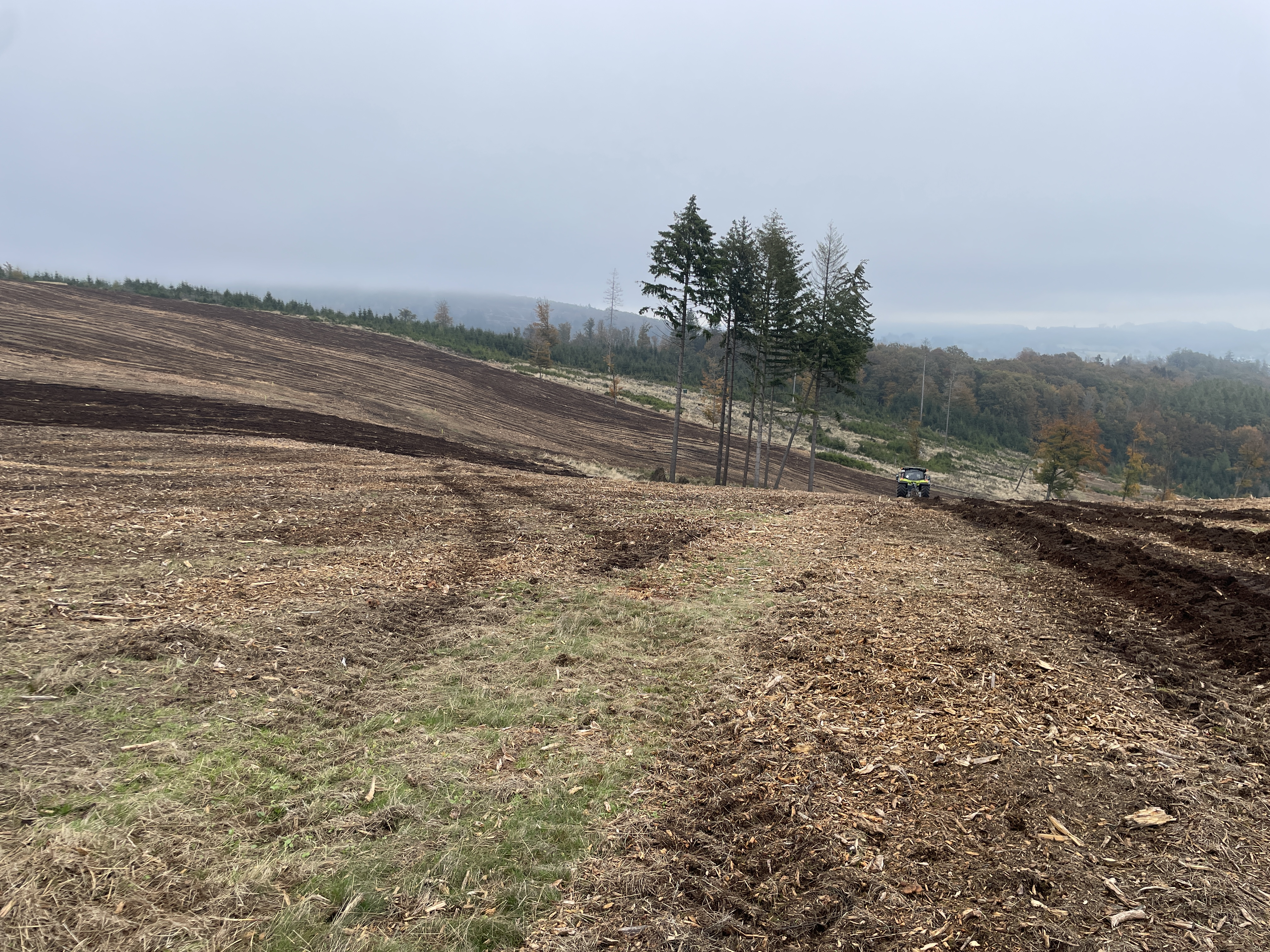

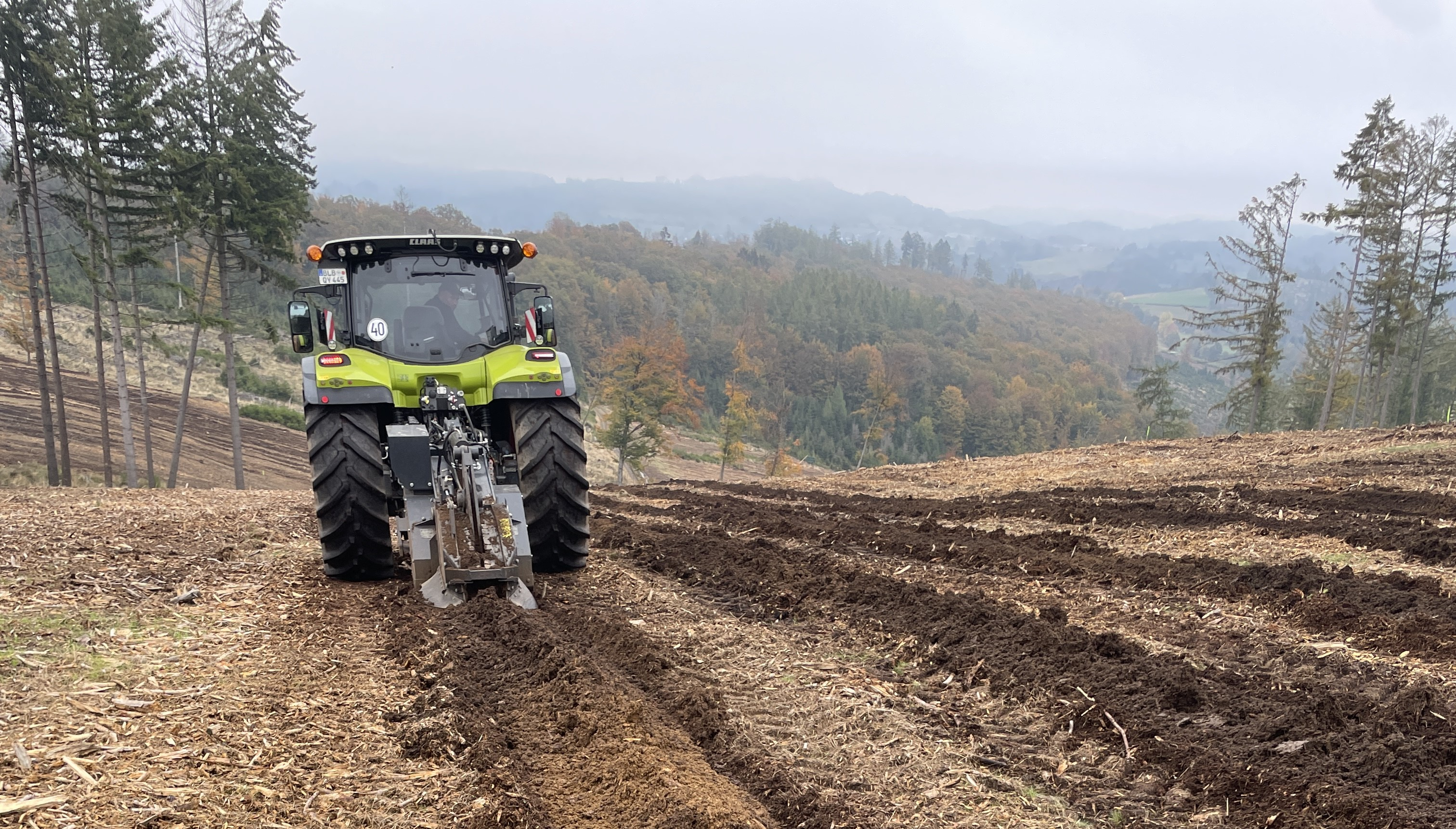

Preparation planting strips made easy

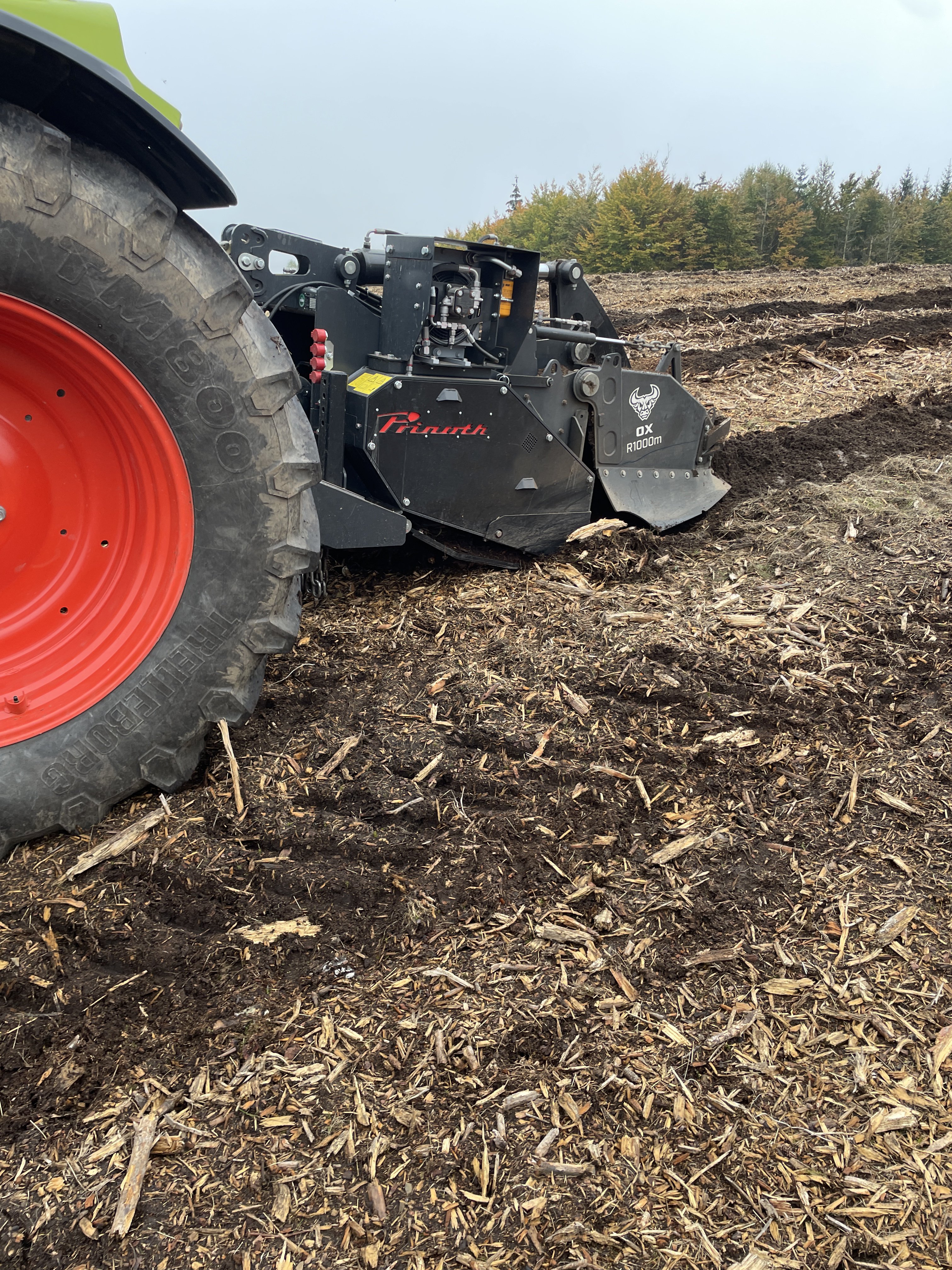

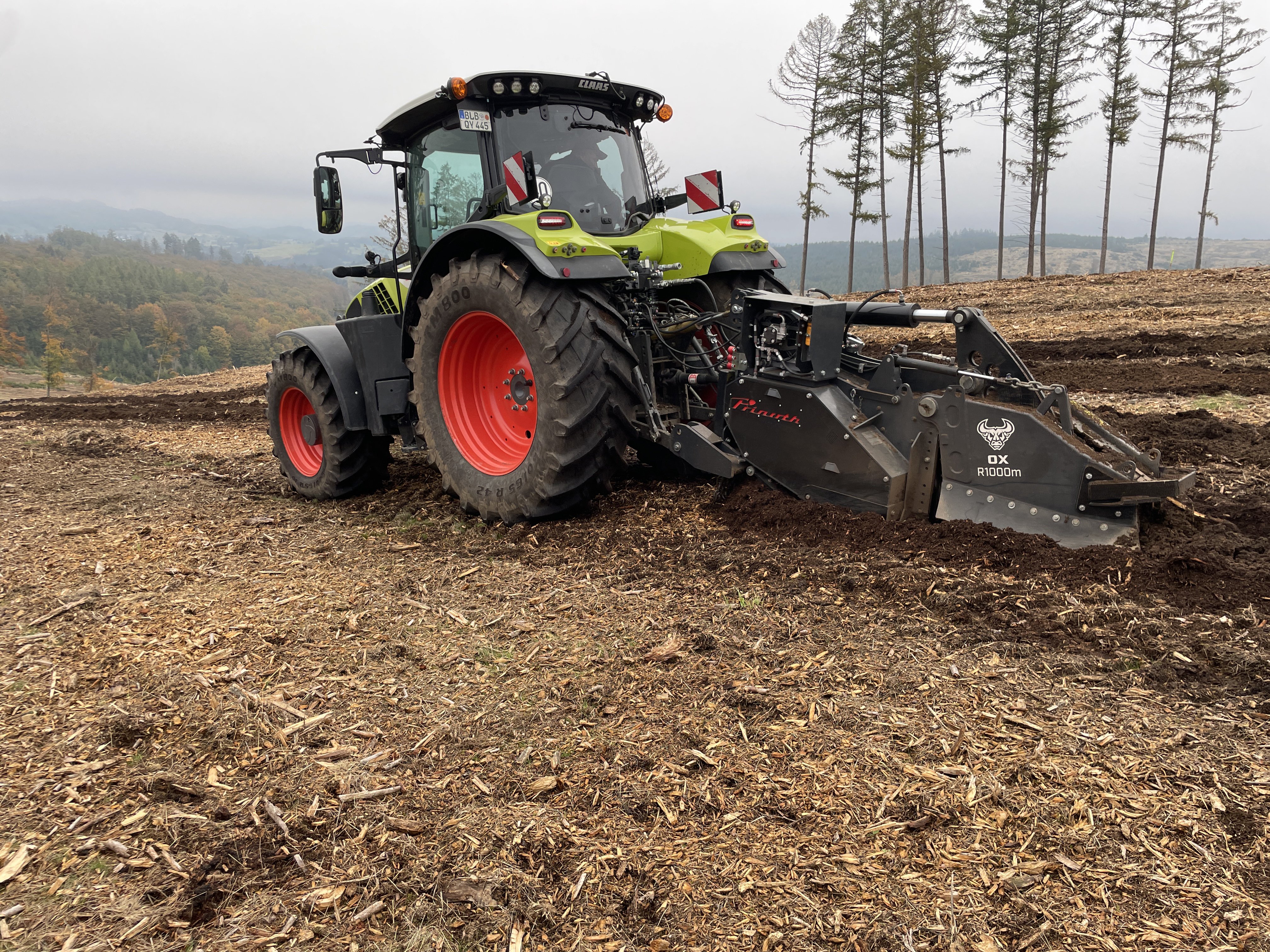

The strip tiller Ox R1000m (for tractors with 185 to 360 HP) was specifically designed for the preparation of planting strips. It enables targeted soil cultivation for efficient and sustainable planting.

It is ideally suited for the reforestation of natural disaster areas or the cultivation of plantations, as well as use in erosion-prone regions.

Features

Reduce maintenance times with the easily replaceable, bolt on wear plate in the Hardox housing.

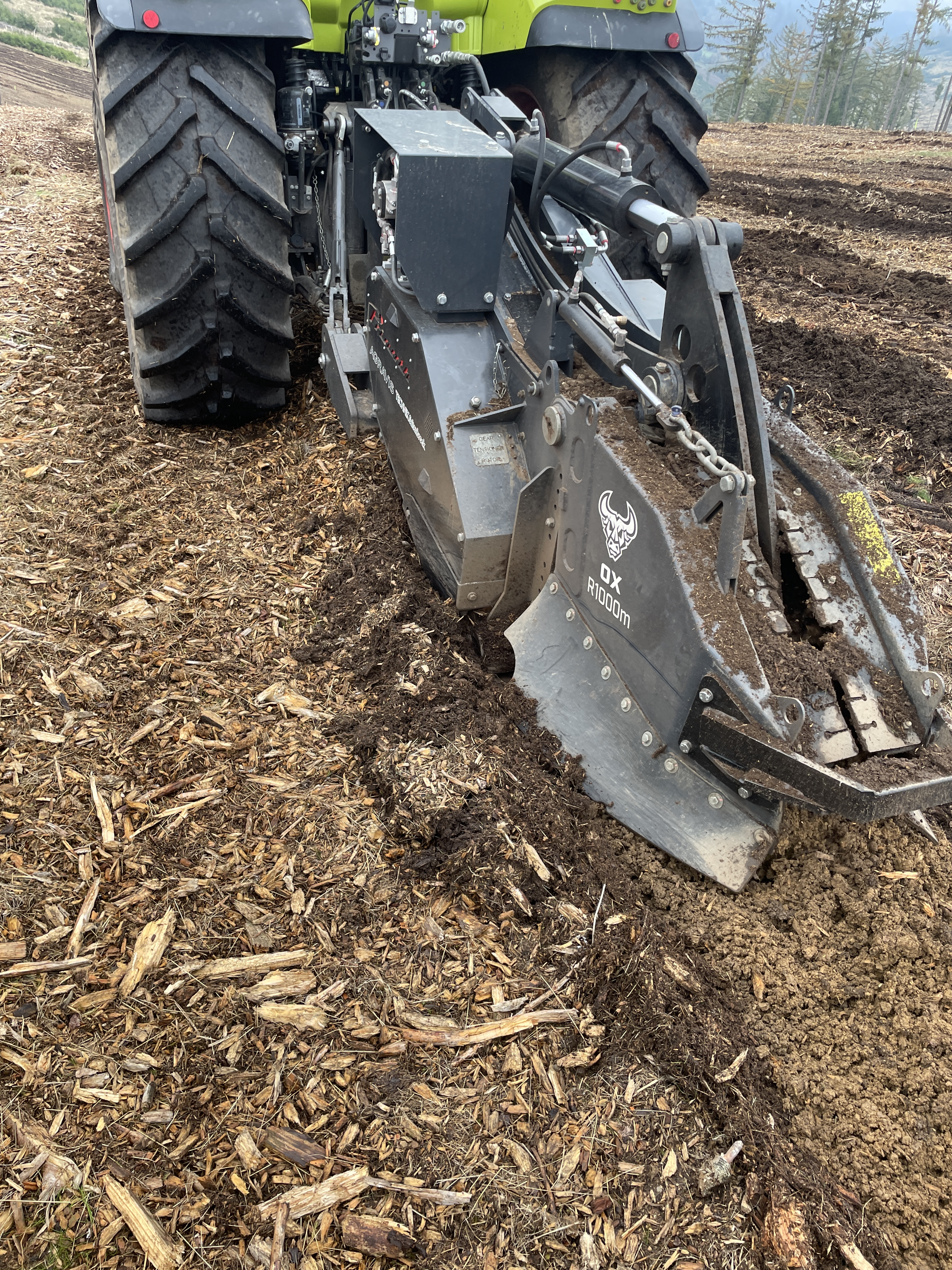

Mulch material is optimally deposited in the planting strip.

Offers additional protection from flying debris when milling.

For power transmission with belt tensioner: efficient power transmission to the rotor.

The UPT tool system, arranged in a weight optimized manner on the rotor, ensures perfect shredding with an optimal cutting pattern.

The deep loosener can be adjusted to 5 positions, allowing for loosening below the milling soil, up to 8 in (200 mm) beneath the rotor, for optimal plant growth.

Recommended from 290 hp, for additional cooling for the protection of the drive components.

Technical data

Download (PDF)
  • Power

    185-360 HP
    185-360 HP
  • Working depth

    up to 17.7 in

    (dependent on ground conditions)

    up to 450 mm

    (dependent on ground conditions)

  • Working width

    17.7 in
    450 mm
  • Total width

    47.2 in
    1,200 mm
  • Weight

    5,710 lbs

    (the weight depends on the configuration of the machine)

    2,590 kg

    (the weight depends on the configuration of the machine)

  • Rotor diameter

    39.4 in
    1000 mm
  • Tools

    18 x UPT09
    18 x UPT09

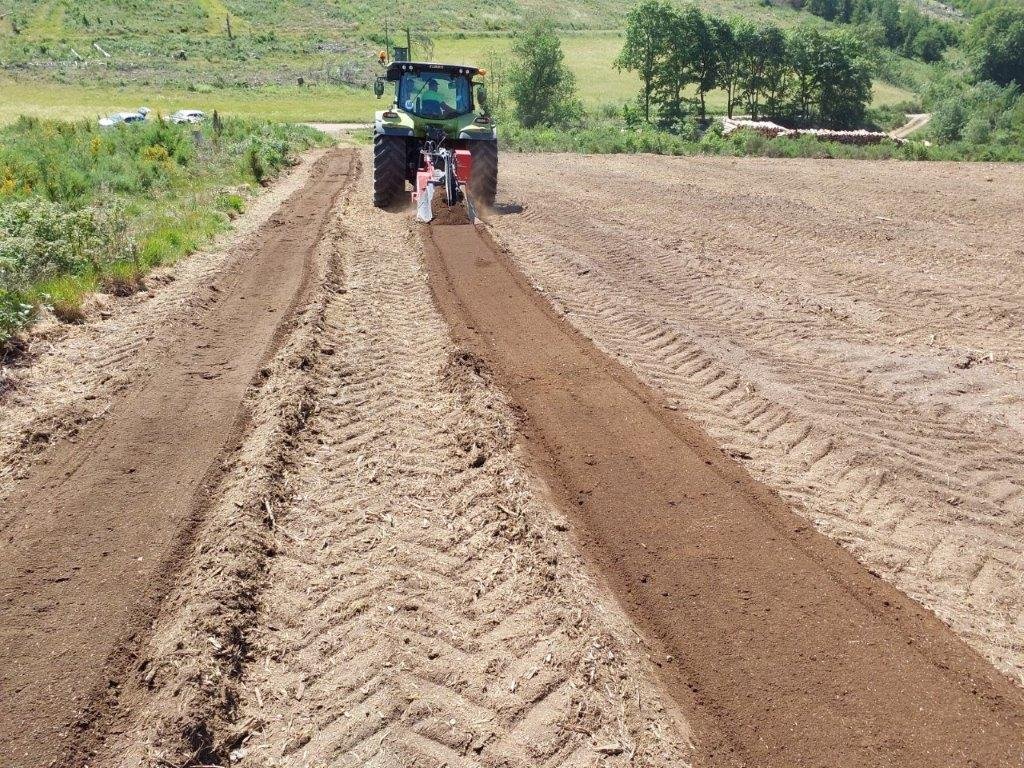

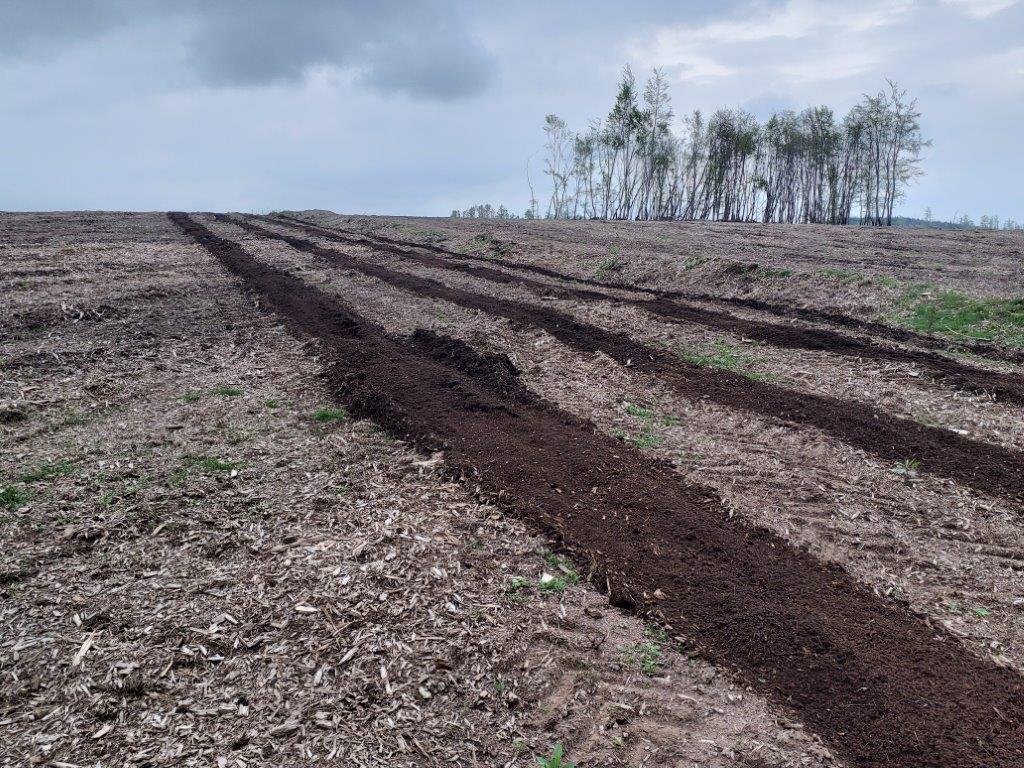

Ideal growth conditions
