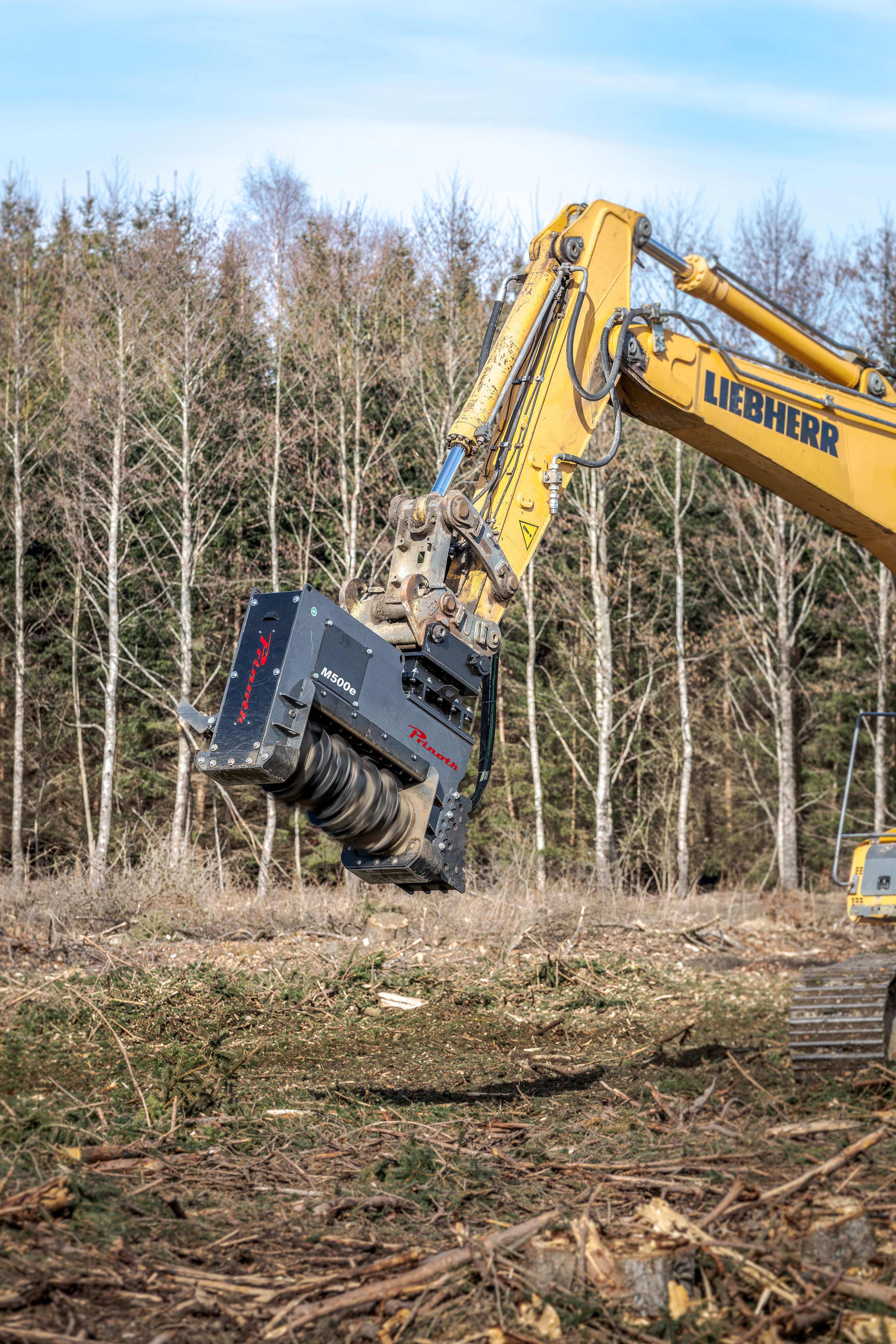

GRIZZLY M500e
Forestry Mulcher for 18-25 ton class excavators.
Working width
Total width
Weight
Perfect for tough forestry work
The mulcher can be used universally and is ideal for mulching heavy brush.
Features
Using the thumb bracket, the operator can position the material to be mulched.
With the tilt function, the mulching head can be moved 10° in forward and 90° in backward position.
Open front for maximum performance ensures the material hits the rotor first and is directly mulched.
Rotor technology with various BCS- or UPTs-tools possible for best mulching result.
Powerful and high efficiency 107 cc or 170 cc HD - variable displacement motor for maximum performance.
The low maintenance belt system effectively prevents slippage and saves valuable time.
The hydraulic protection flap on the back of the mulching head enables optimal mulching. It provides extra protection by reducing uncontrolled ejection of mulched material.
Customized interfaces for simple mounting / demounting on various carriers with different options available.
Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.
The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.
Technical data
Download (PDF)
-
Working width
43.3 in1,100 mm -
Total width
63.5 in1,614 mm -
Weight
2,998 lbs1,360 kg -
Rotor diameter
19.7 in500 mm -
Volume flow
32 – 70 gpm120 – 265 l/min -
Tools
24x BCS or 28x UPTs24x BCS or 28x UPTs
-
Height
46.5 in1,180 mm
