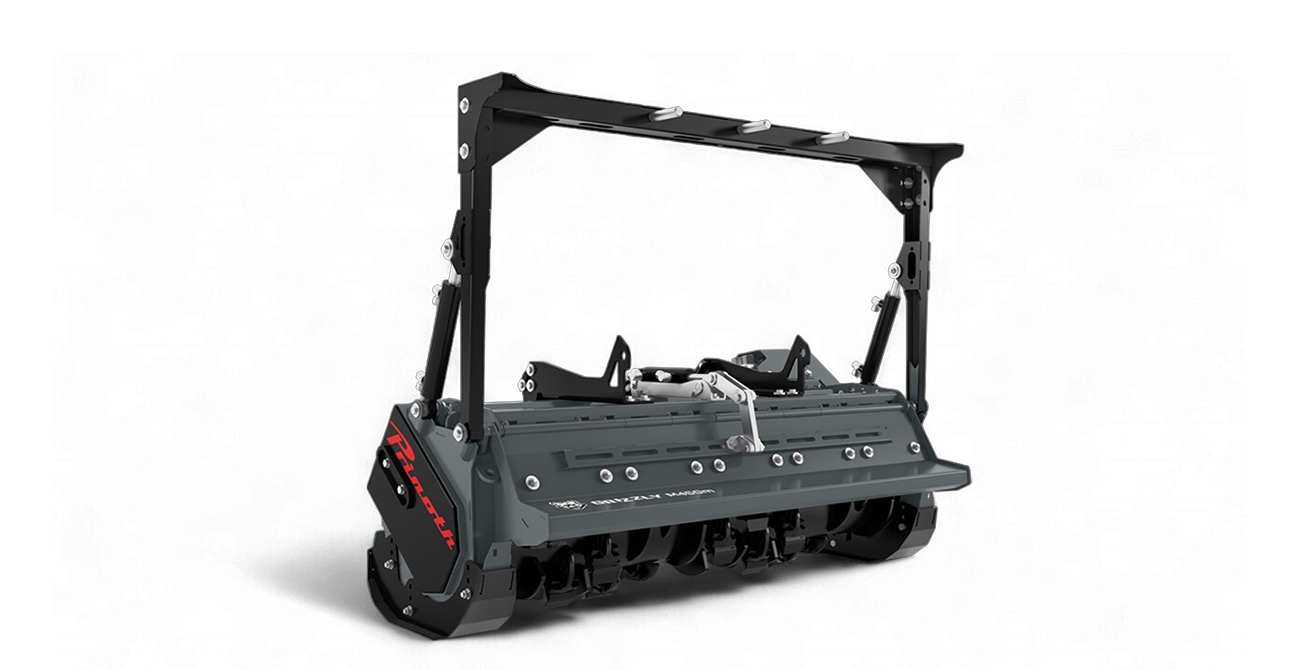

GRIZZLY M450h

GRIZZLY M450h

Hydraulic driven brush mulcher for remote controlled and hydraulic carriers.

Volume flow

Volume flow

14.5 – 29 gpm
55 – 110 l/min
Rotor diameter

Rotor diameter

17.7 in (450 mm)
450 mm
Working width

Working width

up to 57 in
up to 1,450 mm

Your Benefits

Excellent for the lower output

Excellent for the lower output

Easy handling & well suited for small carriers, available in different working widths. Transmission independent of rotation direction (front and rear mounting).

Perfect results of mulching

Perfect results of mulching

The BCS rotor system combined with the two exchangeable counter blades provide the best mulching results.

Efficient

Efficient

Three axial piston motors to cover the volume flow range available. Power transfer with 3 flexible V-belts provides efficient overload protection.

The lightweight brush mulcher in its class, Ideal for narrow terrain

The Grizzly M450h is a small hydraulic driven mulcher and is excellent for carrier vehicles with a volume flow from 55-110 l/min (14.5 – 29 gpm). It is ideal for shredding brush, branches and trees with a maximum diameter up to 20 cm. The mulcher can be used universally: ideal for mulching brush and trees in rough or narrow terrain, very suitable for work in orchards and vineyards, excellent for forestry planting.

Features

As standard, the mulcher has two exchangeable counter blades, which provide additional shredding of the material to obtain the best possible mulching result.

The push bar guides taller material into the rotor in a targeted and safe manner. It is available in a fixed or hydraulic version, with pins.

Proven rotor technology with various BCS-tools possible for excellent shredding quality and best cutting results.

The efficient drive, available on the left or right side, with 3 flexible V-belts, provides efficient overload protection.

Customized interfaces for simple mounting / demounting on various carriers with different options available.

For adaptation to specific grounds, the HARDOX skids can be adjusted in three heights up to 2 inches (50 mm).

Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.

The chain curtain provides extra protection while mulching.

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

Technical data

Download (PDF)
  • Volume flow

    14.5 – 29 gpm
    55 – 110 l/min
  • Rotor diameter

    17.7 in (450 mm)
    450 mm
  • Working width

    up to 57 in
    up to 1,450 mm
  • Total width

    up to 65 in
    up to 1,650 mm
  • Weight

    up to 1,191 lbs
    up to 540 kg
  • Tools

    26x BCS, 30x BCS
    26x BCS, 30x BCS
  • Hydraulic motor

    25 cc / 34 cc / 47 ccpiston motor with overrun valve
    25 cc / 34 cc / 47 ccpiston motor with overrun valve
