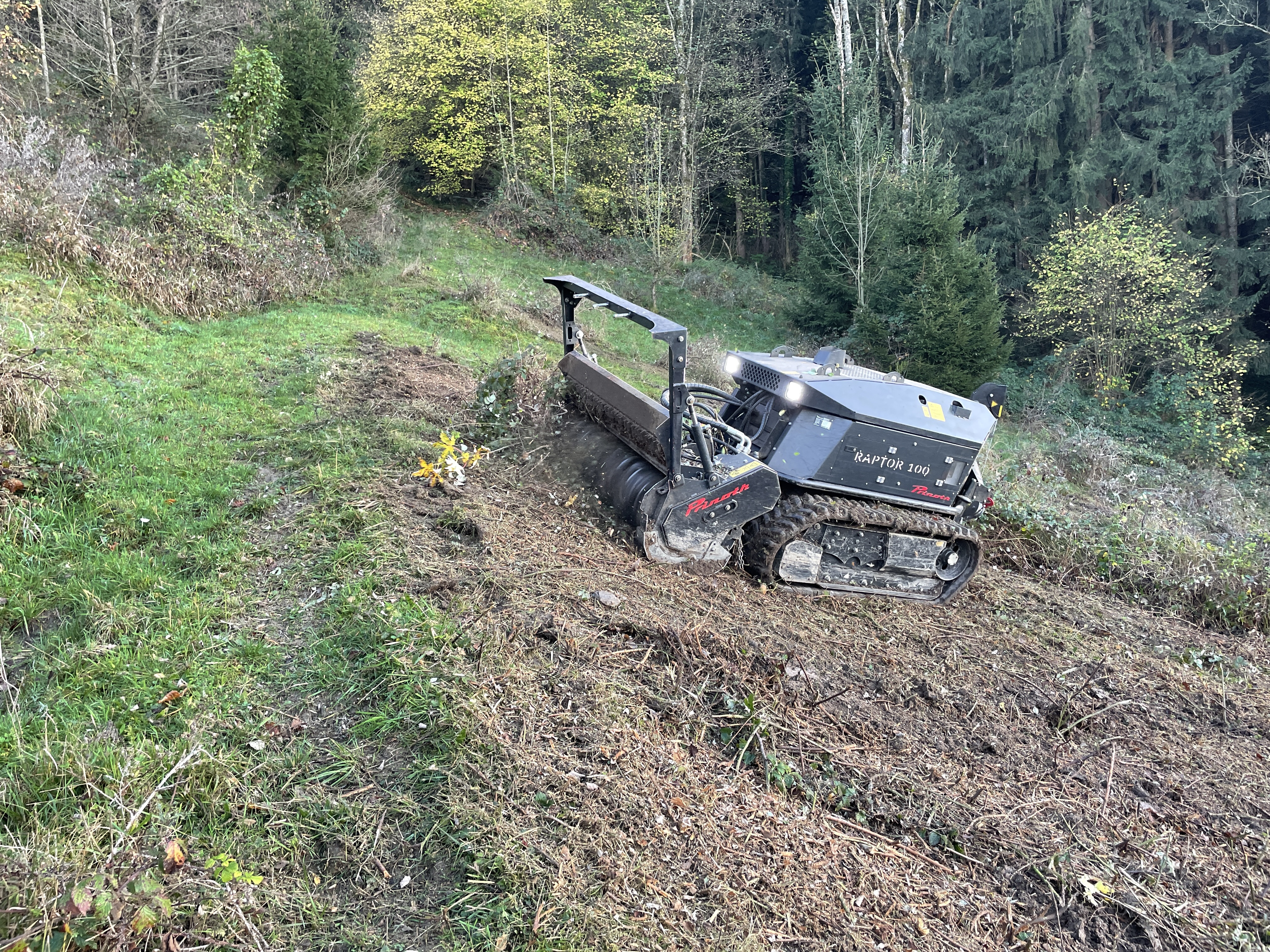

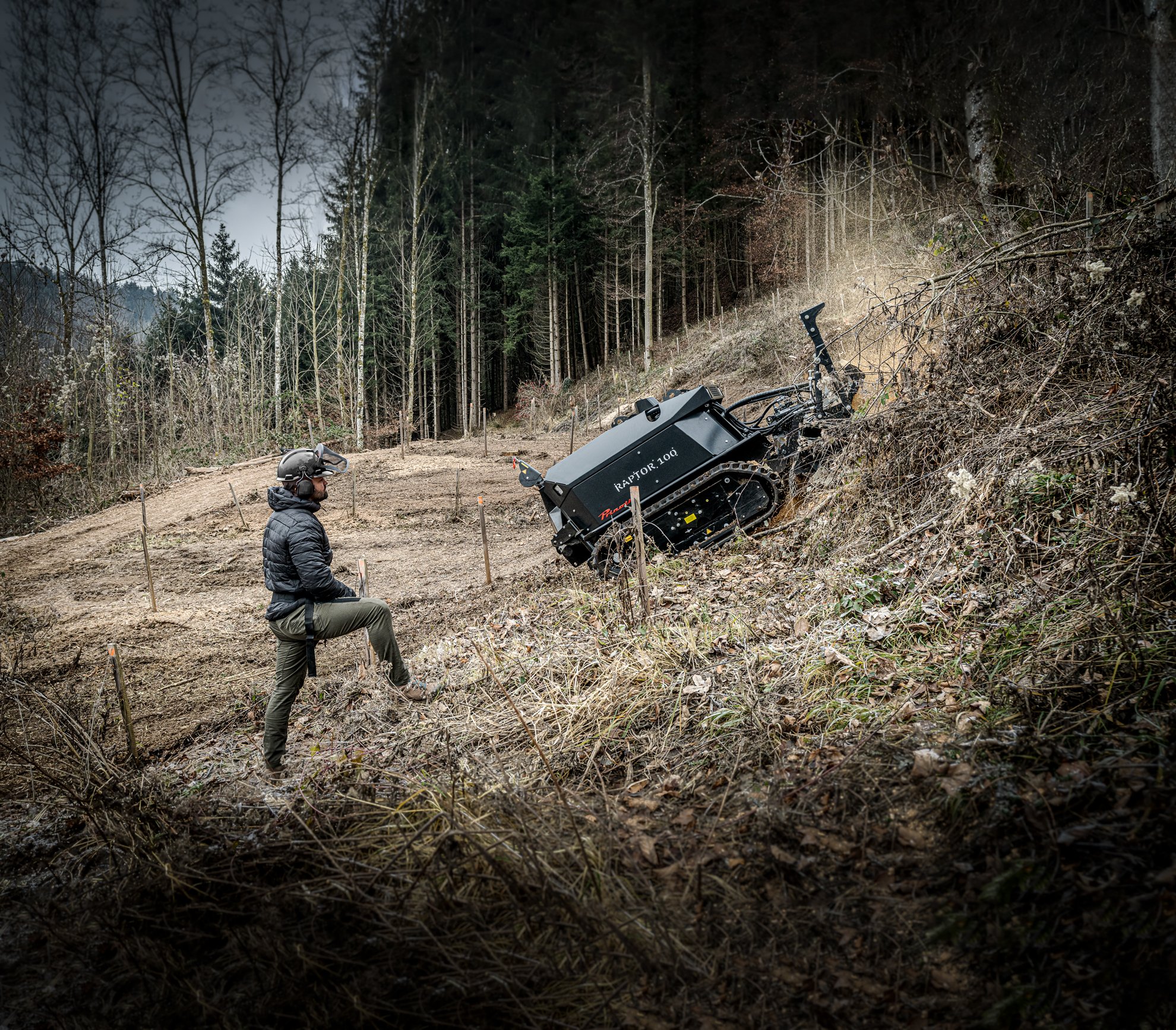

RAPTOR 100
Remote-controlled mulcher.
Engine
Diameter mulching material
Power
GOOD FOR THE ENVIRONMENT – GOOD FOR THE FOREST
Less ground pressure means less environmental damage. The Raptor 100’s wide rubber tracks and low weight exert less pressure on the ground, so the soil is protected, even if it is soft.
Configuration

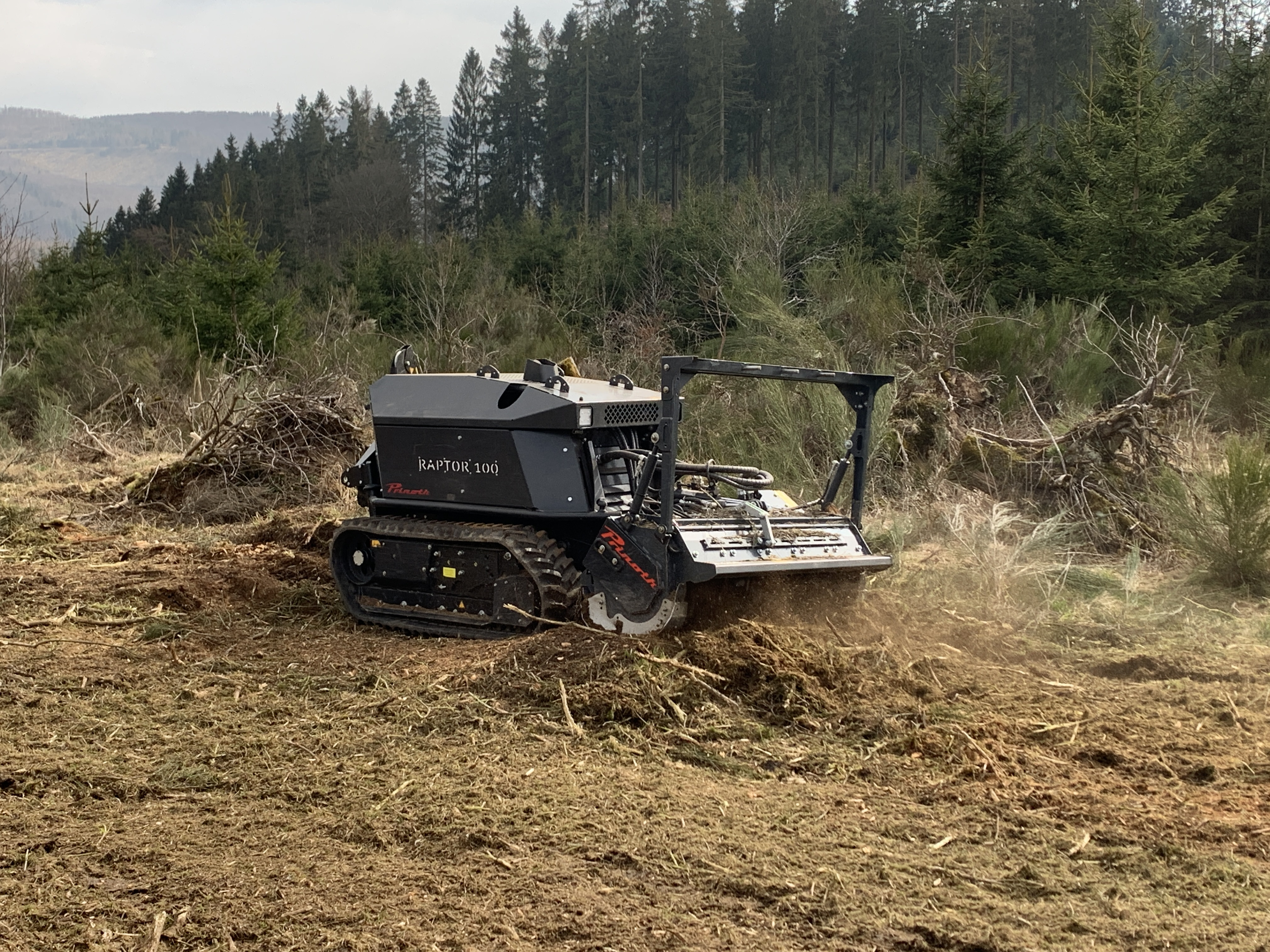

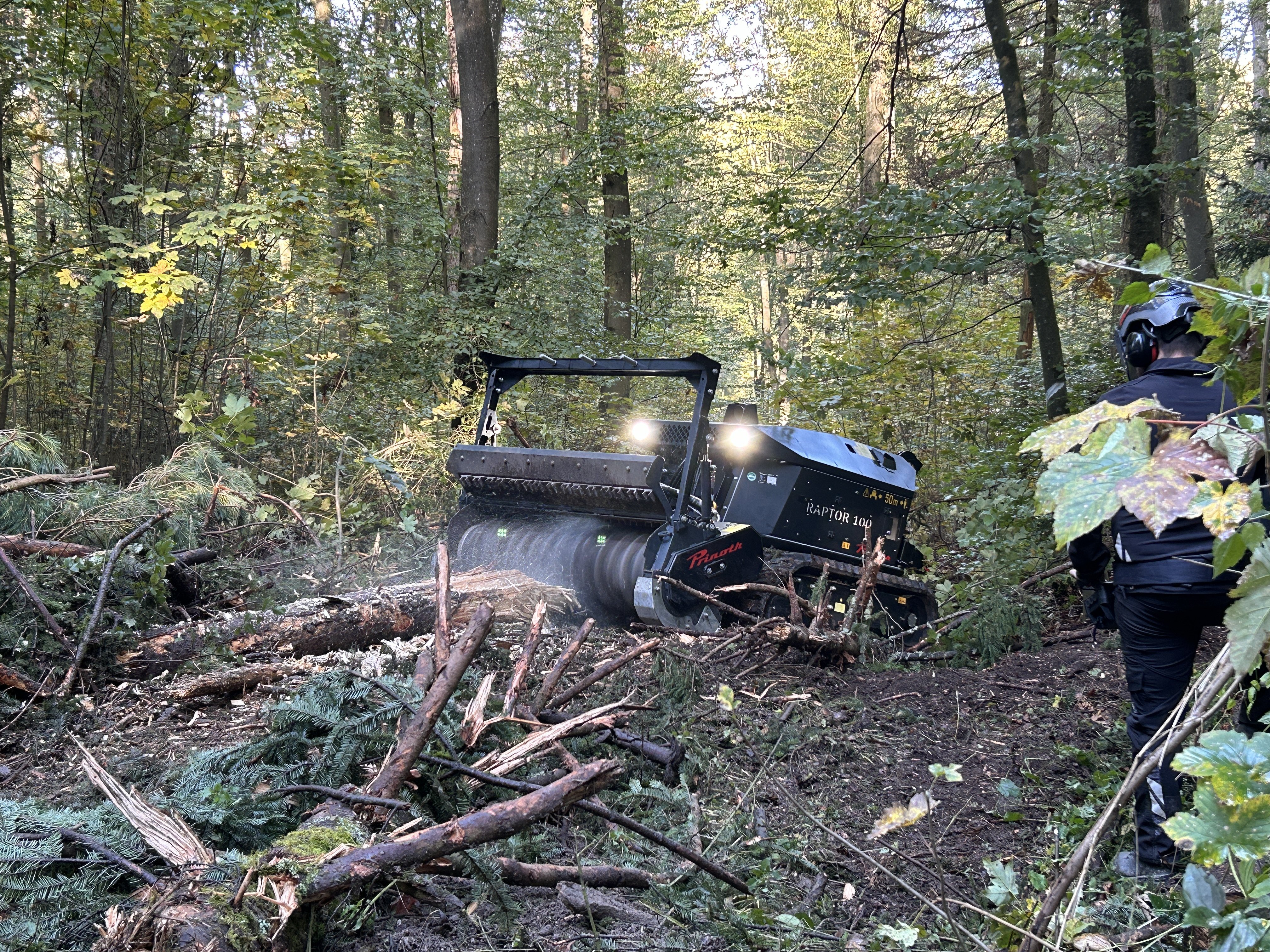

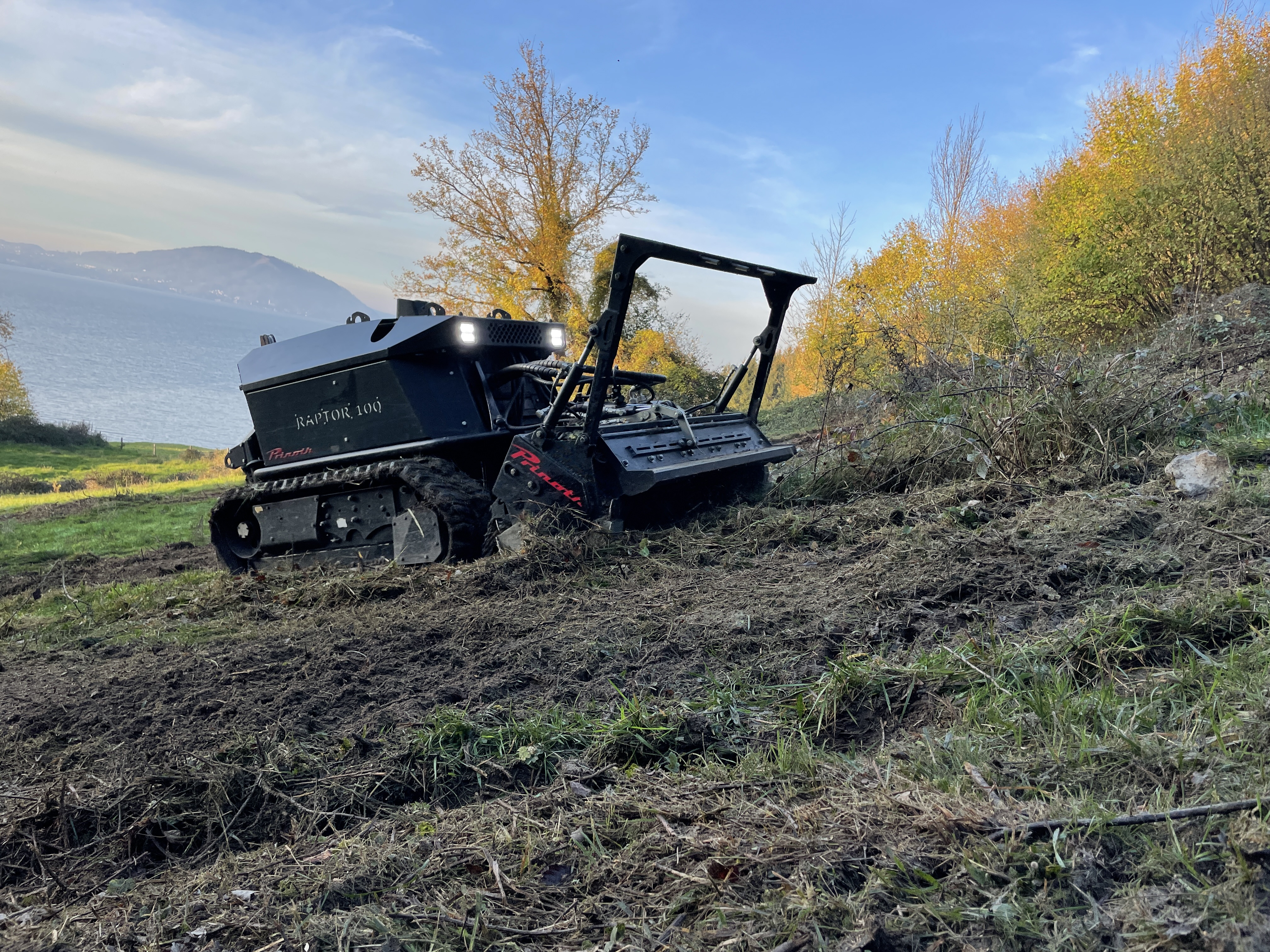

The Grizzly M450h is a lightweight, powerful forestry mulcher for universal use. It is characterized by easy handling, low
maintenance and high productivity with low power requirements. Counter blades ensure smooth cutting action and prevent the rotor from blocking. The mulcher effortlessly
masters thick undergrowth and tall grass.
Working width: 49.2 in (1,250 mm) | 57 in (1,450 mm)
Volume flow: 22.5 gpm (85 l/min)
Hydraulic motor: 34 cc axial piston motor with suction valve
Drive: V-belt
Max. pressure: 5,070 psi (350 bar)
Rotor diameter: 17.7 in (450 mm)
Tools: 26 x BCS | 30 x BCS
Total width: 57 in (1,450 mm) | 65 in (1,650 mm)
The Grizzly M420h flail mower shreds grass, undergrowth and small branches and distributes them evenly on the ground. It is ideal for maintaining green spaces, pastures and roadsides. Rotating flails finely shred plant residues
and leave them behind as mulch, which protects the soil and improves the nutrient supply.
Working width: 61 in (1,550 mm)
Volume flow : Volume flow 22.5 gpm (85 l/min)
Hydraulic motor: 47 cc axial piston motor with suction valve
Drive: V-belt
Max. pressure: 5,070 psi (350 bar)
Rotor diameter: 16.5 in (420 mm)
Tools: 12 fine-cutting blades
Total width: 71 in (1,800 mm)
Weight: 1,102 lbs (500 kg)

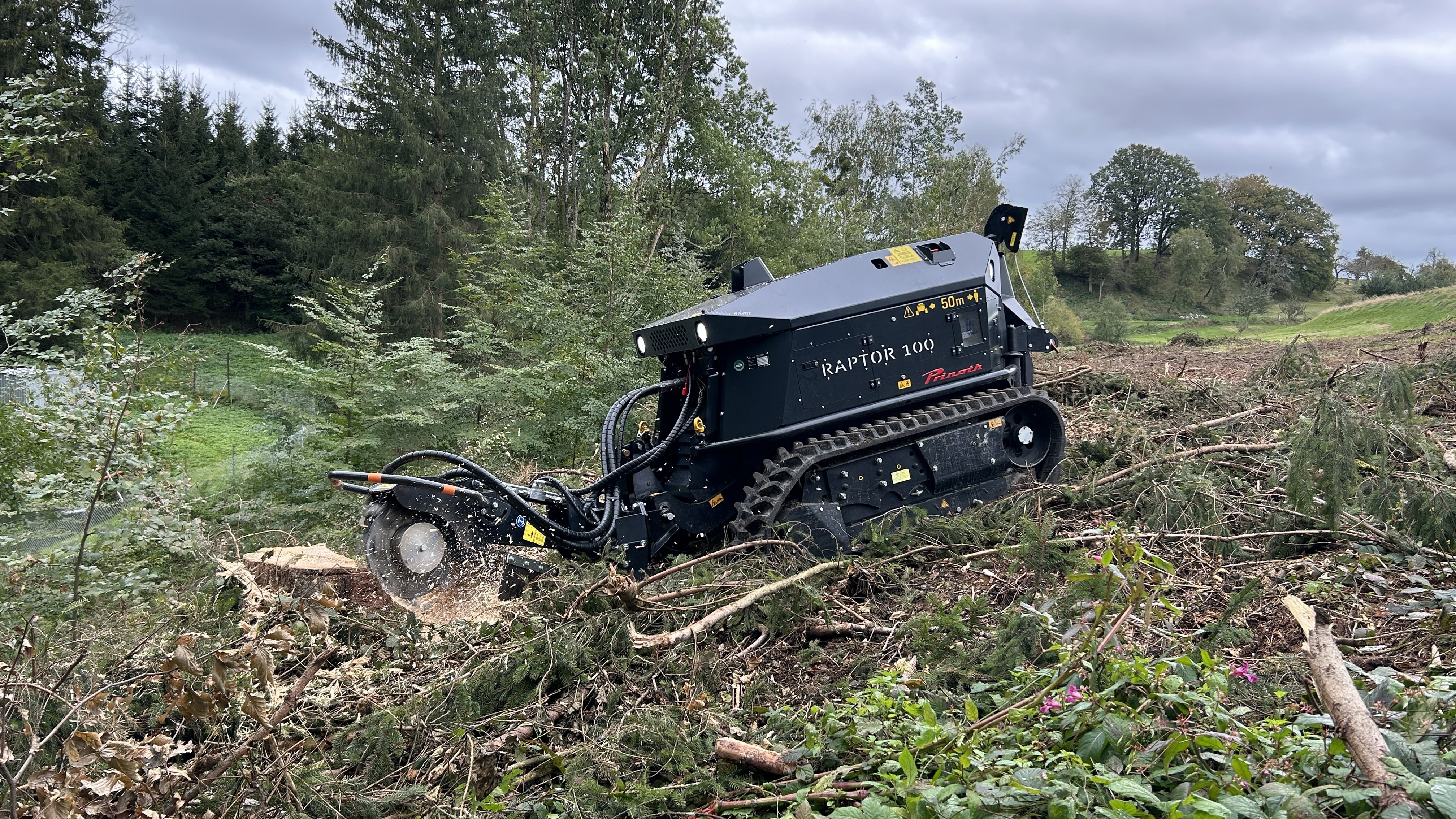

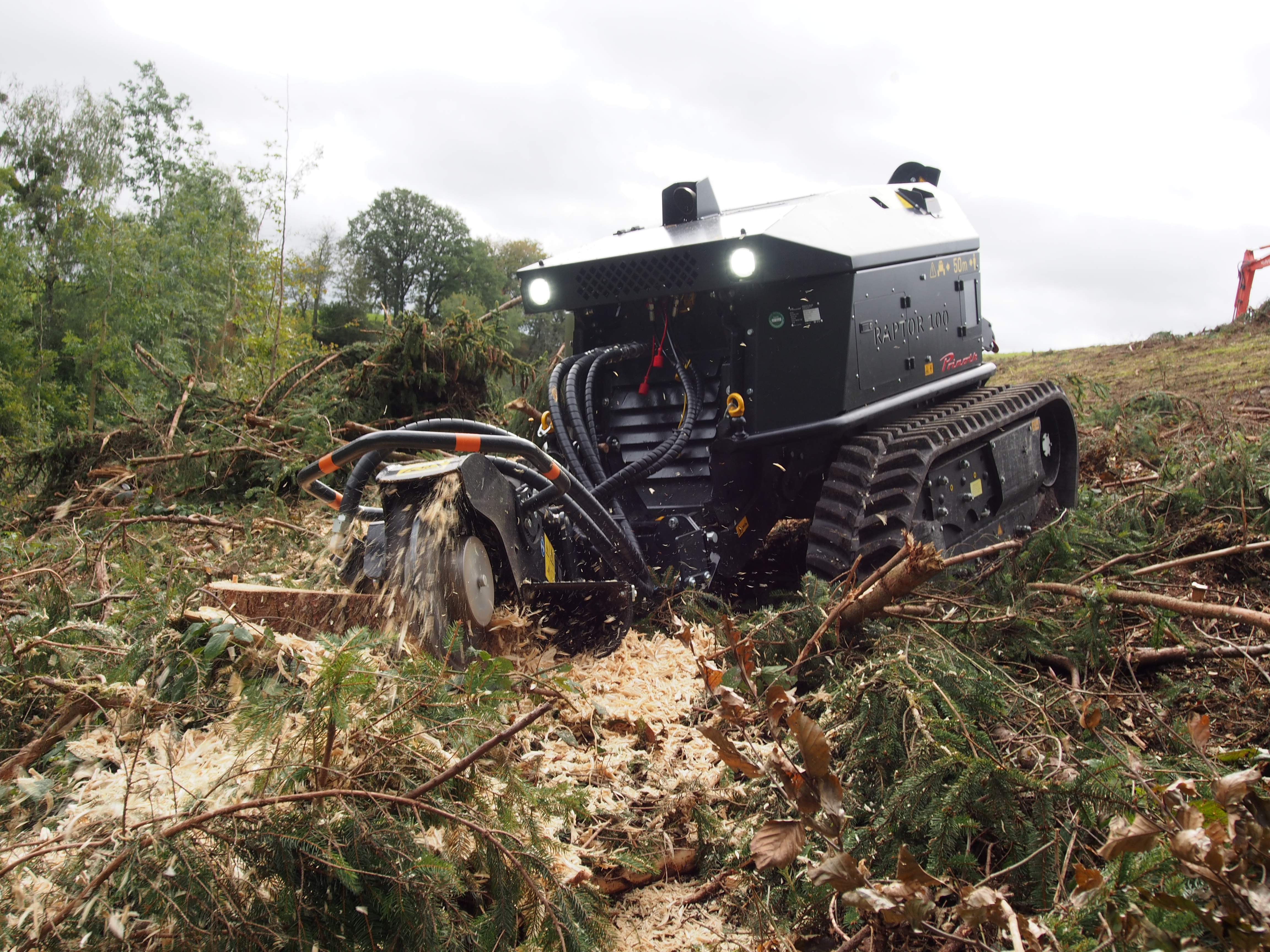

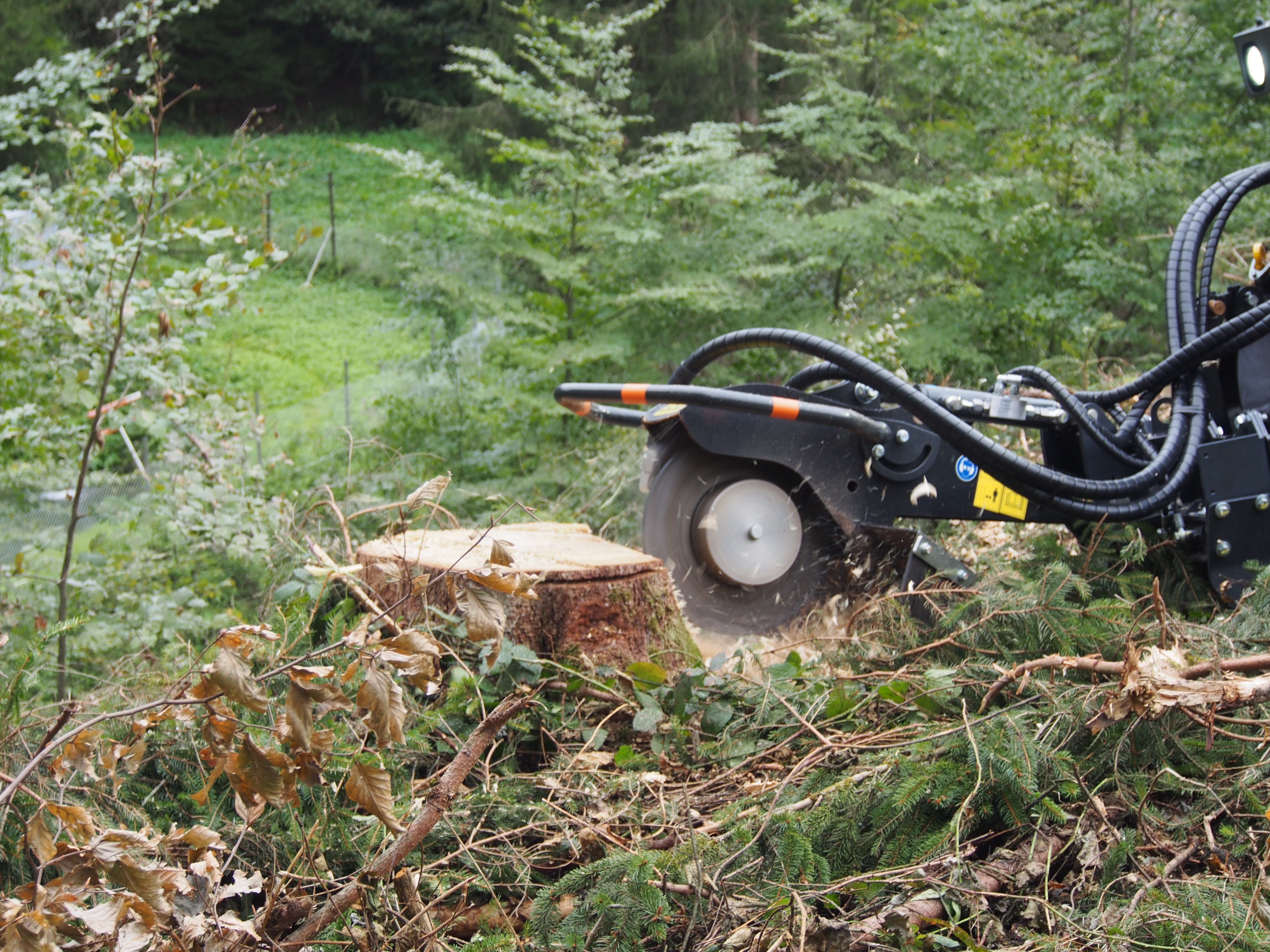

The Beaver S500h impresses with its generous working radius and at the same time impressive depth for efficient milling. Tree stumps and roots are removed effortlessly, space for new planting or construction projects is created.
Grinding wheel diameter: 18.7 in (475 mm)
Grinding wheel thickness: 1.2 in (30 mm)
Grinding wheel thickness incl. teeth: 3.7 in (95 mm)
Teeth: 2 x 8
Weight: 683 lbs (310 kg)
Dimensions L x W x H: 55.1 x 31.5 x 23.6 in (1,400 x 800 x 600 mm)
Swiveling range: 63 in (1,600 mm)
Milling depth (into the ground): up to 27.6 in (700 mm)
Rotation speed: 1,400 rpm at 22.5 gpm (85 l/min)
By using the winch with a pulling force of 5 t, the machine can be ideally used as a pre-delivery machine. Previously felled timber can be recovered quickly and easily. The winch is controlled via the remote control of the Raptor 100.
Zugkraft unterste Seillage: 50 kN
Zugkraft oberste Seillage: 28 kN
Seildurchmesser: 0.4 in (10 mm)
Seillänge: 3,150 in (80 m)
The Raptor 100, combined with a snow blower, is ideally suited for the rapid removal of loose and icy snow on roads, footpaths, parking lots or areas that are difficult to access. This combination is also ideal for clearing snow from already prepared slopes without causing damage to the surface. The effort required for manual snow clearing is minimized.
Working width: 55 in (1,400 mm)
Milling reel diameter: 22 in (550 mm)
Blast wheel diameter: 20 in (520 mm)
Features

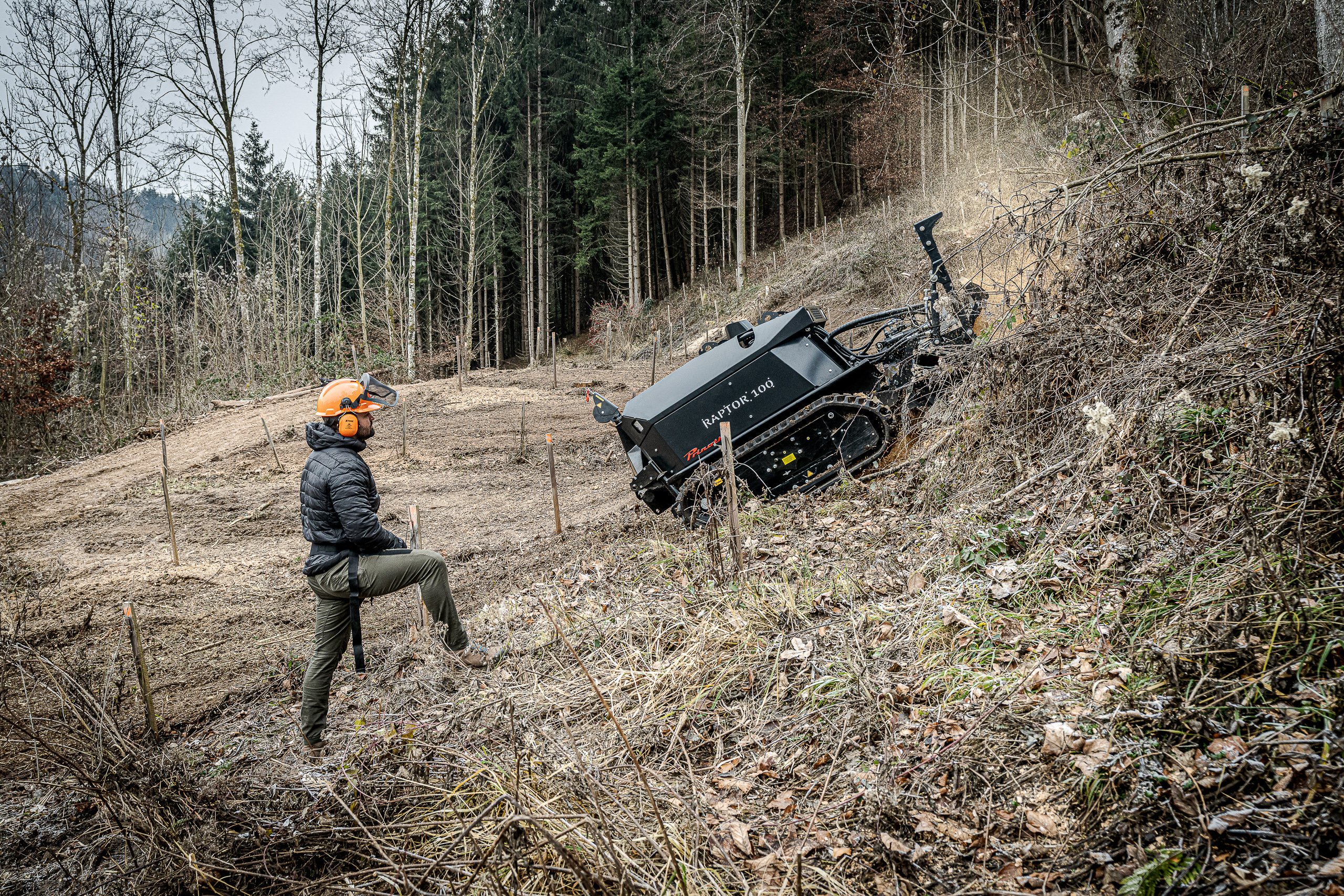

An ergonomic controller with a comfortable waist belt, joysticks for the mulcher and carrier and an emergency stop system allow you to work efficiently in the safety zone up to 100 meters away. You can steer the vehicle with one hand while operating the attachment with the other.

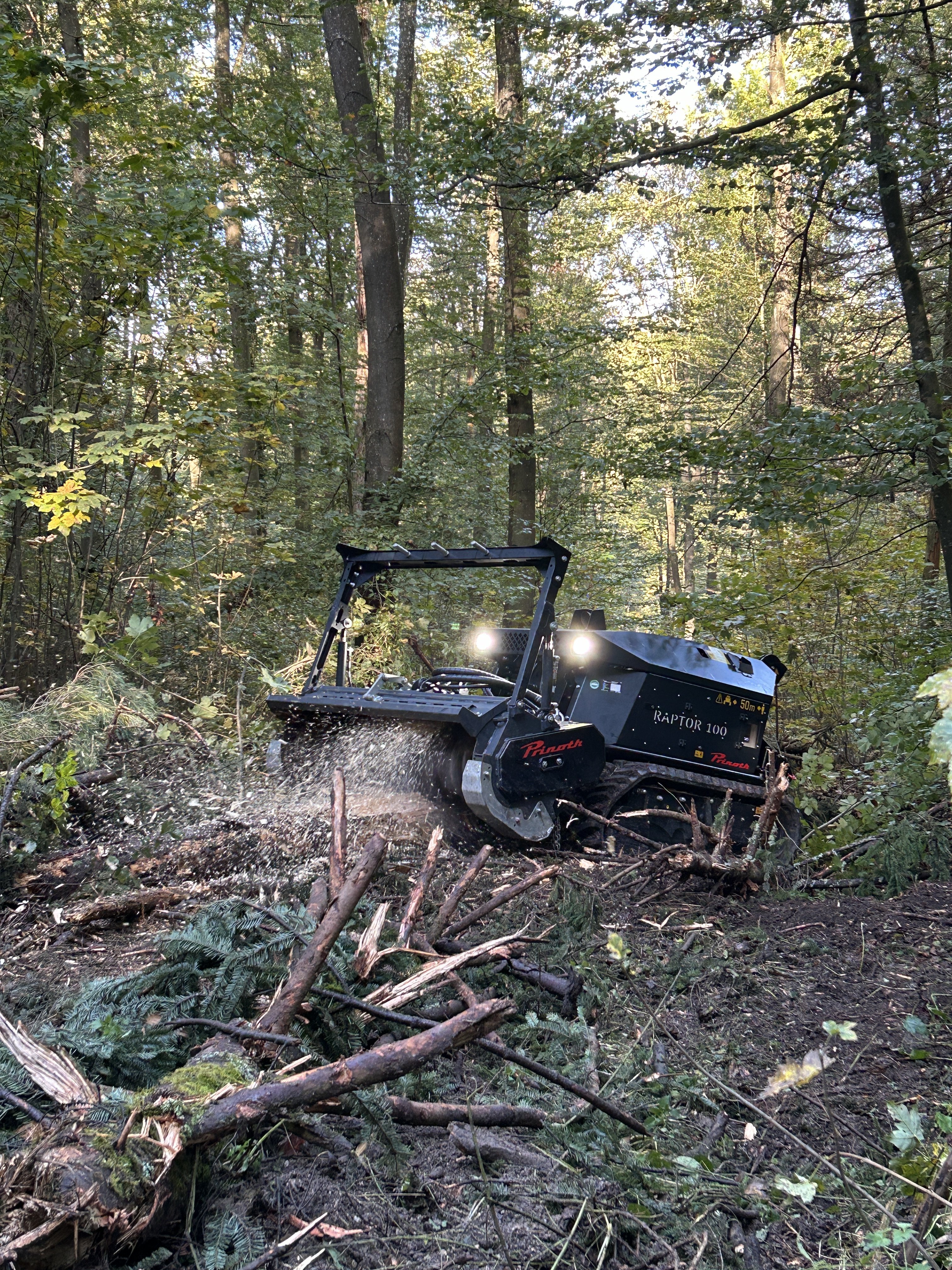

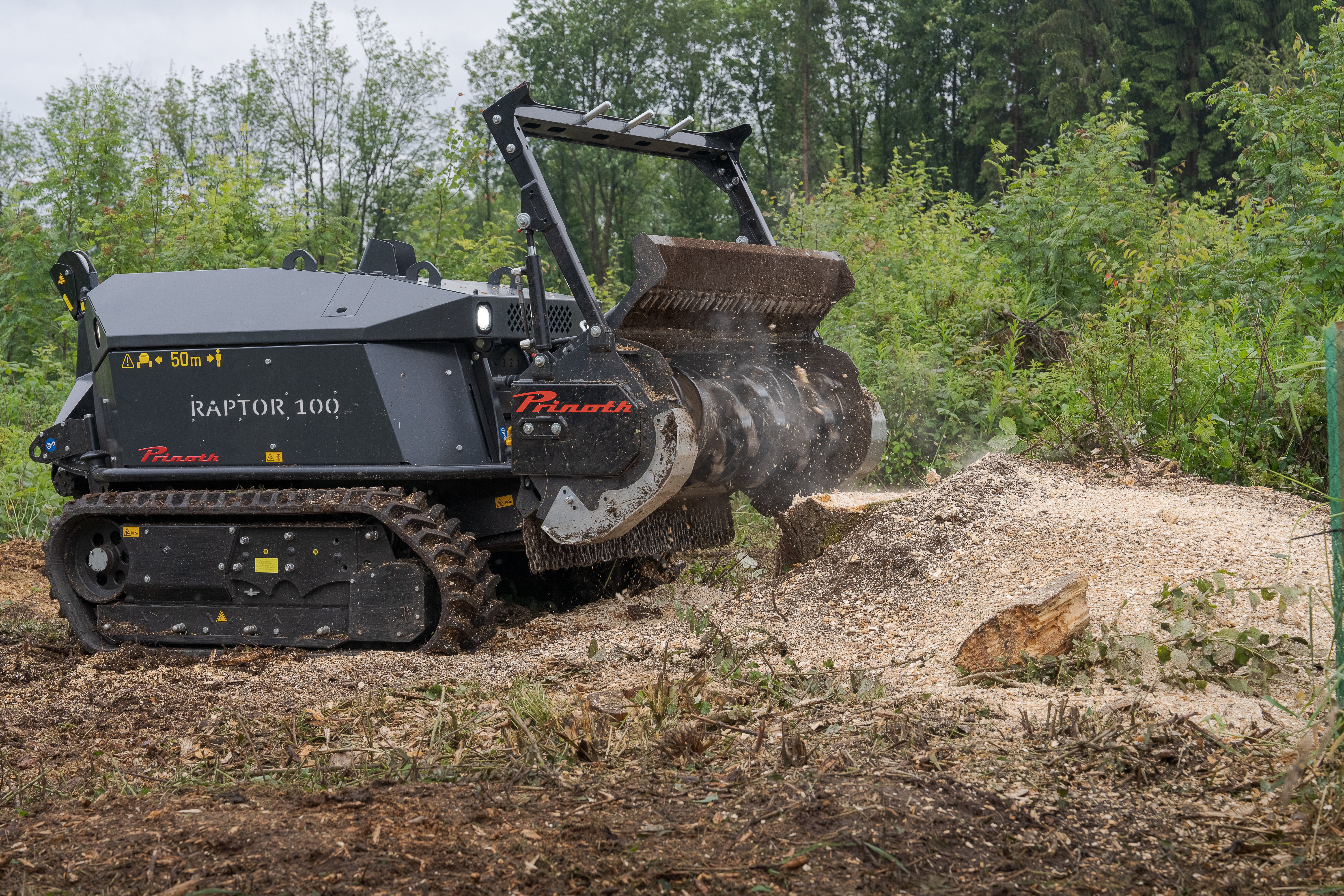

The Grizzly M450h is a lightweight, hydraulic mulcher for universal use and the perfect companion to the Raptor 100. It offers easy handling, low maintenance, high productivity, and demands little power.

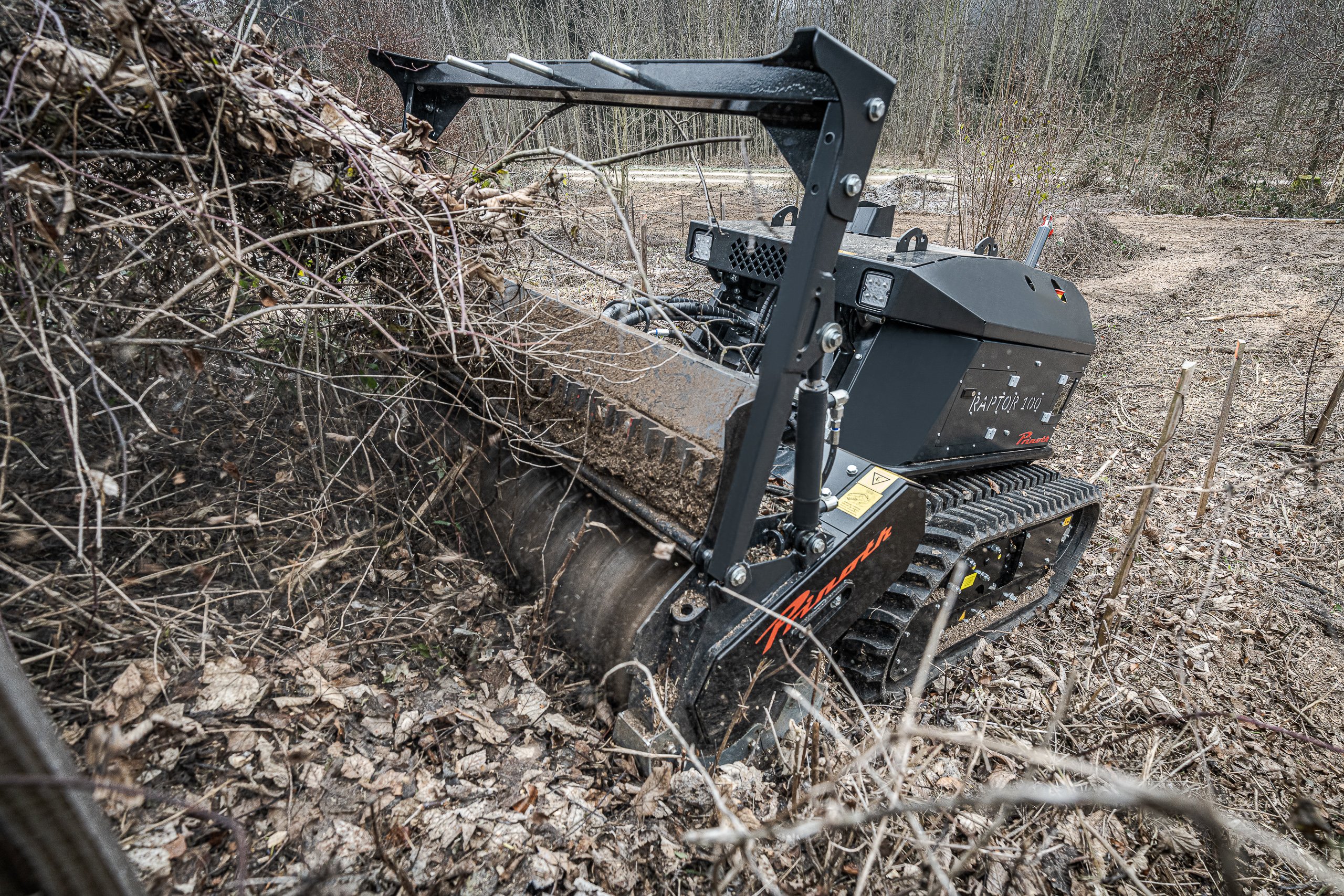

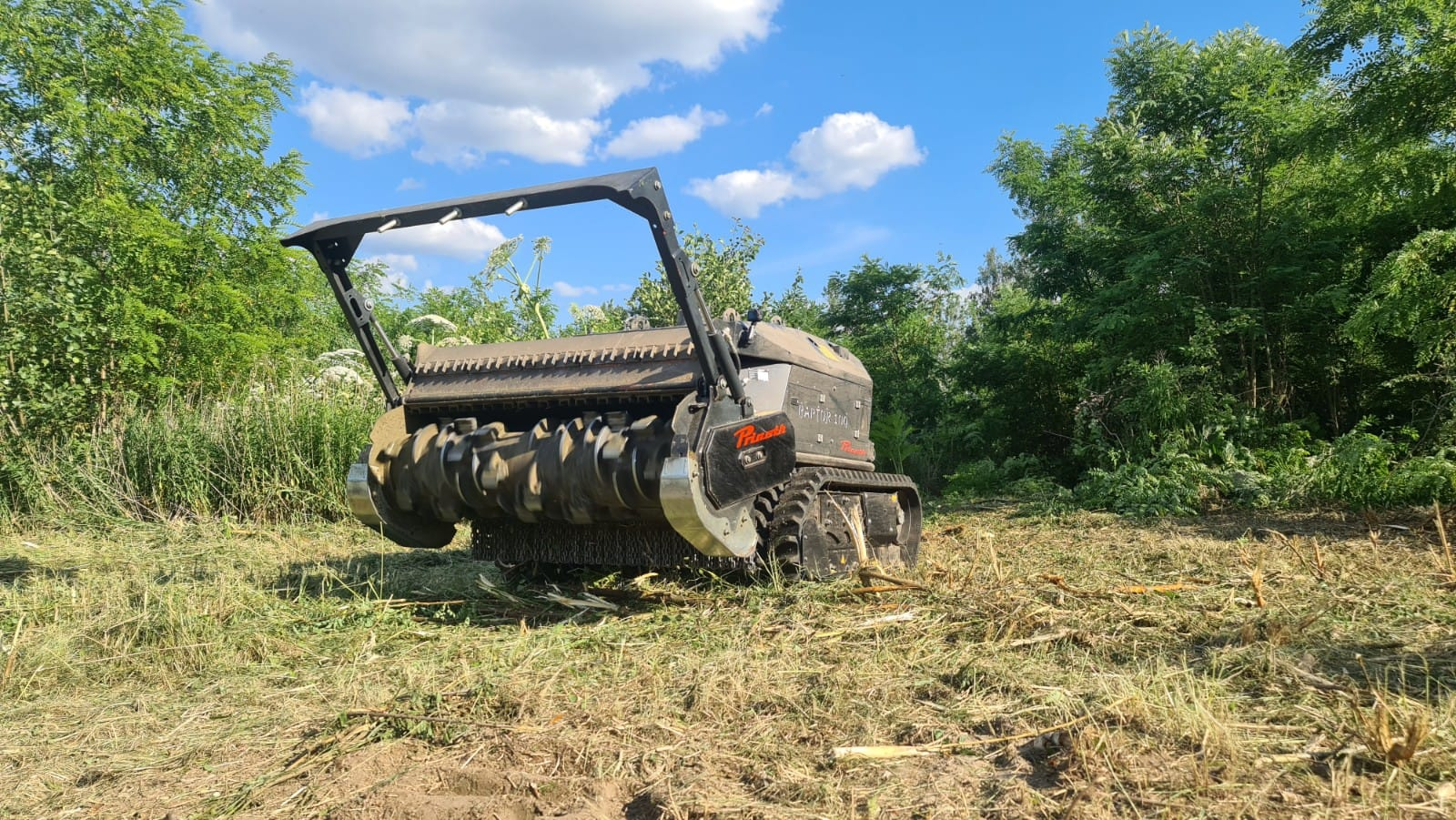

BCS-Rotor with steel knives or carbide teeth. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.

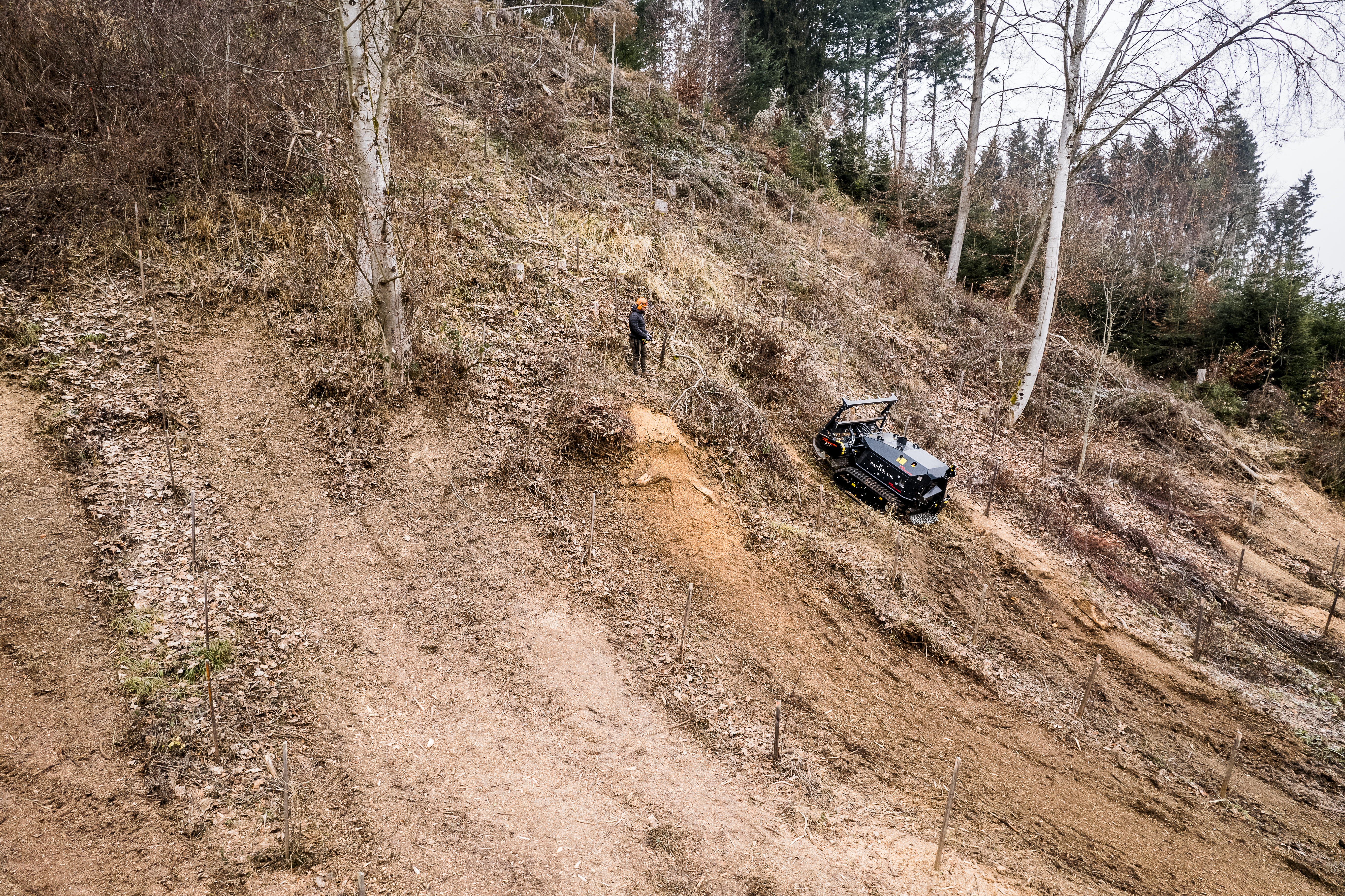

Equipped with 300 mm/11.8 in rubber tracks. Tension and widening are hydraulically controlled. The rubber tracks offer superior traction for work on slopes up to 45 degrees und help protect the soil from excessive damage. Tracks can be widened from 1200 mm / 47.2 in up tp 1600 mm / 62.9 in total width.
An efficient and powerful 75 hp Deutz engine complies with the Euro 5 exhaust gas standard.
A Cleanfix reversible fan guarantees maximum air flow and pressure so that the cooler and screens are cooled efficiently and cleaned thoroughly.
Four bright LED headlights at the front and rear of the Raptor 100 mean you can see and be seen, even in difficult lighting conditions.
A protected display shows the most important working parameters such as rotational speed, temperature, operating hours and hydraulic pressure at a glance.
Technical data
Download (PDF)
-
Engine
Deutz Diesel TD2.9L4Deutz Diesel TD2.9L4 -
Diameter mulching material
> 12 in> 30 cm -
Power
55 kW / 75 HP55 kW / 75 HP -
Tank capacity
13,2 gal50 l -
Travel Speed
3.7 mph6 km/h -
Total working width with mulcher
65 in1,580 mm -
Working width
57 in1,450 mm
-
Height
62.2 in1,580 mm -
Length
124 in3,150 mm -
Weight with mulcher
5,710 lbs2,590 kg -
Rotor diameter
17.7 in450 mm -
Tools
30 BCS30 BCS -
Ground pressure with mulcher
3.88 psi273 g/cm2 -
Ground pressure without mulcher
2.98 psi210 g/cm2 -
Gradeability sideways / frontal
45° / 45°45° / 45°
