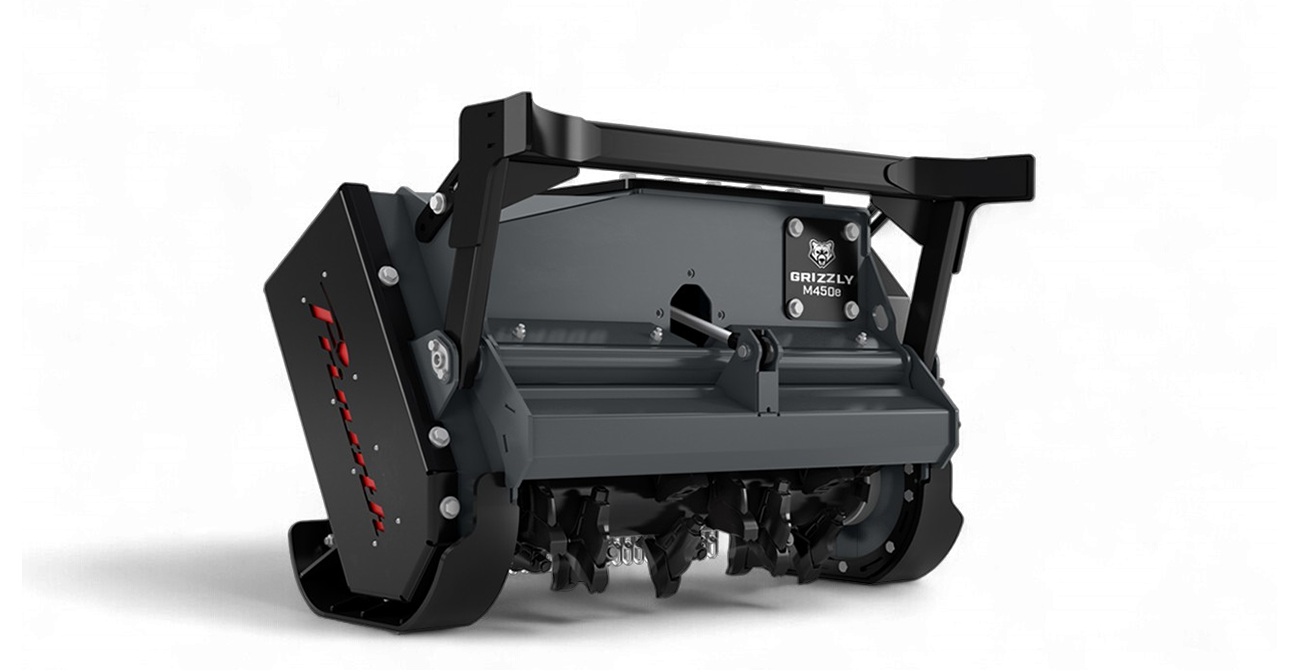

GRIZZLY M450e-1100

GRIZZLY M450e-1100

Forestry mulcher for excavators from 15 to 21 t.

Working width

Working width

43.3 in
1,100 mm
Total width

Total width

66.1 in
1,680 mm
Weight

Weight

1,896 – 2,205 lbs
860 - 1,000 kg

Your Benefits

Strong & Robust housing

Strong & Robust housing

Optimized housing is covered with bolted liners out of Hardox, with counter blades which protect the housing and ensure additional shredding of the material.

Reduced maintenance

Reduced maintenance

Power transfer with poly chain – the poly chain system prevents slippage and is low-maintenance.

Clever & Safe

Clever & Safe

The optional flap (hydraulically or electronically controlled) is equipped with exchangeable counter blades for perfect mulching results and extra protection.

Perfect for forestry applications

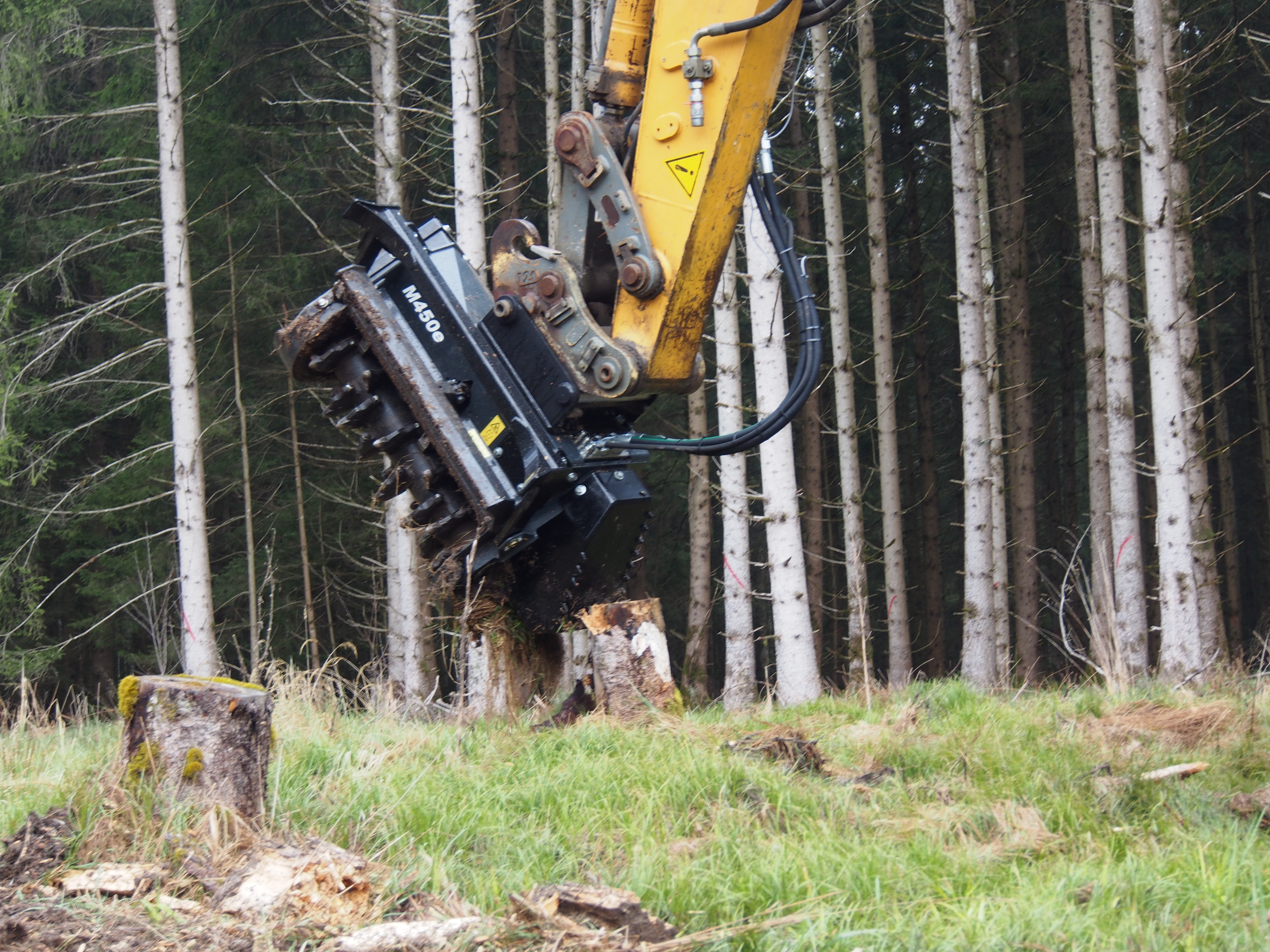

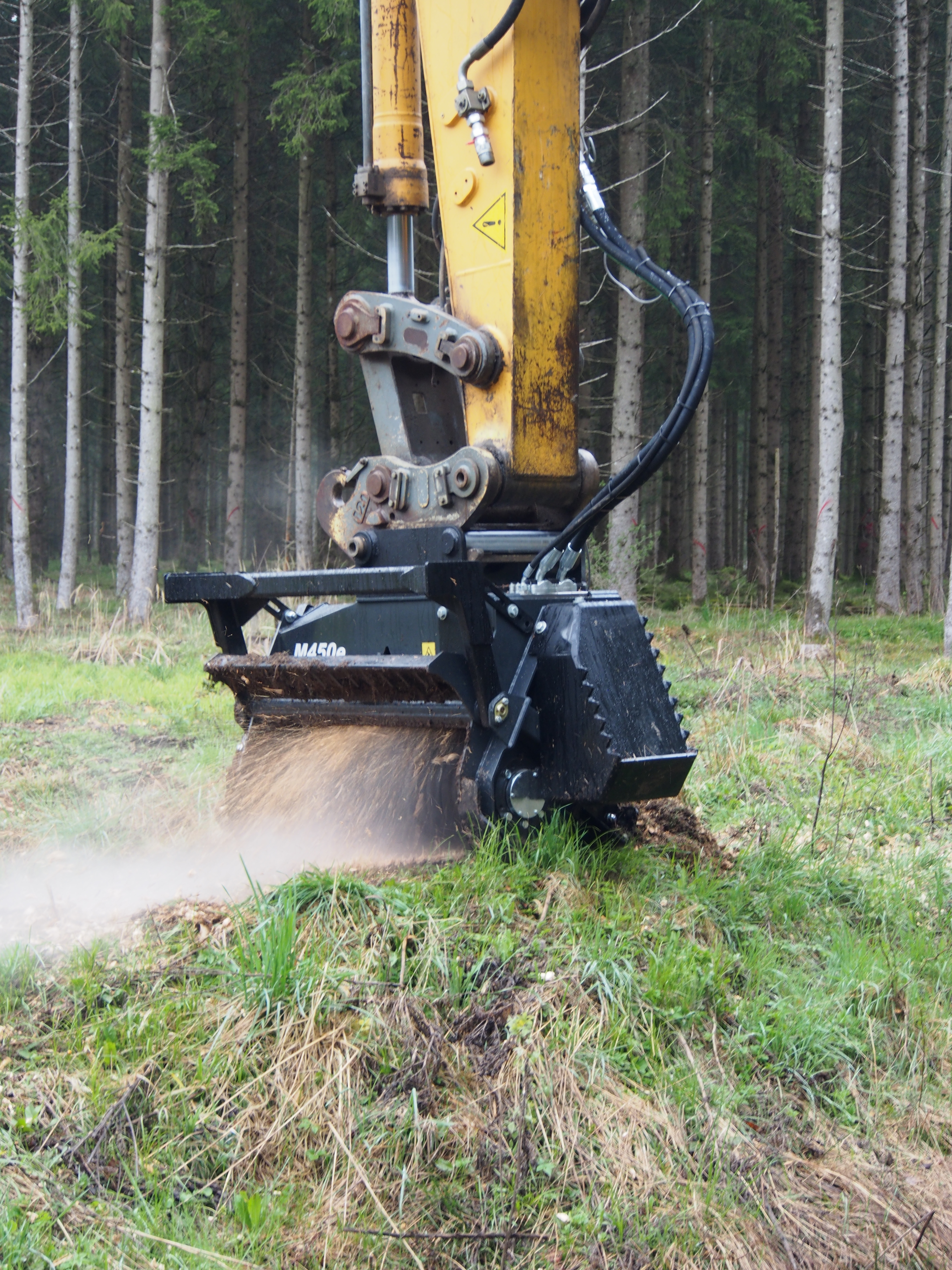

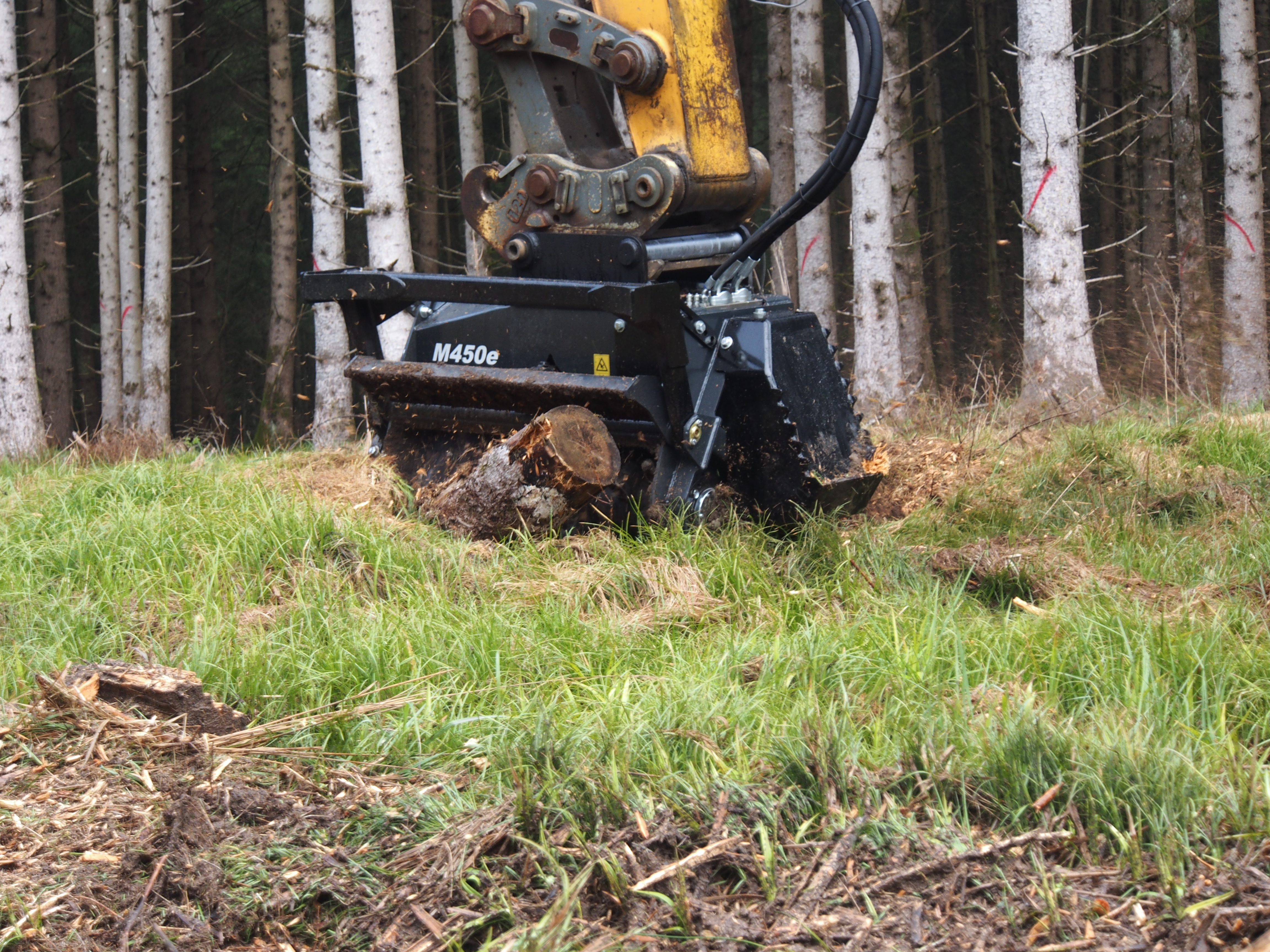

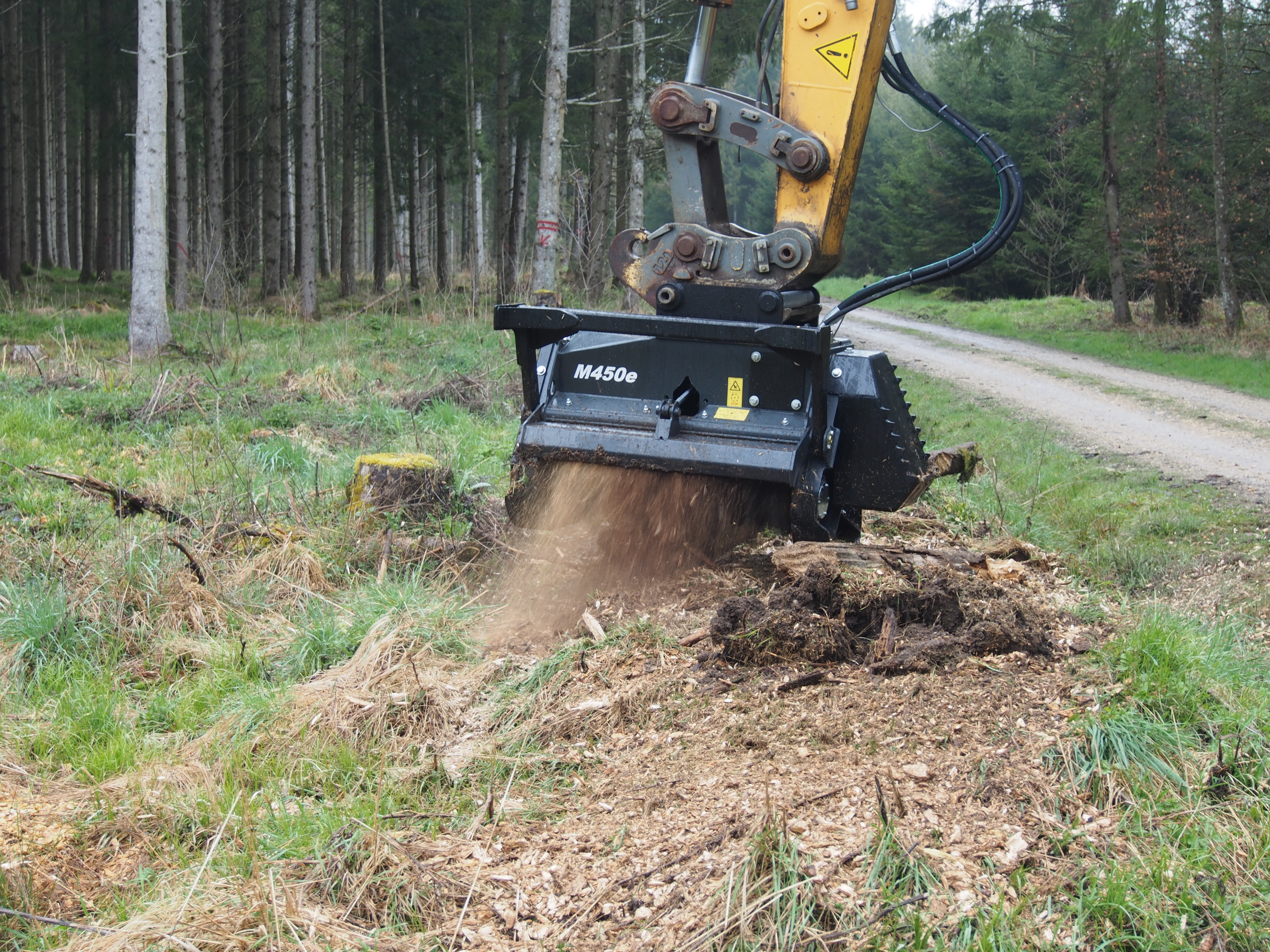

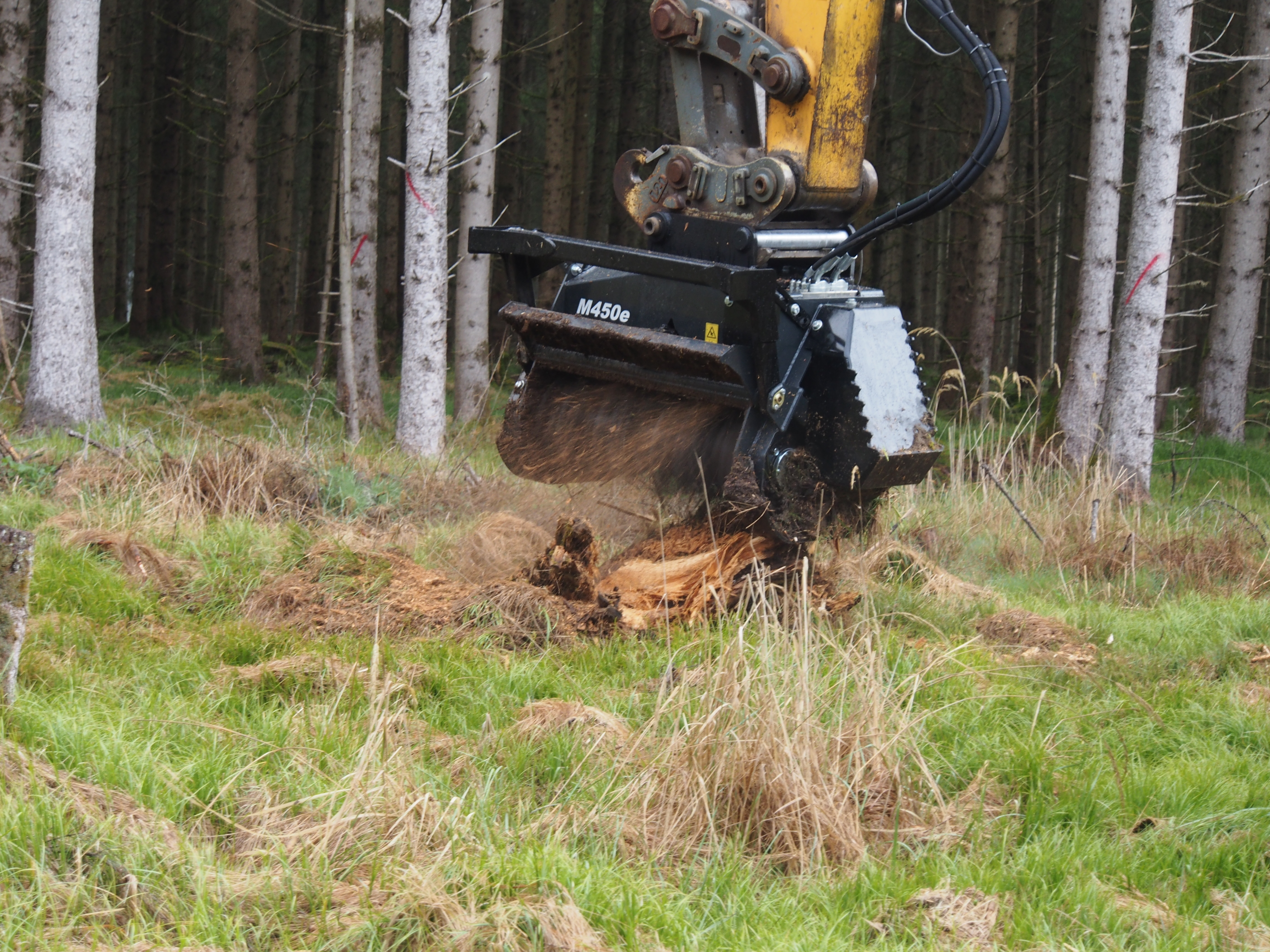

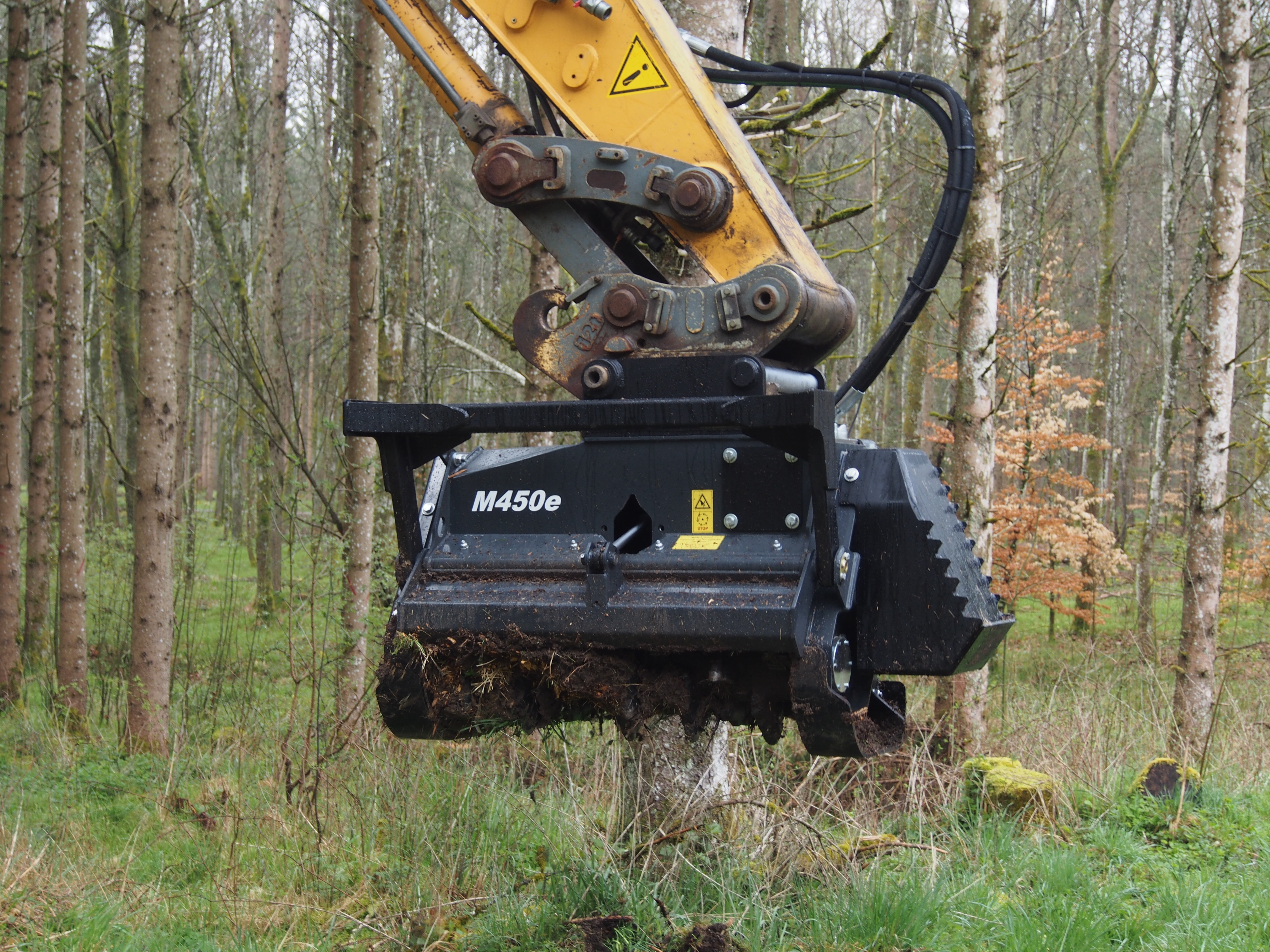

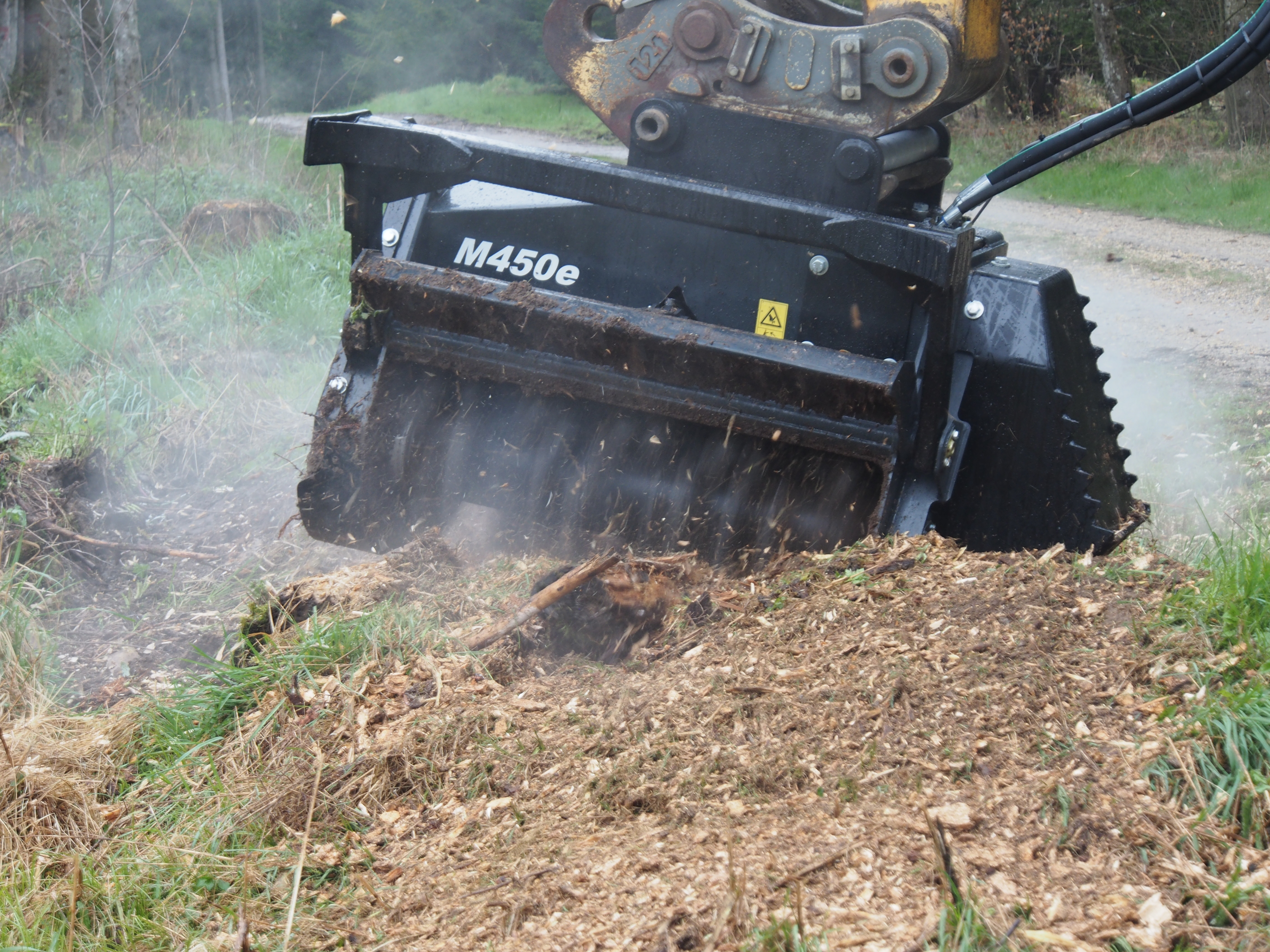

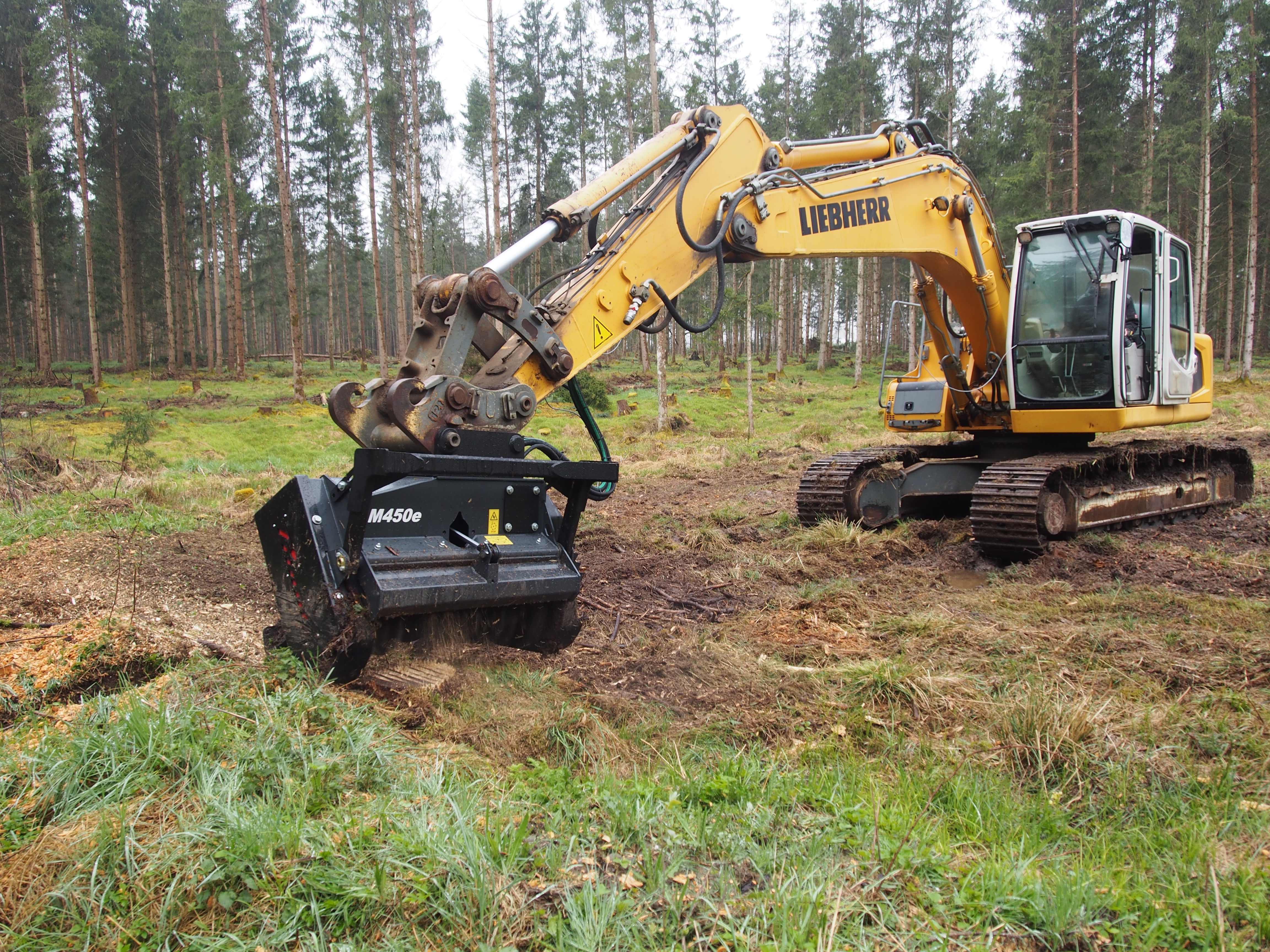

This forestry mulcher is completely new designed for excavators of 15 – 21 t, equipped with a powerful 115 cc hydraulic motor to cover the flow range of the mid-size excavators and to achieve the best performance for perfect mulching results. The mulcher can be used universally and is ideal for mulching trees and brush up to 20 cm.

Features

The engine cover can be supplied optionally with an attached thumb bracket, which allows easy positioning of the material to be mulched.

Powerful and high efficiency 115 cc HD - variable displacement motor for maximum performance.

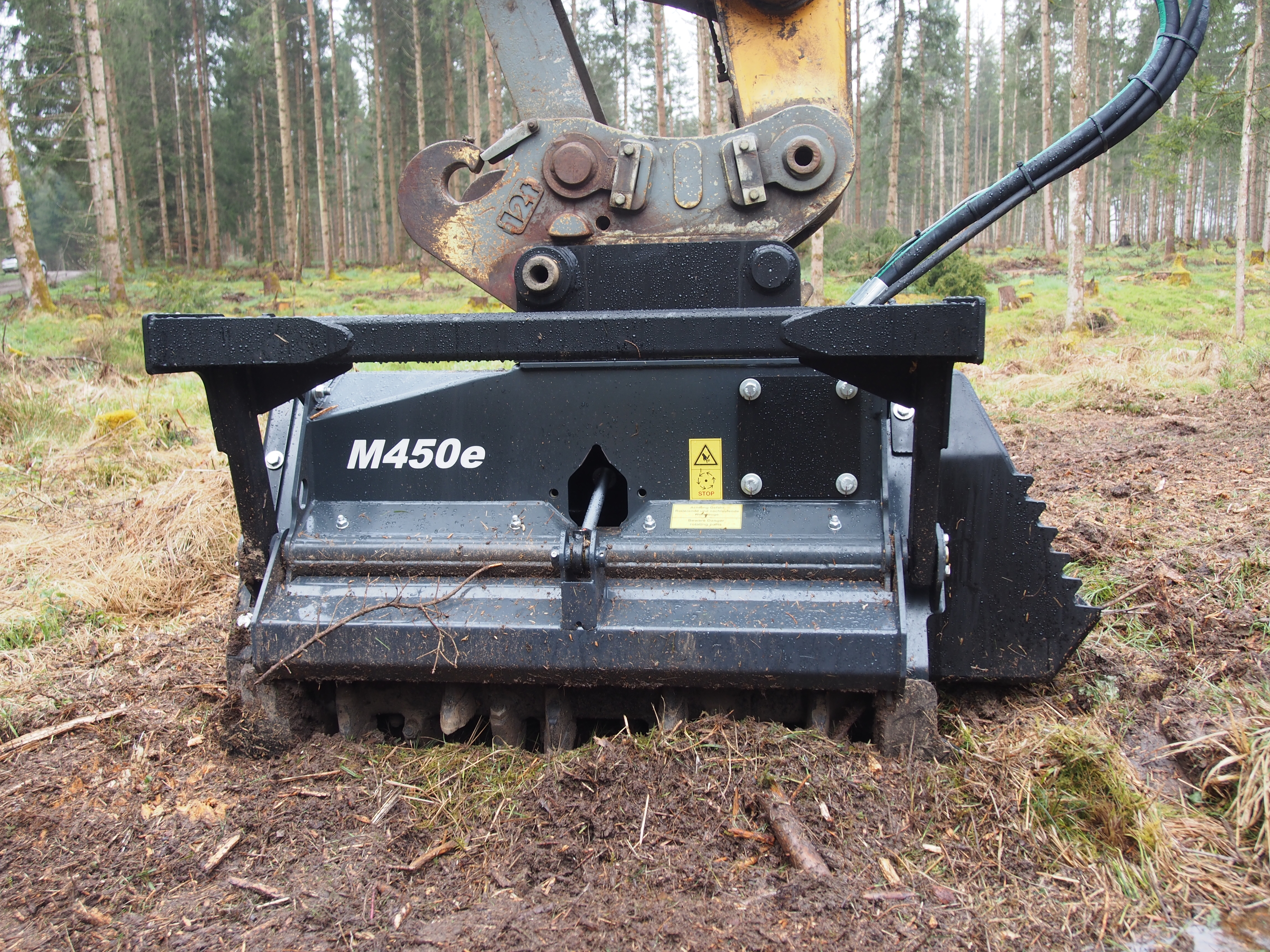

The optional push bar helps to guide the material which has to be mulched. It is fix mounted on the flap side.

Rotor technology with various BCS- or UPTs-tools possible for best mulching result.

Customized interfaces for simple mounting / demounting on various carriers with different options avail¬able.

The low maintenance belt system effectively prevents slippage.

Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.

The chain curtain provides extra protection while mulching.

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.

Technical data

Download (PDF)
  • Working width

    43.3 in
    1,100 mm
  • Total width

    66.1 in
    1,680 mm
  • Weight

    1,896 – 2,205 lbs
    860 - 1,000 kg
  • Rotor diameter

    17.7 in
    450 mm
  • Volume flow

    32 – 58 gpm
    120 – 220 l/min
  • Tools

    24x BCS or 28x UPTs
    24x BCS or 28x UPTs
  • Height (without push bar)

    35.0 in
    890 mm
  • Height (with push bar)

    37.4 in
    950 mm
  • Depth (without flap)

    30.4 in
    773 mm
  • Depth (with flap)

    31.6 in
    802 mm
  • Depth (with flap)

    36.7 in
    932 mm
